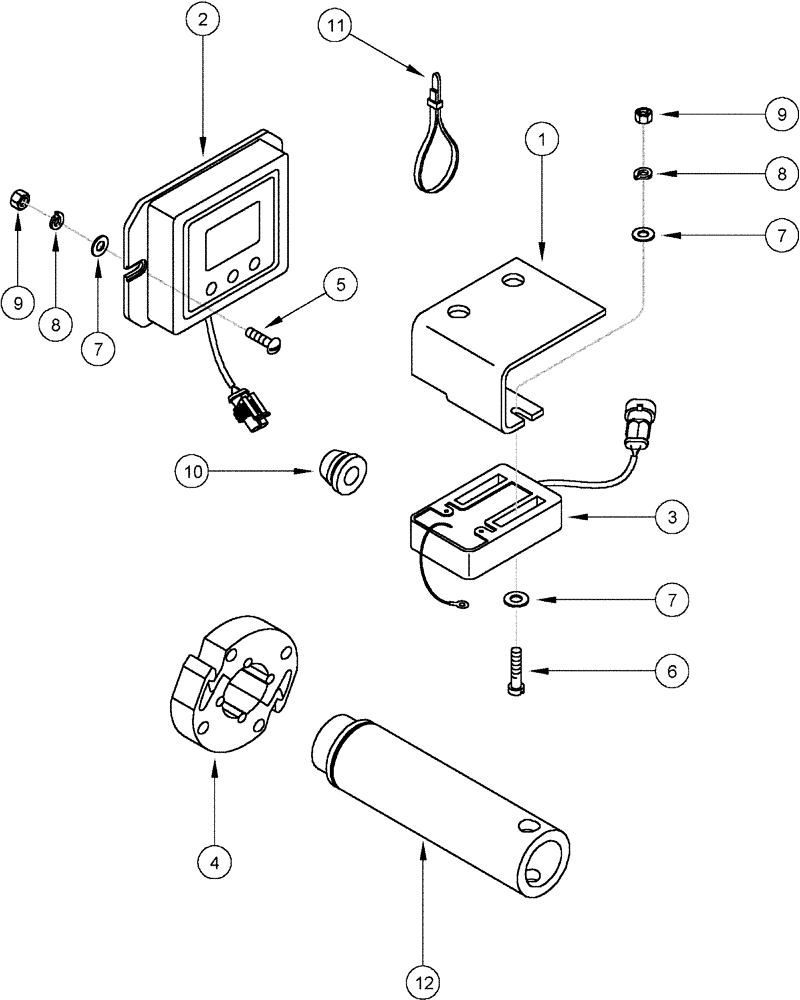

Запчасти Case IH 5300 (9-052) - ELECTRONIC ACRE COUNTER (09) - CHASSIS

0

319361A1

KIT

5300 ACRE COUNTER

1шт.

1

349298A1

BRACKET

sensor mount

1шт.

2

318815A1

COUNTER

acre assy

1шт.

3

318819A2

SENSOR

counter acre reed assy

1шт.

4

318821A2

MAGNET

actuator whl 1 1/8" round

1шт.

5

470-10812

SCREW,Pan HD, #8 - 32 x 3/4"

2шт.

6

470-10820

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

2шт.

7

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

6шт.

8

87812

LOCK WASHER,#8

4шт.

9

225-11108

NUT,#8-32

4шт.

10

182045A1

GROMMET

Split .57 od x .394 id

1шт.

11

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

12

815140C2

SLEEVE

bushing square shaft plain

1шт.
