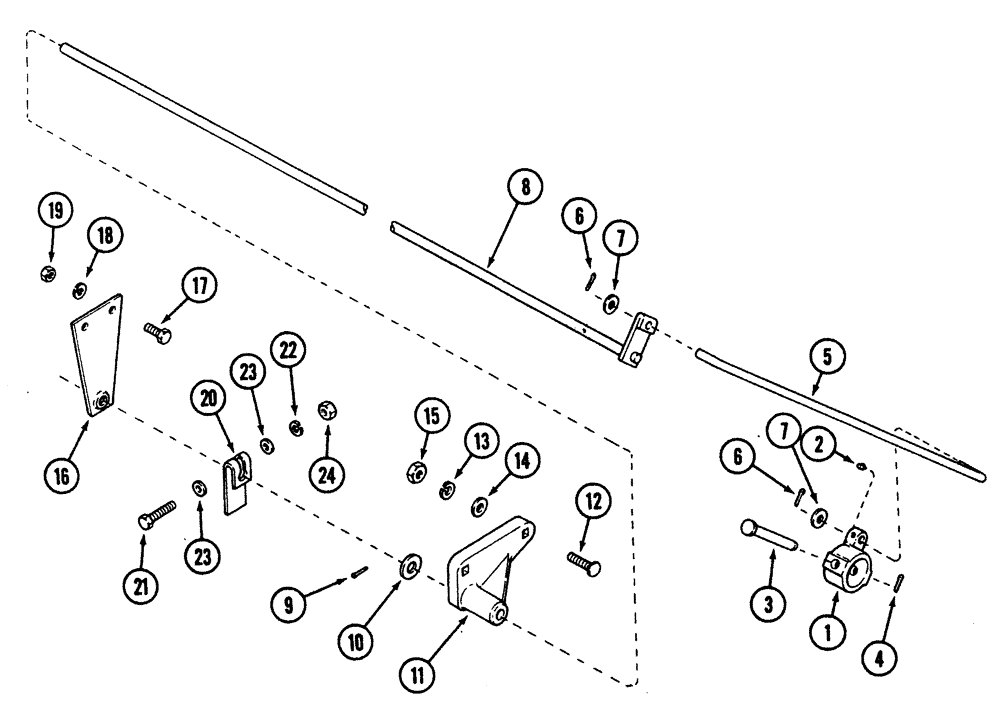

Запчасти Case IH 5300 (9-048) - GRAIN AGITATOR (09) - CHASSIS

1

815779C1

CRANK

agitator

1шт.

2

80719

LUBE NIPPLE,1/8" NPT

1шт.

3

439-1642

HEADED PIN,3/8" x 2 5/8"

1шт.

4

80755

COTTER PIN,1/8" OD x 1" L

1шт.

5

815780C1

ROD

agitator crank

1шт.

6

80755

COTTER PIN,1/8" OD x 1" L

1шт.

7

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

8

NSS

NOT SOLD SEPARAT

ROD Agitator, 98-1/4 inch (13 x 7)

1шт.

Order 815898c1 and cut to length

1шт.

8

NSS

NOT SOLD SEPARAT

ROD Agitator, 118-1/4inch (16 x 7)

1шт.

Order 815898c1 and cut to length

1шт.

8

815898C1

ROD

agitator

1шт.

8

NSS

NOT SOLD SEPARAT

ROD Agitator, 151-1/4 inch (24 x 6, 24 x 7) Order 815781C1 and, Serial Range: cut-length

1шт.

8

815781C1

ROD

agitator

1шт.

9

394818

COTTER PIN,M5 x 25

1шт.

10

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

11

815784C1

BEARING HOUSING

agitator rod

2шт.

12

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

4шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

14

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

15

9628503

NUT,3/8"-16, G5

4шт.

16

815785C1

SUPPORT

agitator rod

2шт.

17

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

80681

LOCK WASHER,5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

4шт.

20

819322C1

FINGER

agitator

1шт.

21

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

22

80682

LOCK WASHER,1/4"

1шт.

23

86624137

WASHER,0.27" ID x 0.5" OD x 0.06" Thk

1шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.
