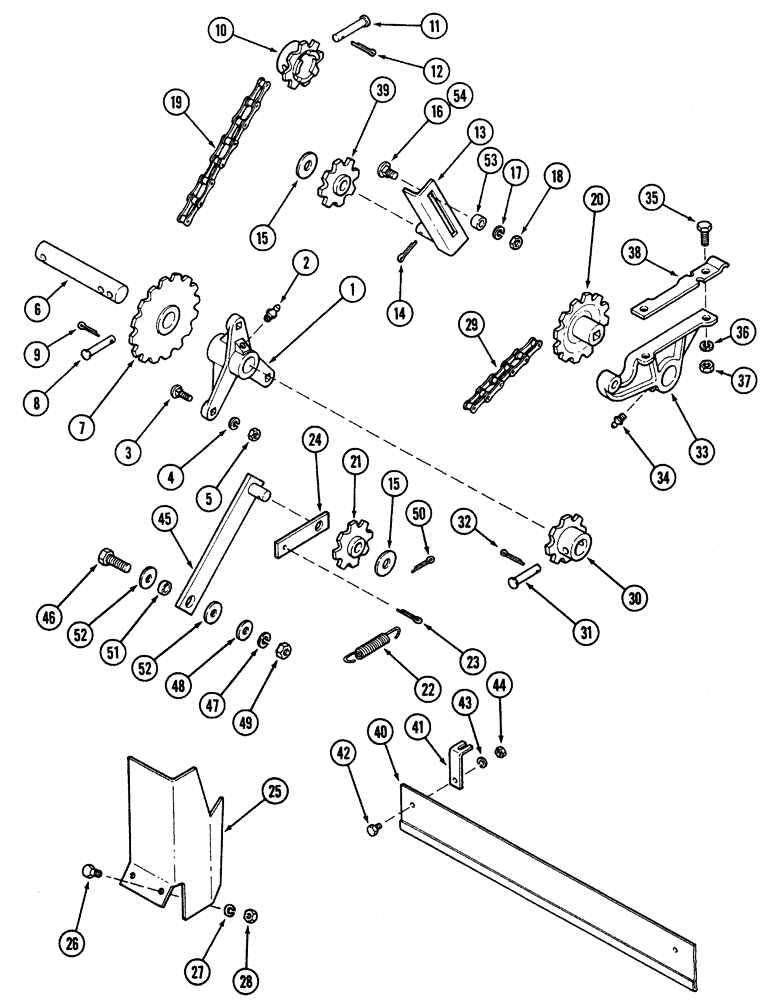

Запчасти Case IH 5300 (9-046) - FERTILIZER DRIVE (09) - CHASSIS

1

815440C1

BEARING HOUSING,1.005" ID x 2.55"

support bearing fert shaft

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

1шт.

3

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

4

80681

LOCK WASHER,5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

815441C1

PIN,25.4mm OD x 161.8mm L

1"od x 6 3/8"lg

1шт.

7

815442C1

DRIVE SPROCKET

16T 1" bore

1шт.

7

815449C1

DRIVE SPROCKET

8T 2 29/32"od 1" bore

1шт.

7

815772C1

DRIVE SPROCKET

FERT JACKSHAFT DRIVEN 32T

1шт.

8

439-5530

HEADED PIN,5/16" x 1 7/8"

1шт.

9

80756

COTTER PIN,1/8" x 3/4"

1шт.

10

815141C1

DRIVE SPROCKET

8T fertilizer

1шт.

10

815771C1

DRIVE SPROCKET

16 tooth

1шт.

11

U5356

HEADED PIN,9.53mm OD x 57.15mm L

1шт.

12

80755

COTTER PIN,1/8" OD x 1" L

1шт.

13

815443C2

BRACKET

chain tightener LH

1шт.

13

815444C2

BRACKET

chain tightener RH

1шт.

14

394818

COTTER PIN,M5 x 25

1шт.

15

495-81026

WASHER,21/32" x 1 1/2" x .060"

1шт.

16

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

18

9628503

NUT,3/8"-16, G5

1шт.

19

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, Fertilizer Feed Shaft Drive (1 Per Fertilizer Drive)

1шт.

Use 25 links of no. 2050 chain and 1 offset link 457114R91 and 1 connecting link 1277928C91.

1шт.

20

815454C1

DRIVE SPROCKET

12T 4 3/16"od

1шт.

21

819458C1

DRIVE SPROCKET

8 tooth, plastic

1шт.

22

4A

SPRING

E .08 wire .644 OD 3.63

1шт.

23

394818

COTTER PIN,M5 x 25

1шт.

24

815461C1

BAR

return spring anchor

1шт.

25

816763C1

SHIELD

FERTILIZER DRIVE LH

1шт.

Drills with 20" wheels for England.

1шт.

25

816885C1

SHIELD

FERTILIZER DRIVE RH

1шт.

Drills with 20" wheels for England.

1шт.

25

843205C1

SHIELD

FERTILIZER DRIVE LH

1шт.

Drills with 28" wheels for England.

1шт.

25

843206C1

SHIELD

FERTILIZER DRIVE RH

1шт.

Drills with 28" wheels for England.

1шт.

26

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

27

80681

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

1шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY Jackshaft Drive, Regular Drive Speed, 8 Tooth Drive Sprocket To 16 Tooth Driven

1шт.

Use 34 links of no. 2050 chain and 1 offset link 457114R91 and 2 connecting links 1277928C91.

1шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - JACKSHAFT DRIVE, REGULAR DRIVE SPEED, 8 TOOTH DRIVE SPROCKET TO 8 TOOTH DRIVEN

1шт.

Use 31 links of no. 2050 chain and 1 offset link 457114R91 and 2 connecting links 1277928C91.

1шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - JACKSHAFT DRIVE, REGULAR DRIVE SPEED, 8 TOOTH DRIVE SPROCKET TO 32TOOTH DRIVEN

1шт.

Use 43 links of no. 2050 chain and 1 offset link 457114R91 and 3 connecting links 1277928C91.

1шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - JACKSHAFT DRIVE, REGULAR DRIVE SPEED, 16 TOOTH DRIVE SPROCKET TO 16 TOOTH DRIVEN

1шт.

Use 38 links of no. 2050 chain and 1 offset link 457114R91 and 2 connecting links 1277928C91.

1шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - JACKSHAFT DRIVE, REGULAR DRIVE SPEED, 16 TOOTH DRIVE SPROCKET TO 32 TOOTH DRIVEN

1шт.

Use 47 links of no. 2050 chain and 1 offset link 457114R91 and 2 connecting links 1277928C91.

1шт.

29

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - JACKSHAFT DRIVE, REGULAR DRIVE SPEED, 16 TOOTH DRIVE SPROCKET TO 8 TOOTH DRIVEN

1шт.

Use 34 links of no. 2050 chain and 1 offset link 457114R91 and 2 connecting links 1277928C91.

1шт.

30

815449C1

DRIVE SPROCKET

8T 2 29/32"od 1" bore

1шт.

31

439-5530

HEADED PIN,5/16" x 1 7/8"

1шт.

32

80756

COTTER PIN,1/8" x 3/4"

1шт.

33

815450C1

BRACKET

support fert feed drive LH

1шт.

33

815451C1

BRACKET

support fert feed drive RH

1шт.

34

87414

LUBE NIPPLE,1/4" - 28

1шт.

35

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

37

9628503

NUT,3/8"-16, G5

1шт.

38

815453C1

HINGE

bracket RH

1шт.

39

819458C1

DRIVE SPROCKET

8 tooth, plastic

1шт.

40

816880C1

SHIELD

FERTILIZER FEED 16 X 7

1шт.

40

818031C1

SHIELD

FERTILIZER FEED 13 X 7

1шт.

40

816881C1

SHIELD

Fertilizer Feed, 65-45/64 inch (21 x 7), Left Hand

1шт.

40

816882C1

SHIELD

Fertilizer Feed, 72-39/64 inch (21 x 7), Right Hand

1шт.

40

843271C1

SHIELD

FERTILIZER FEED 24X6

2шт.

40

841046C1

SHIELD

FERT FEED

2шт.

For drills used in England.

1шт.

41

816879C1

SUPPORT

FERT FEED SHIELD

1шт.

For drills used in England.

1шт.

42

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1шт.

43

80682

LOCK WASHER,1/4"

1шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

45

816988C1

BRACKET

fertilizer chain tightener

1шт.

46

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

48

495-81026

WASHER,21/32" x 1 1/2" x .060"

1шт.

49

280431

NUT,1/2"-13, G5

1шт.

50

394818

COTTER PIN,M5 x 25

1шт.

51

612380R1

SPACER

bushing 33/64"id x 3/4"od 5/16"

1шт.

52

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

53

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

4шт.

For use with two drill hitch.

1шт.

54

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

4шт.
