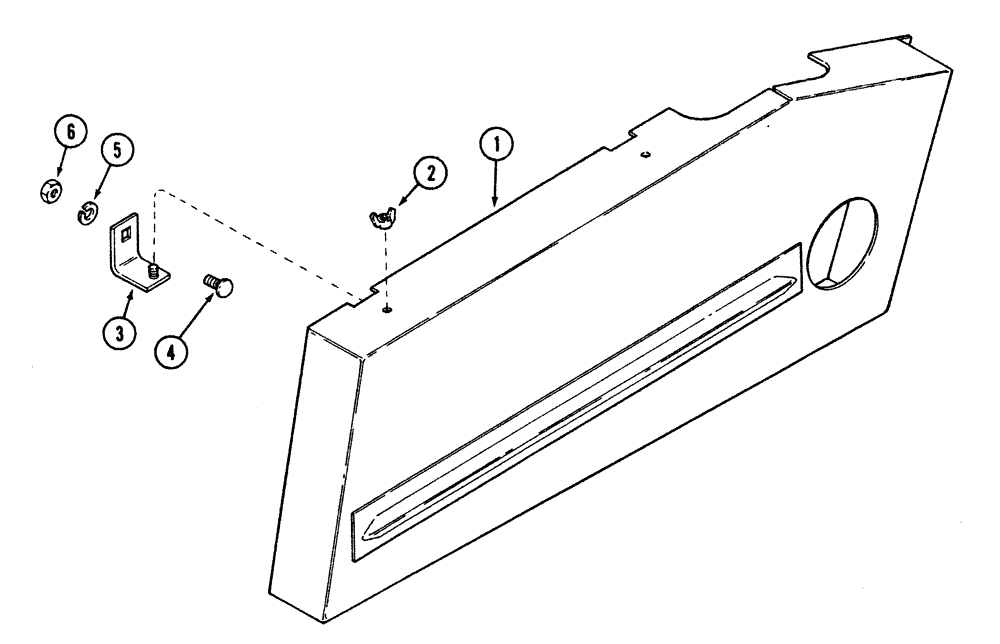

Запчасти Case IH 5300 (9-044) - MAIN DRIVE SHIELD (09) - CHASSIS

1

815145C1

SHIELD

assembly LH

1шт.

One used per left drive with 15 and 20 inch wheels

1шт.

1

843119C1

SHIELD

ASSY, DRIVE LH

1шт.

One used per left drive with 20 and 28 inch wheels

1шт.

1

815146C1

SHIELD

assembly RH

1шт.

One used per right drive with 20 inch wheels

1шт.

1

843120C1

SHIELD

ASSY, DRIVE RH

1шт.

One used per right drive with 20 and 28 inch wheels

1шт.

2

80801

WING NUT

5/16"-18

2шт.

3

815151C1

SUPPORT

angle assembly

2шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

6

9628503

NUT,3/8"-16, G5

2шт.
