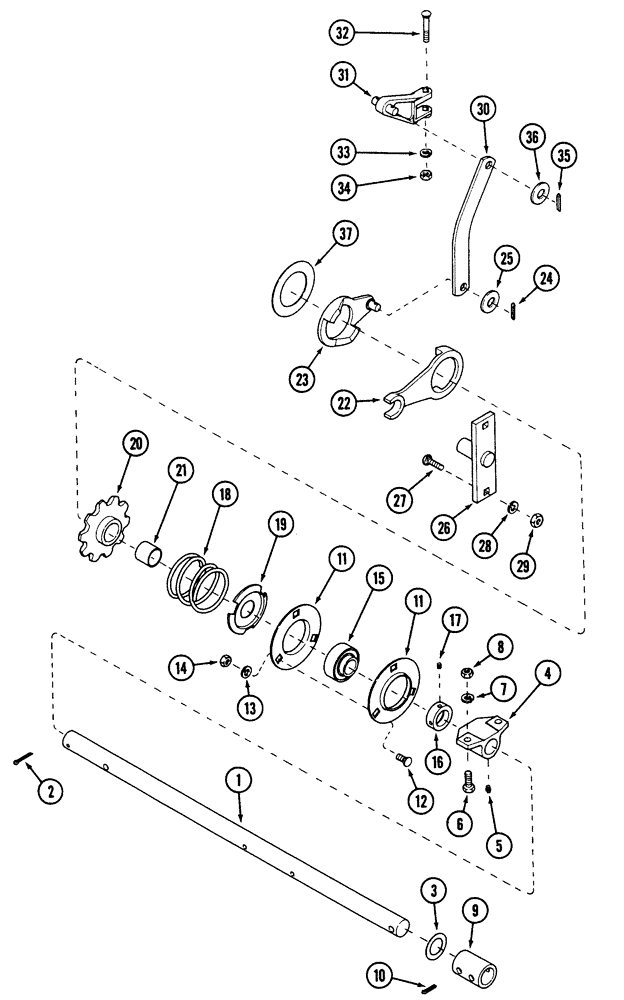

Запчасти Case IH 5300 (9-042) - GRAIN DRIVE (09) - CHASSIS

1

815116C2

ROD

CLUTCH/POWER LIFT CTSHAFT

1шт.

1

815117C2

ROD

CLUTCH/POWER LIFT CTSHAFT

1шт.

1

815118C2

ROD

countershaft 1 1/8"od x 46 13/16"

2шт.

1

815120C2

SHAFT

rod, clutch

2шт.

1

818099C1

ROD

clutch/power lift countershaft LH

1шт.

1

815118C2

ROD

countershaft 1 1/8"od x 46 13/16"

1шт.

1

818098C2

STEM

countershaft 1 1/8" od x 30 1/2" long

1шт.

1

815119C3

ROD

countershaft 1 1/8"od x 30 1/2"

1шт.

2

88182

COTTER PIN,1/4" OD x 2" L

1шт.

3

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

1шт.

4

815122C1

BRACKET

support - countershaft

1шт.

5

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

8

9628503

NUT,3/8"-16, G5

1шт.

9

91100C1

SPACER

lift crank 1 3/4" od x 1 1/16" id

2шт.

10

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

bearing stl

4шт.

12

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

14

9628503

NUT,3/8"-16, G5

6шт.

15

455960R92

BEARING, BALL,1.1255" ID x 2.4409" OD x 0.9375"

1.125 Bore NTN #AEL206-102LLCW8

2шт.

16

557115R11

COLLAR

Bearing For AEL206-1 1/8LLCW3

2шт.

17

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

1шт.

18

815124C1

SPRING

C 3/16"wr 3 5/32"od 2 5/32"

2шт.

19

815123C1

THRUST WASHER,68.58mm ID x 82.55mm OD x 1.52mm Thk

clutch spring

2шт.

20

815125C11

DRIVEN SPROCKET

clutch LH

1шт.

20

815126C11

DRIVE SPROCKET

clutch RH

1шт.

21

815127C1

BUSHING

clutch sprocket 1 1/8"id x 1 1/4"od

1шт.

22

815128C1

CAM

fixed LH

1шт.

22

815129C1

CAM

fixed RH

1шт.

23

815130C1

CAM

rotational LH

1шт.

23

815131C1

CAM

rotational RH

1шт.

24

80756

COTTER PIN,1/8" x 3/4"

2шт.

25

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

26

815133C1

SUPPORT

bracket

2шт.

27

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

29

9628503

NUT,3/8"-16, G5

4шт.

30

815136C1

SUPPORT

arm clutch actuating

2шт.

31

815137C1

ARM

shifter clutch

2шт.

32

280631

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

2шт.

33

80681

LOCK WASHER,5/16"

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

2шт.

35

80756

COTTER PIN,1/8" x 3/4"

2шт.

36

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

37

815132C1

WASHER,60.45mm ID x 95.25mm OD x 1.9mm Thk

2 3/8"id x 3 3/4"

2шт.
