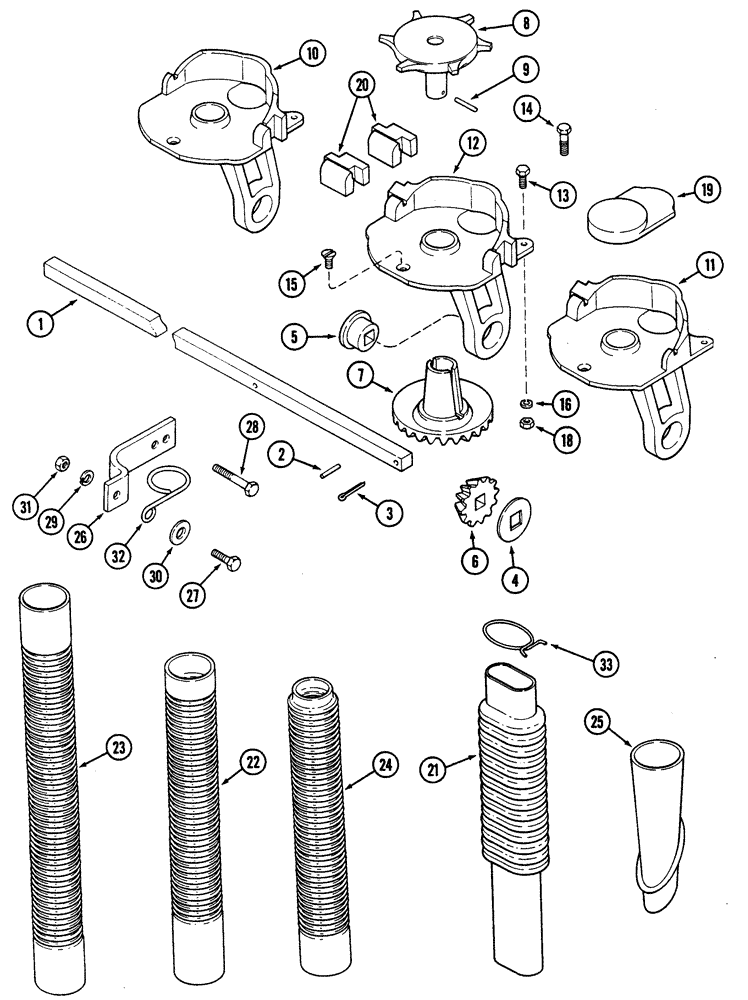

Запчасти Case IH 5300 (9-040) - FERTILIZER FEED (09) - CHASSIS

1

NSS

NOT SOLD SEPARAT

BAR Fertilizer Feed Shaft, 92-37/64 inch (13 x 7)

1шт.

For service order 815383C1 and cut to length

1шт.

1

815383C1

BAR

FERTILIZER FEED SHAFT

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft Square, .563 x 63.9 YZD (18 x 7 and 20 x 6)

1шт.

For service order 815383C1 and cut to length

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft Square, .563 x 69.7 YZD (21 x 7)

1шт.

For service order 815383C1 and cut to length

1шт.

1

NSS

NOT SOLD SEPARAT

BAR Fertilizer Feed Shaft, 63-29/32 inch, LEFT (16 x 8)

1шт.

For service order 815383C1 and cut to length

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft Square, .563 x 73.5 YZD (24 x 6)

1шт.

For service order 815383C1 and cut to length

1шт.

1

815389C1

BAR

FERTILIZER FEED SHAFT RH

1шт.

1

NSS

NOT SOLD SEPARAT

BAR Fertilizer Feed Shaft, 78-21/32 inch, Left (20 x 8 and 16 x 10)

1шт.

For service order 815383C1 and cut to length

1шт.

1

816714C1

SHAFT

square 9/16" x 73" long

1шт.

1

815385C1

BAR

shaft square 9/16" x 60 5/16"

1шт.

1

815387C1

GEAR SHAFT

square 9/16" x 70"

1шт.

2

438-31216

PIN,3/16" x 1", Coiled

1шт.

3

394818

COTTER PIN,M5 x 25

1шт.

4

498-81011

SQ HOLE WASHER,19/32" x 1 1/4" x .040", Sq Hole

1шт.

5

603462R1

TRUNNION

bushing bevel pinion

1шт.

6

603463R2

GEAR

pinion bevel 12T

1шт.

7

F282C

GEAR

mitre 25 tooth

1шт.

8

602554R1

WHEEL

fert feed

1шт.

9

N62414

PIN,3.96mm OD x 28mm L

star feed

1шт.

10

603451R3

PLATE

housing fert feed LH

1шт.

11

603452R3

PLATE

housing fert feed RH

1шт.

12

603453R3

LARGE PLATE

PLATE, LARGE housing fert feed

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

14

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

15

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

1шт.

16

80682

LOCK WASHER,1/4"

1шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

19

603593R1

BLOCK

VALVE, SHUT-OFF FERT FEED

1шт.

20

603457R1

SPACER

poly natural color

1шт.

20

815390C1

SPACER

low density poly

18шт.

20

815391C1

BLOCK

SPACER, BOTTOM PLATE

1шт.

20

605153R1

SHIM

Bottom Plate (16 x 10)

14шт.

20

816715C1

SPACER

bottom plate, 21 x 7

19шт.

21

819353C2

TUBE

rubber, fertilizer

1шт.

22

603589R3

TUBE

SEPARATE DELIVERY

1шт.

Drills with single disc furrow opener. For basic machines and drills with 20 inch wheel used in England. Tube to have approximately 66 convolutions.

1шт.

23

843204C2

TUBE,42.85 mm ID x 47.6 mm OD

SEPARATE DELIVERY

1шт.

Drills with single disc furrow opener. For drills with 28 inch wheels used in England. Tube to have approximately 72 convolutions.

1шт.

24

594245R2

TUBE

SEPARATE DELIVERY

1шт.

For 13 x 7, 16 x 7, 18 x 7, 21 x 7, 16 x 8 and 20 x 8 used with separate placement fertilizer opener. Tube to have approximately 66 convolutions.

1шт.

25

607289R2

TUBE,1.25" OD, 7" Length

rubber fert seed comb

1шт.

Drills with double disc furrow openers with steel boot. Tube to have approximately 43 convolutions.

1шт.

26

603722R2

BRACKET

DRAG CHAIN

1шт.

Drills With Single Disc Furrow Opener

1шт.

27

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

28

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

29

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

30

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

1шт.

31

9628503

NUT,3/8"-16, G5

1шт.

32

603592R1

SPRING CLIP

FERTILIZER TUBE LOWER

1шт.

Drills With Single Disc Furrow Opener

1шт.

33

603591R1

SPRING

hose spring grip

1шт.
