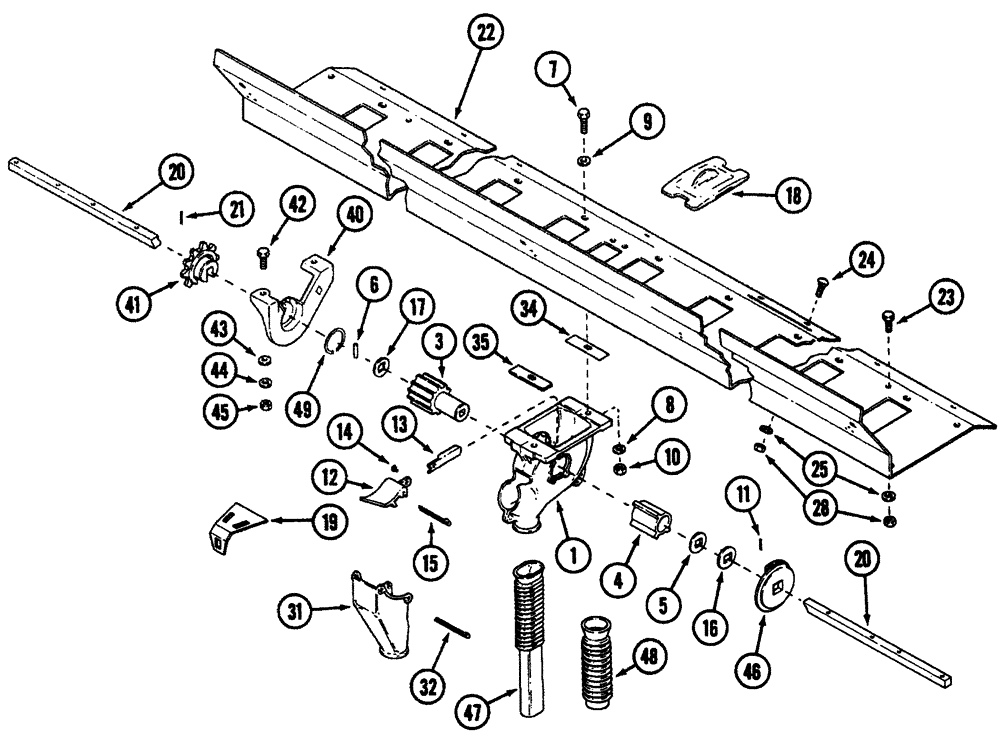

Запчасти Case IH 5300 (9-038) - GRAIN FEED (09) - CHASSIS

0

603816R93

CUP

fluted feed service

1шт.

0

8-27510

INSTRUCTION

card, fluted feed cup

1шт.

1

NSS

NOT SOLD SEPARAT

CUP Feed

1шт.

3

603111R1

ROLLER

fluted

1шт.

4

603112R1

BLOCK

shut off plain

1шт.

5

602106R1

SQ HOLE WASHER

.656 sq id 1.17 pln x .0097 tk

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

3/16" x 1 5/32" long

1шт.

7

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

8

80681

LOCK WASHER,5/16"

1шт.

9

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

394818

COTTER PIN,M5 x 25

1шт.

12

603108R21

BOTTOM

assembly, feed cup dump

1шт.

13

603178R1

LATCH

bracket bottom dump

1шт.

14

449-36

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

15

86523959

COTTER PIN,3/16" x 2 1/2"

1шт.

16

N11720

WASHER

square 21/32" id x 1 1/2" od x 3/32" thick

1шт.

17

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

spring 21/32" sq id

1шт.

18

818335C1

COVER ASSY

GRAIN FEED SHUT OFF

1шт.

19

606034R1

GUARD

WINDSHIELD, GRAIN FEED CUP

1шт.

20

815286C2

BAR

FEED SHAFT

1шт.

13 x 7

1шт.

20

815287C2

BAR

FEED SHAFT

1шт.

16 x 7

1шт.

20

815289C3

BAR

shaft square 5/8" x 63 19/32"

2шт.

18 x 7

1шт.

20

815290C3

SHAFT

square 5/8" x 63 31/32"

2шт.

20 x 6

1шт.

20

815292C3

BAR

shaft square 5/8" x 73 19/32"

2шт.

24 x 6

1шт.

20

815294C3

SHAFT

BAR, FEED

1шт.

16 x 8, left hand

1шт.

20

815295C2

BAR

FEED SHAFT RH

1шт.

16 x 8, right hand

1шт.

20

815296C3

BAR

FEED SHAFT

2шт.

20 x 8

1шт.

20

815298C3

SHAFT

BAR, FEED

1шт.

16 x 10, left hand

1шт.

20

815299C2

BAR

FEED SHAFT RH

1шт.

16 x 10, right hand

1шт.

20

816704C2

SHAFT

square 5/8" x 69 11/16" long

1шт.

21 x 7, left hand

1шт.

20

816705C2

SHAFT

square 5/8" x 76 1/4" long

1шт.

21 x 7, right hand

1шт.

21

394818

COTTER PIN,M5 x 25

1шт.

22

816958C1

BOTTOM

SECTION, GRAIN PARTITION

1шт.

13 x 7

1шт.

22

816959C1

BOTTOM

SECTION, GRAIN PARTITION

1шт.

16 x 7

1шт.

22

816960C1

BOTTOM

grain partition, 18 x 7

1шт.

18 x 7

1шт.

22

816956C1

BOTTOM

grain partition, 20 x 6

1шт.

20 x 6

1шт.

22

816957C1

BOTTOM

grain partition, 24 x 6

1шт.

24 x 6

1шт.

22

816962C1

BOTTOM

SECTION, GRAIN PARTITION

1шт.

16 x 8

1шт.

22

816963C1

BOTTOM

SECTION, GRAIN PARTITION

1шт.

20 x 8

1шт.

22

816964C1

BOTTOM

SECTION, GRAIN PARTITION

1шт.

16 x 10

1шт.

22

816961C1

BOTTOM

grain partition, 21 x 7

1шт.

21 x 7

1шт.

23

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

24

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

28

9628503

NUT,3/8"-16, G5

1шт.

31

815804C1

CUP

receiver feed tube

1шт.

32

432-1248

COTTER PIN,3/16" x 3"

1шт.

34

90987C1

BAR

FEED CUP SPACER FRT

1шт.

35

90988C1

BAR

FEED CUP SPACER RR

1шт.

40

1978908C2

HANGER

sprocket

1шт.

41

1978907C2

DRIVE SPROCKET

10 tooth Use #25 Chain

1шт.

42

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

43

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

1шт.

44

80681

LOCK WASHER,5/16"

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

1шт.

46

604420R1

GEAR

ACREAGE COUNTER WORM

1шт.

47

819354C1

TUBE

rubber, grain

1шт.

Use with double disc furrow opener

1шт.

48

606146R2

TUBE,1.25" ID, 1.906" OD, 44, 9" Length

GRAIN SEED

1шт.

Use with single disc furrow opener

1шт.

49

100-28131

SNAP RING,1.312", Int, #131

1шт.
