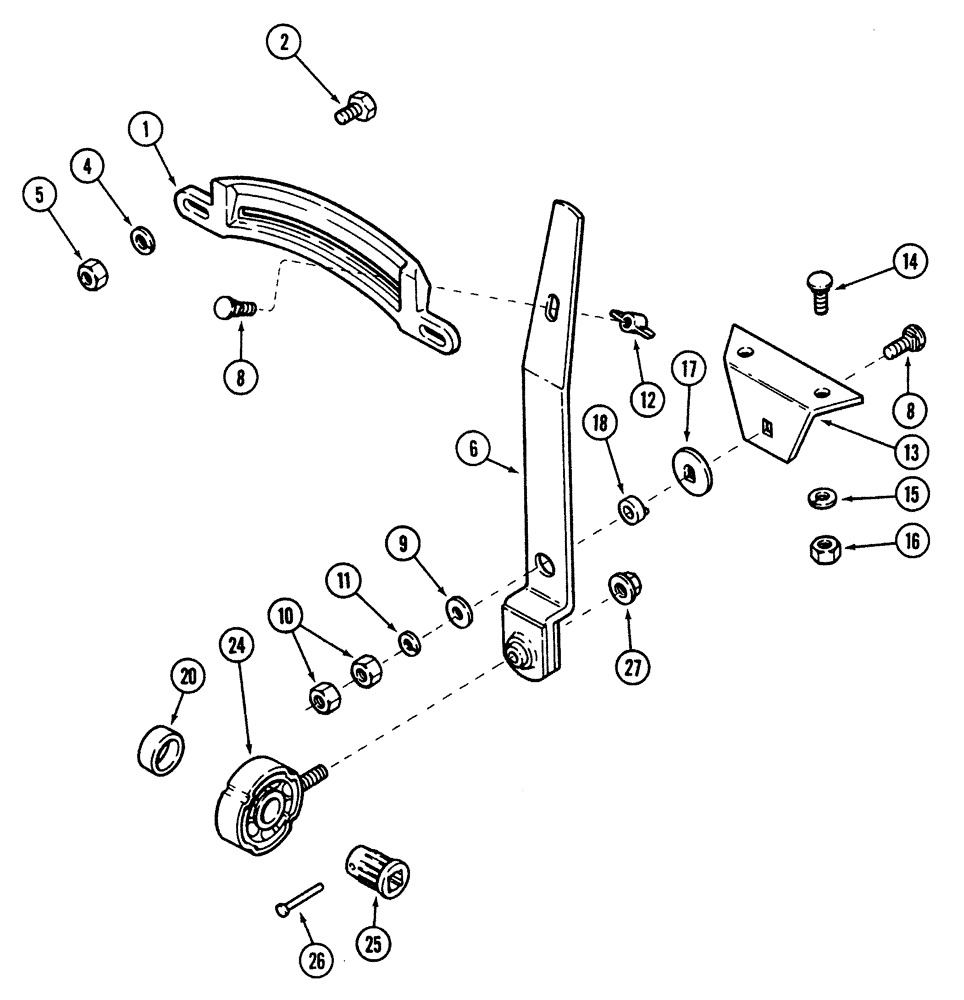

Запчасти Case IH 5300 (9-034) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS

1

603127R1

INDICATOR

rate painted

1шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

4

80681

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

815179C1

LEVER

assembly

1шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

9

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

1шт.

10

86637931

JAM NUT,Jam, 5/16"-18, G5

2шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

12

80801

WING NUT

5/16"-18

1шт.

13

819361C1

BRACKET

shifter lever

1шт.

14

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

16

9628503

NUT,3/8"-16, G5

2шт.

17

819263C1

WASHER

1 5/8" od x .134" thick

1шт.

18

819264C1

BUSHING

11/32 id x 3/4" od x .15" thick

1шт.

20

609389R1

SPACER

1 3/8"od 1 3/16"id

1шт.

24

1279109C91

BEARING ASSY

assy square bore pln feed shifter

1шт.

24

616154R92

BEARING, ROLLER, CYL,16 mm

cylindrical

1шт.

25

1279145C1

SPACER

feed shifter bearing

1шт.

26

438-31220

PIN,3/16" x 1 1/4", Coiled

1шт.

27

88902

NUT,3/8"-16

1шт.
