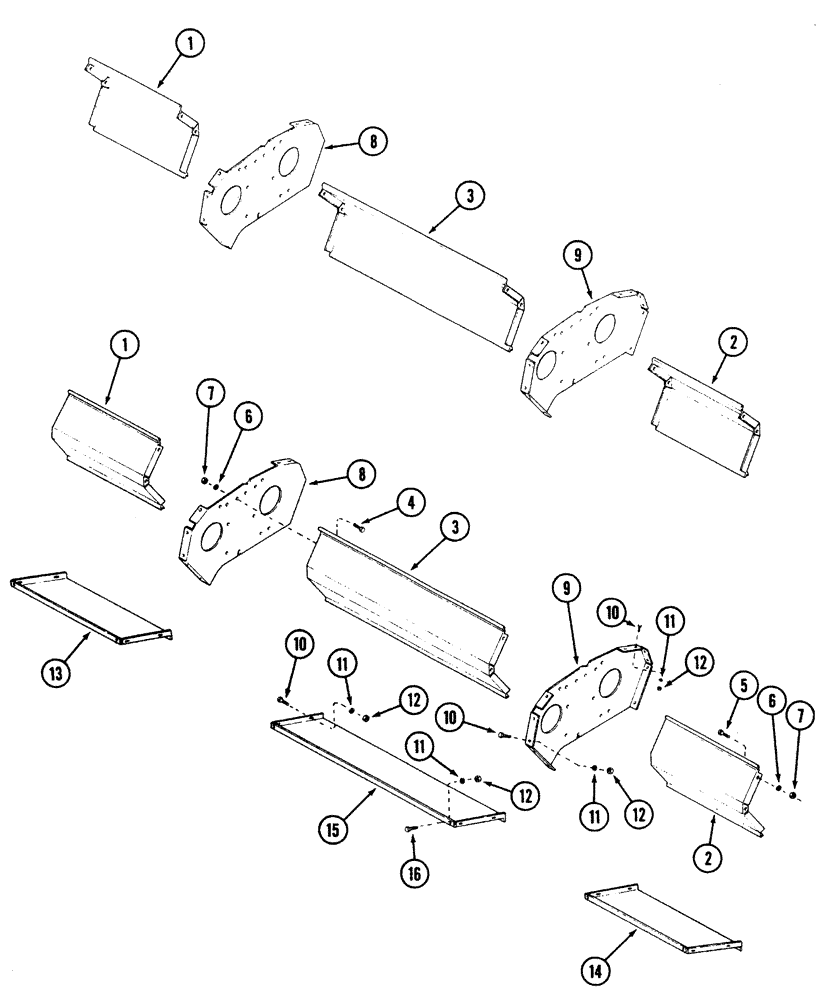

Запчасти Case IH 5300 (9-030) - PARTITION PANELS AND BAFFLES (09) - CHASSIS

1

815853C1

PANEL

FERT PARTITION OUTER LH

1шт.

1

815859C1

PANEL

FERT PARTITION OUTER LH

1шт.

1

815865C1

PANEL

fertilizer partition outer LH

1шт.

1

815871C1

PANEL

fertilizer partition outer RH

1шт.

1

816932C1

PANEL

FERT PARTITION LH

1шт.

2

815854C1

PANEL

FERT PARTITION OUTER RH

1шт.

2

815860C1

PANEL

FERT PARTITION OUTER RH

1шт.

2

815866C1

PANEL

fertilizer partition outer RH

1шт.

2

815872C1

PANEL

fertilizer partition outer LH

1шт.

2

816933C1

PANEL

FERT PARTITION RH

1шт.

3

815881C1

PANEL

fertilizer partition, center

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

16шт.

7

9628503

NUT,3/8"-16, G5

16шт.

8

816954C3

PLATE

hopper LH

1шт.

9

816955C3

PLATE

hopper RH

1шт.

10

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

22шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

22шт.

12

9628503

NUT,3/8"-16, G5

22шт.

13

815814C1

PANEL

GRAIN PARTITION OUTER LH

1шт.

13

815818C2

PANEL

part outer 9.5'

1шт.

13

815822C1

PANEL

grain partition LH

1шт.

13

815826C1

PANEL

Grain Partition

1шт.

13

816930C1

PANEL

GRAIN PARTITION LH

1шт.

14

815815C1

PANEL

GRAIN PARTITION OUTER RH

1шт.

14

815819C2

PANEL

part RH

1шт.

14

815823C1

PANEL

partition RH

1шт.

14

815827C1

PANEL

Grain Partition

1шт.

14

816931C1

PANEL

GRAIN PARTITION RH

1шт.

15

815832C1

PANEL

center partition

1шт.

16

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.
