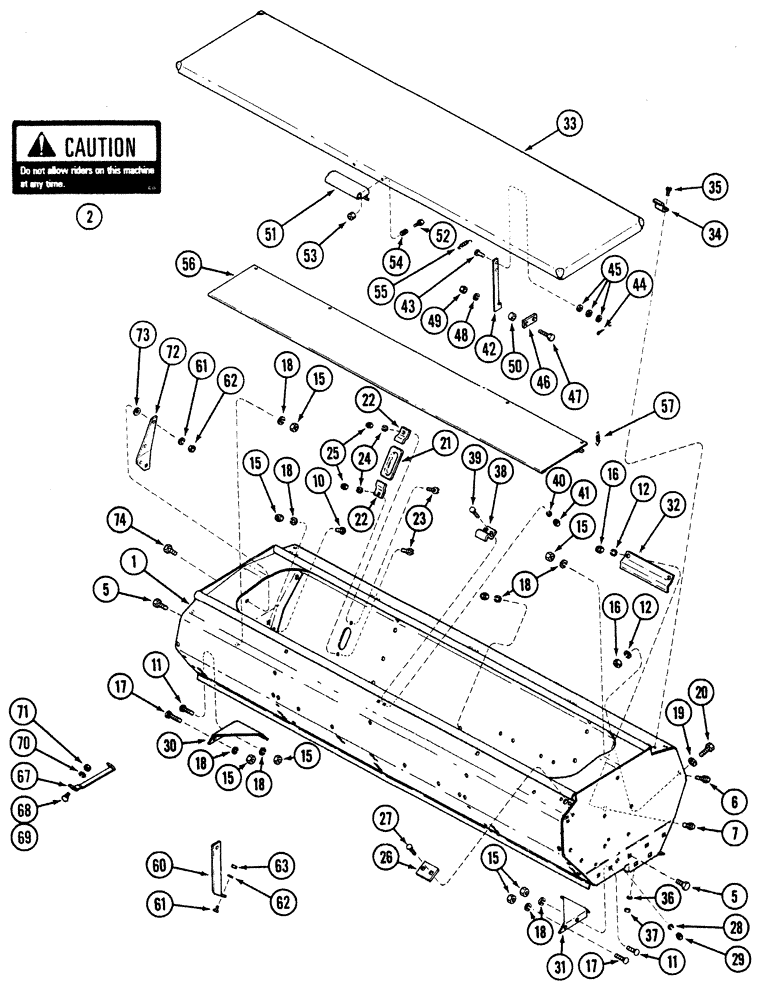

Запчасти Case IH 5300 (9-028) - GRAIN AND FERTILIZER HOPPER, 20X8 AND 16X10 (09) - CHASSIS

1

819061C93

HOPPER

W/PRODUCT GRAPHIC, 13FT. 4IN.

1шт.

2

REF

INSTRUCTION

DECAL Caution

1шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

6

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

7шт.

7

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

6шт.

10

434-68

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1/2", Gr 5

2шт.

11

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

15

9628503

NUT,3/8"-16, G5

22шт.

16

280431

NUT,1/2"-13, G5

6шт.

17

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

22шт.

19

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

20

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

21

1986166C1

GLASS

window seed vision assembly

2шт.

22

604320R1

CLIP

SEED

4шт.

23

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

4шт.

24

80682

LOCK WASHER,1/4"

4шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

26

815115C1

PLATE

bar cover

1шт.

27

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

28

80681

LOCK WASHER,5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

816734C1

PLATE

hopper end LH

1шт.

31

816735C1

PLATE

hopper end RH

1шт.

32

815090C1

REINFORCEMENT

SECTION, STIFFENER-LH

1шт.

32

815091C1

REINFORCEMENT

SECTION, STIFFENER-RH

1шт.

Shown

1шт.

33

815163C1

COVER ASSY

HOPPER

1шт.

34

815173C1

HINGE

bracket grain lid

1шт.

35

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

14шт.

36

80682

LOCK WASHER,1/4"

14шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

14шт.

38

815175C1

CLIP

bracket lid latch

1шт.

39

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

40

80682

LOCK WASHER,1/4"

2шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

42

815176C1

ARM

brace lid prop

2шт.

43

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

2шт.

44

88788

COTTER PIN,3/32" x 1/2"

2шт.

45

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

6шт.

46

815178C1

SPACER

hold lid

2шт.

47

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

48

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

49

9628503

NUT,3/8"-16, G5

4шт.

50

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

4шт.

51

815174C1

LATCH

grain box lid black

1шт.

52

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

53

281010

LOCK NUT,7/8"-14, GC

2шт.

54

N32176

SPRING

C .072" wire x .594" od x 3/4" long

2шт.

55

398304R1

SPRING

E .051 wire .313 OD 2.14

2шт.

56

815844C1

COVER ASSY

FERTILIZER

1шт.

57

815891C1

SPRING

fertilizer cover

4шт.

60

816733C1

SUPPORT

HOPPER INNER

2шт.

61

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

62

80682

LOCK WASHER,1/4"

4шт.

63

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

67

603538R1

BRACKET

Brace hopper

1шт.

68

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

2шт.

69

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

70

80682

LOCK WASHER,1/4"

2шт.

71

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

72

1279326C1

LEDGER PLATE

reinforcing LH

1шт.

72

1279327C1

LEDGER PLATE

reinforcing RH

1шт.

73

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

74

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.
