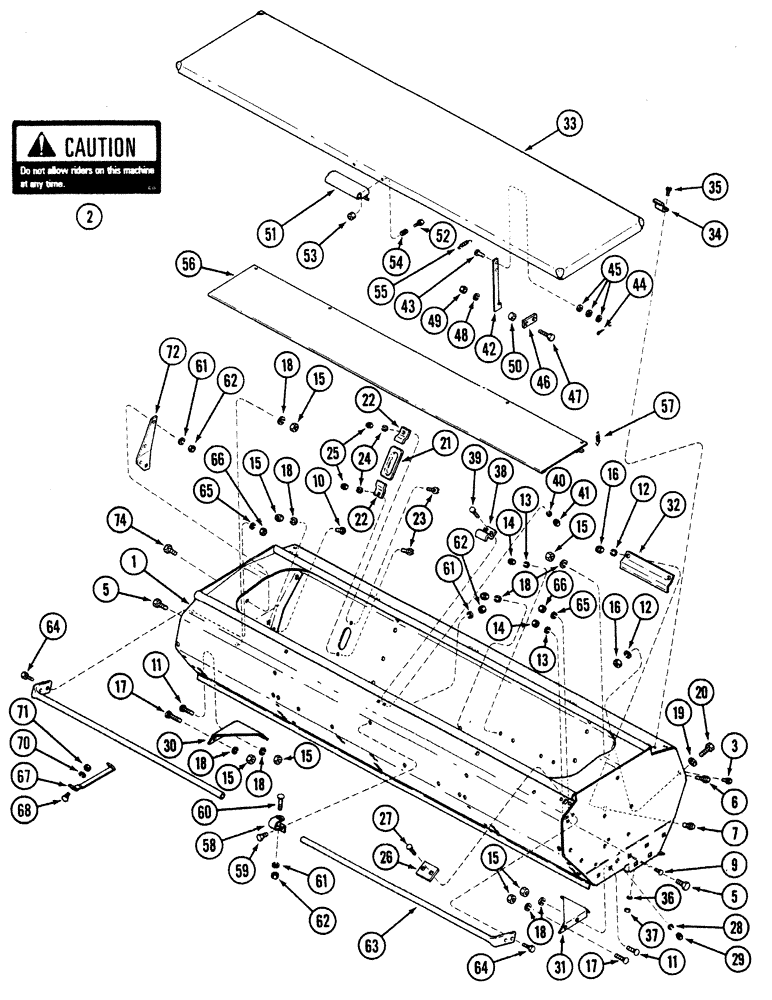

Запчасти Case IH 5300 (9-024) - GRAIN AND FERTILIZER HOPPER, 16X8, 18X7 AND 20X6 (09) - CHASSIS

1

819058C93

HOPPER

W/PRODUCT GRAPHIC, 10FT. 9IN.

1шт.

2

REF

INSTRUCTION

DECAL Caution

1шт.

3

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

28шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

6шт.

9

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

10

434-68

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1/2", Gr 5

2шт.

11

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

80681

LOCK WASHER,5/16"

14шт.

14

9635082

NUT,5/16" - 18, Gr 5

14шт.

15

9628503

NUT,3/8"-16, G5

28шт.

16

280431

NUT,1/2"-13, G5

4шт.

17

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

28шт.

19

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

20

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

21

1986166C1

GLASS

window seed vision assembly

2шт.

22

604320R1

CLIP

SEED

4шт.

23

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

4шт.

24

80682

LOCK WASHER,1/4"

4шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

26

815115C1

PLATE

bar cover

1шт.

27

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

28

80681

LOCK WASHER,5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

816734C1

PLATE

hopper end LH

1шт.

31

816735C1

PLATE

hopper end RH

1шт.

32

815087C1

PLATE

reinforcement hopper axle

2шт.

33

815159C2

COVER

lid 10' 6" hopper

1шт.

34

815173C1

HINGE

bracket grain lid

7шт.

35

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

8шт.

35

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

6шт.

36

80682

LOCK WASHER,1/4"

14шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

14шт.

38

815175C1

CLIP

bracket lid latch

1шт.

39

86511443

BOLT,Hex Serr, 1/4" - 20 x 1", 5SPL, Full Thd

2шт.

40

80682

LOCK WASHER,1/4"

2шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

42

815176C1

ARM

brace lid prop

2шт.

43

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

2шт.

44

88788

COTTER PIN,3/32" x 1/2"

2шт.

45

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

6шт.

46

815178C1

SPACER

hold lid

2шт.

47

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

48

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

49

9628503

NUT,3/8"-16, G5

4шт.

50

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

4шт.

51

815174C1

LATCH

grain box lid black

1шт.

52

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

53

281010

LOCK NUT,7/8"-14, GC

2шт.

54

N32176

SPRING

C .072" wire x .594" od x 3/4" long

2шт.

55

398304R1

SPRING

E .051 wire .313 OD 2.14

2шт.

56

815842C1

COVER

fertilizer 10.5'

1шт.

57

815891C1

SPRING

fertilizer cover

4шт.

58

816764C1

CLAMP

HAND RAIL

2шт.

59

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

60

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

12шт.

61

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

62

9628503

NUT,3/8"-16, G5

6шт.

63

816998C1

TUBE

HAND RAIL

1шт.

63

816999C1

TUBE

HAND RAIL

1шт.

64

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

65

80681

LOCK WASHER,5/16"

4шт.

66

9635082

NUT,5/16" - 18, Gr 5

4шт.

67

603538R1

BRACKET

Brace hopper

1шт.

68

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

2шт.

70

80682

LOCK WASHER,1/4"

2шт.

71

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

72

1279326C1

LEDGER PLATE

reinforcing LH

1шт.

72

1279327C1

LEDGER PLATE

reinforcing RH

1шт.

74

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.
