Запчасти Case IH 5300 (9-020) - GRAIN AND FERTILIZER HOPPER, 13X7 (09) - CHASSIS

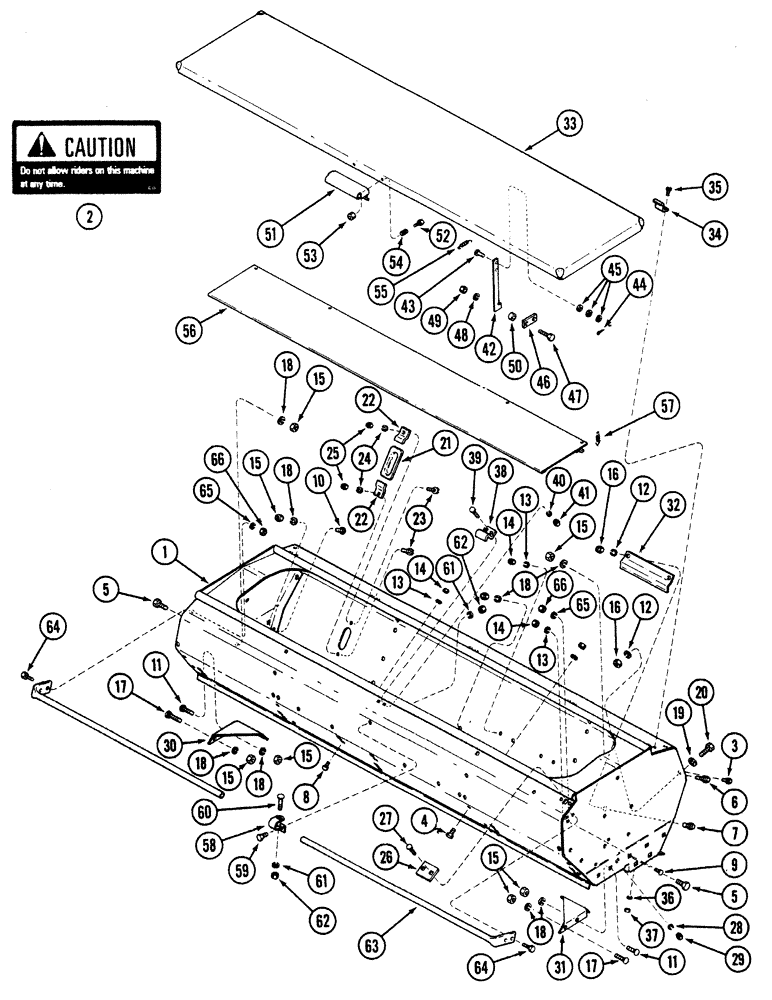

Схема запчастей Case IH 5300 - (9-020) - GRAIN AND FERTILIZER HOPPER, 13X7 (09) - CHASSIS
20
42
1
12
4
15
66
18
54
35
26
8
61
25
47
57
21
41
18
18
60
15
18
5
50
46
34
28
63
59
61
11
43
15
18
13
19
12
22
2
32
17
30
64
37
53
55
58
29
31
16
52
14
64
44
51
5
62
40
49
48
22
36
6
17
3
13
15
23
11
33
56
14
38
65
66
18
7
16
15
24
9
10
62
27
15
65
39
45

Артикул

Название

Примечание

Количество

1

819056C92

HOPPER

W/PRODUCT GRAPHIC, 7FT. 11IN.

1шт.

2

REF

INSTRUCTION

DECAL Caution

1шт.

3

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

6

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

7

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

8

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

9

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

10

434-68

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1/2", Gr 5

2шт.

11

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

80681

LOCK WASHER,5/16"

8шт.

14

9635082

NUT,5/16" - 18, Gr 5

8шт.

15

9628503

NUT,3/8"-16, G5

28шт.

16

280431

NUT,1/2"-13, G5

4шт.

17

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

28шт.

19

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

20

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

21

1986166C1

GLASS

window seed vision assembly

2шт.

22

604320R1

CLIP

SEED

4шт.

23

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

4шт.

24

80682

LOCK WASHER,1/4"

4шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

26

815115C1

PLATE

bar cover

1шт.

27

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

28

80681

LOCK WASHER,5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

816734C1

PLATE

hopper end LH

1шт.

31

816735C1

PLATE

hopper end RH

1шт.

32

815087C1

PLATE

reinforcement hopper axle

2шт.

33

815155C1

COVER ASSY

HOPPER CPT 8 FT

1шт.

34

815173C1

HINGE

bracket grain lid

5шт.

35

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

10шт.

36

80682

LOCK WASHER,1/4"

10шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

10шт.

38

815175C1

CLIP

bracket lid latch

1шт.

39

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

40

80682

LOCK WASHER,1/4"

2шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

42

815176C1

ARM

brace lid prop

1шт.

43

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

1шт.

44

88788

COTTER PIN,3/32" x 1/2"

1шт.

45

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

3шт.

46

815178C1

SPACER

hold lid

1шт.

47

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

48

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

49

9628503

NUT,3/8"-16, G5

2шт.

50

594536R1

BUSHING

3/8"id x 1/2"od x 5/16"lg

2шт.

51

815174C1

LATCH

grain box lid black

1шт.

52

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

53

281010

LOCK NUT,7/8"-14, GC

2шт.

54

N32176

SPRING

C .072" wire x .594" od x 3/4" long

2шт.

55

398304R1

SPRING

E .051 wire .313 OD 2.14

1шт.

56

815840C1

COVER

ASSY, FERTILIZER

1шт.

57

815891C1

SPRING

fertilizer cover

4шт.

58

816764C1

CLAMP

HAND RAIL

1шт.

59

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

60

280661

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

61

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

62

9628503

NUT,3/8"-16, G5

2шт.

63

816998C1

TUBE

HAND RAIL

2шт.

64

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

65

80681

LOCK WASHER,5/16"

4шт.

66

9635082

NUT,5/16" - 18, Gr 5

4шт.

Выбрано товаров: 66
