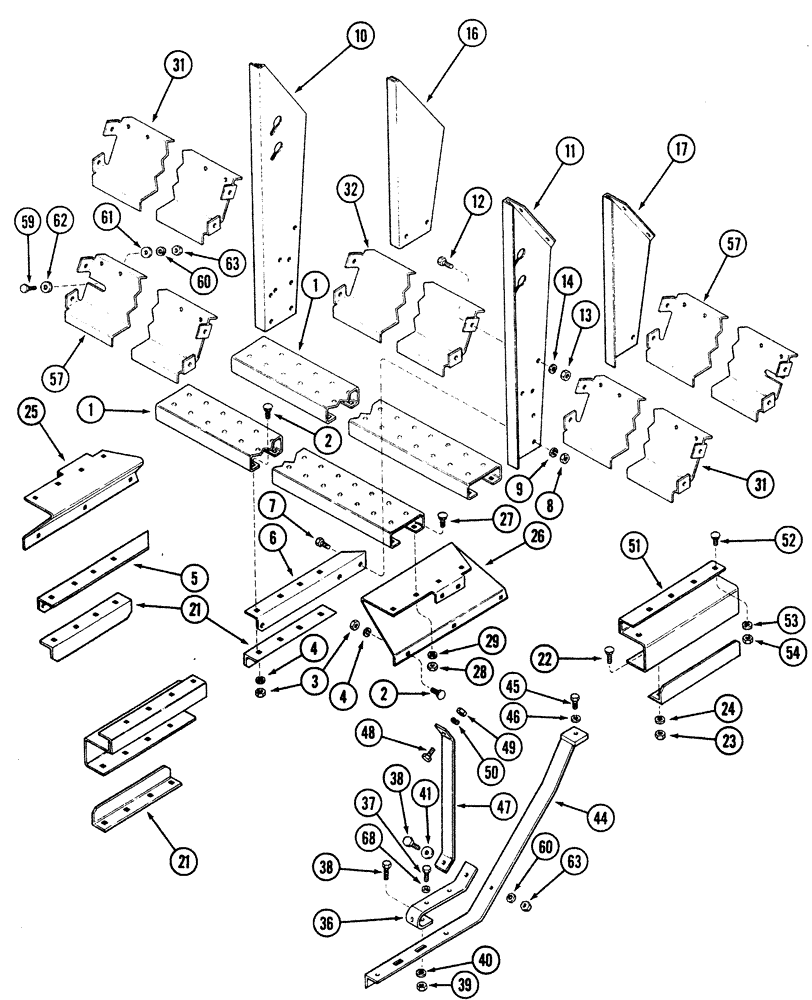

Запчасти Case IH 5300 (9-018) - FOOTBOARD (09) - CHASSIS

1

815104C1

BOARD

section, 13 x 7

2шт.

1

815105C1

BOARD

section, 16 x 7

2шт.

1

815106C1

SUPPORT

SECTION, FOOTBOARD, Serial Range: -CBK0029001

2шт.

1

351137A1

SUPPORT

section footboard 10' 6"

1шт.

1

815107C1

SUPPORT

SECTION, FOOTBOARD, Serial Range: -CBK0029001

2шт.

1

351138A1

SUPPORT

section footboard 12' 6"

1шт.

1

815108C3

SUPPORT

SECTION, FOOTBOARD

2шт.

2

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

16шт.

3

9635082

NUT,5/16" - 18, Gr 5

16шт.

4

80681

LOCK WASHER,5/16"

16шт.

5

815191C1

ANGLE

footboard support LH

1шт.

6

815192C1

ANGLE

footboard support RH

1шт.

7

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

8

9628503

NUT,3/8"-16, G5

4шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

815193C2

BRACKET

FOOTBOARD LH

1шт.

10

843207C1

BRACKET

FOOTBOARD LH

1шт.

Drills with 28" wheels for England.

1шт.

11

815194C2

BRACKET

FOOTBOARD RH

1шт.

11

843208C1

HITCH BRACKET

FOOTBOARD RH

1шт.

Drills with 28" wheels for England.

1шт.

Used with separate placement fertilizer furrow opener, seed firming wheel or gauge press wheel.

1шт.

12

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

13

9628503

NUT,3/8"-16, G5

4шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

16

815757C1

PLATE

BRACKET, FOOTBOARD LH

1шт.

Used with separate placement fertilizer furrow opener, seed firming wheel or gauge press wheel.

1шт.

17

815758C1

PLATE

BRACKET, FOOTBOARD RH

1шт.

Used with separate placement fertilizer furrow opener, seed firming wheel or gauge press wheel.

1шт.

21

815722C1

ANGLE

footboard support

4шт.

Use with low rear mounted grass and brome seed attachment.

1шт.

22

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

23

9635082

NUT,5/16" - 18, Gr 5

12шт.

24

80681

LOCK WASHER,5/16"

12шт.

25

815759C1

SUPPORT

footboard outer LH, special

1шт.

Used with separate placement fertilizer furrow opener, seed firming wheel or gauge press wheel.

1шт.

26

815760C1

SUPPORT

footboard outer RH, special

1шт.

Used with separate placement fertilizer furrow opener, seed firming wheel or gauge press wheel.

1шт.

27

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

10шт.

28

9635082

NUT,5/16" - 18, Gr 5

10шт.

29

80681

LOCK WASHER,5/16"

10шт.

31

816742C1

SHIELD

FOOTBOARD TOE OUTER

2шт.

31

816884C1

SHIELD

FOOTBOARD TOE OUTER

2шт.

31

818000C1

SHIELD

TOE OUTER

2шт.

31

819038C1

SHIELD

FOOTBOARD TOE OUTER

2шт.

Drills with 20" wheels for England.

1шт.

32

816743C1

SHIELD

FOOTBOARD TOE CENTER

1шт.

For drills used in England.

1шт.

36

815721C2

SUPPORT

grass box

2шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

39

9628503

NUT,3/8"-16, G5

4шт.

40

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

41

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

44

815717C1

SUPPORT

intermediate

2шт.

45

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

46

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

47

815720C1

BRACKET

Brace hopper support

2шт.

48

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

49

9628503

NUT,3/8"-16, G5

2шт.

50

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

51

843225C1

SUPPORT ASSY.

FOOTBOARD LH

1шт.

51

843226C1

SUPPORT ASSY.

FOOTBOARD RH

1шт.

52

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

53

80681

LOCK WASHER,5/16"

8шт.

54

9635082

NUT,5/16" - 18, Gr 5

8шт.

57

843239C1

SHIELD

FOOTBOARD TOE OUTER LH 13 X 7

1шт.

57

843240C1

SHIELD

FOOTBOARD TOE OUTER RH 13 X 7

1шт.

57

843235C1

SHIELD

FOOTBOARD TOE OUTER LH 16 X 7

1шт.

57

843236C1

SHIELD

FOOTBOARD TOE OUTER RH 16 X 7

1шт.

57

843237C1

SHIELD

TOE OUTER LH 20 X 6

1шт.

57

843238C1

SHIELD

FOOTBOARD TOE OUTER RH 20 X 6

1шт.

59

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

60

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

61

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

62

495-81137

WASHER,13/32" x 1" x .224"

2шт.

63

9628503

NUT,3/8"-16, G5

8шт.

68

85960R1

WASHER

13/32" id x 3/4" od x 1/4" thick

4шт.
