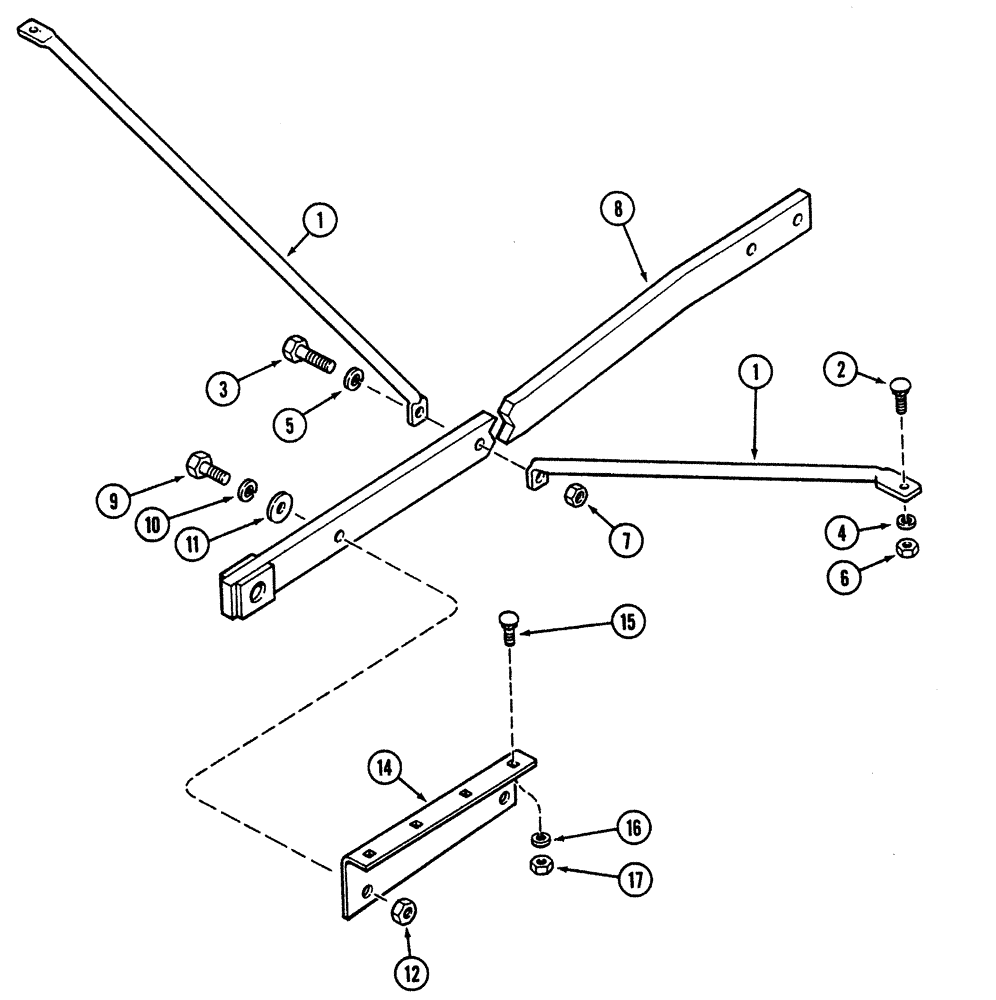

Запчасти Case IH 5300 (9-016) - TRAILING HITCH (09) - CHASSIS

1

815714C1

ROD

drawbar brace

2шт.

2

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

4

80681

LOCK WASHER,5/16"

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

280431

NUT,1/2"-13, G5

1шт.

8

815710C2

DRAWBAR

trailing hitch

1шт.

9

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

495-81024

WASHER,17/32" x 1 1/4" x .060"

4шт.

12

280431

NUT,1/2"-13, G5

4шт.

14

815713C1

ANGLE

support, trail hitch

1шт.

Used with low mounted footboards, basic drills, and for drills with 20 inch wheels for England.

1шт.

14

843210C1

ANGLE BAR

DRAWBAR SUPPORT

1шт.

Used with low mounted footboards and for drills with 28 inch wheels for England.

1шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

16

80681

LOCK WASHER,5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.
