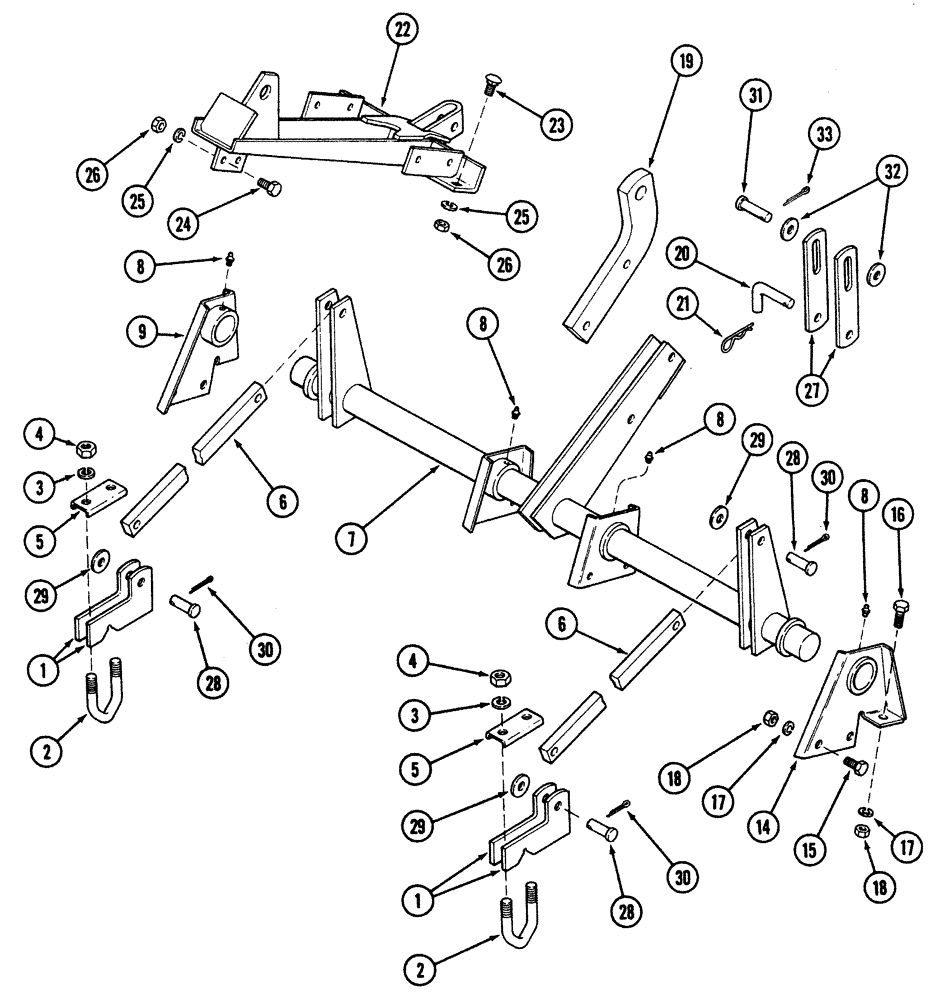

Запчасти Case IH 5300 (9-014) - TWO DRILL HITCH, HYDRAULIC LIFT ARM (09) - CHASSIS

1

1277750C1

ARM, LIFT

ROCKSHAFT

4шт.

2

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

V 5/8" 1 5/8"w 3 9/16"

2шт.

3

12034871

WASHER

5/8"

4шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

5

603393R1

CHANNEL

lift arm clamping

2шт.

6

817295C1

BAR

LIFT CONNECTING FRONT

2шт.

7

1277744C1

HYD ROCKSHAFT

ASSY, LIFT

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

4шт.

9

1277752C1

HITCH BRACKET

ASSY, ROCKSHAFT-OUTER LEFT

1шт.

14

1277753C1

HITCH BRACKET

ASSY, ROCKSHAFT-OUTER RIGHT

1шт.

15

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

16

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

18

280431

NUT,1/2"-13, G5

6шт.

19

1277751C1

BAR

HYDRAULIC CYLINDER LIFT ARM

1шт.

20

600829R2

ROD

CYLINDER LOCK

1шт.

21

87327559

COTTER PIN

9/64" x 2 15/16"

1шт.

22

1277756C1

SUPPORT ASSY.

HYD. LIFT

1шт.

23

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

3шт.

24

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

7шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

26

280431

NUT,1/2"-13, G5

10шт.

27

1277749C1

BAR

LOCK-OUT

2шт.

28

427-10161

CLEVIS PIN,15.88mm OD x 40.89mm L

4шт.

29

495-81026

WASHER,21/32" x 1 1/2" x .060"

4шт.

30

80755

COTTER PIN,1/8" OD x 1" L

4шт.

31

27-10271

CLEVIS PIN,5/8" x 2.715"

1шт.

32

495-81027

WASHER,21/32" x 1 1/2" x .120"

2шт.

33

80755

COTTER PIN,1/8" OD x 1" L

1шт.
