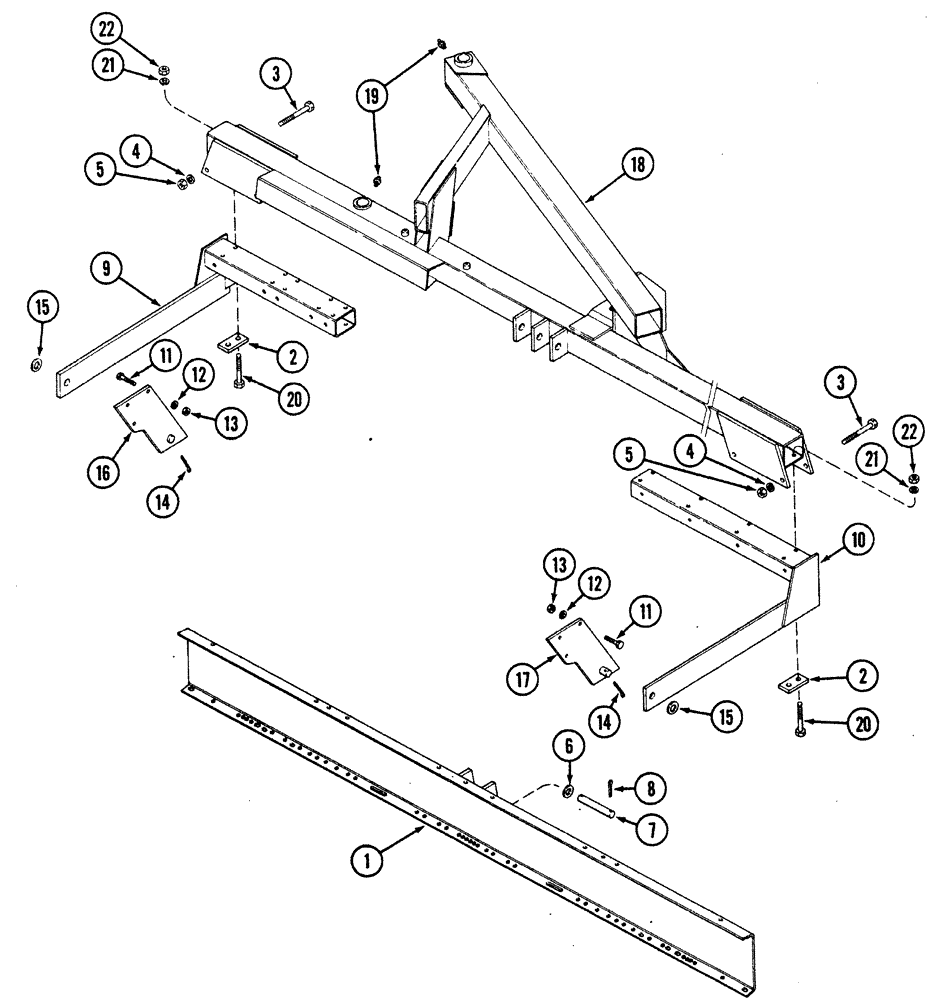

Запчасти Case IH 5300 (9-008) - TWO DRILL HITCH, FRAME SUPPORTS AND BEAM (09) - CHASSIS

1

840946C2

REINFORCEMENT

ASSY, FRAME FRONT XMBR

1шт.

2

843186C1

KNIFE WEAR PLATE

BAR, SUPPORT TUBE REINFORCING

4шт.

3

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

4

12034871

WASHER

5/8"

4шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

6

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

1шт.

7

843183C1

PIN,25.4mm OD x 155mm L

BEAM

1шт.

8

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

9

840990C1

SUPPORT

ASSY, HITCH LH

1шт.

10

840995C1

SUPPORT

ASSY, HITCH RH

1шт.

11

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

13

280431

NUT,1/2"-13, G5

6шт.

14

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

15

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

2шт.

16

840980C1

SUPPORT

ASSY, HITCH OUTER LH

1шт.

17

840981C1

SUPPORT

ASSY, HITCH OUTER RH

1шт.

18

817649C1

BEAM ASSY.

TWO DRILL HITCH

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

8шт.

21

12034871

WASHER

5/8"

8шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.
