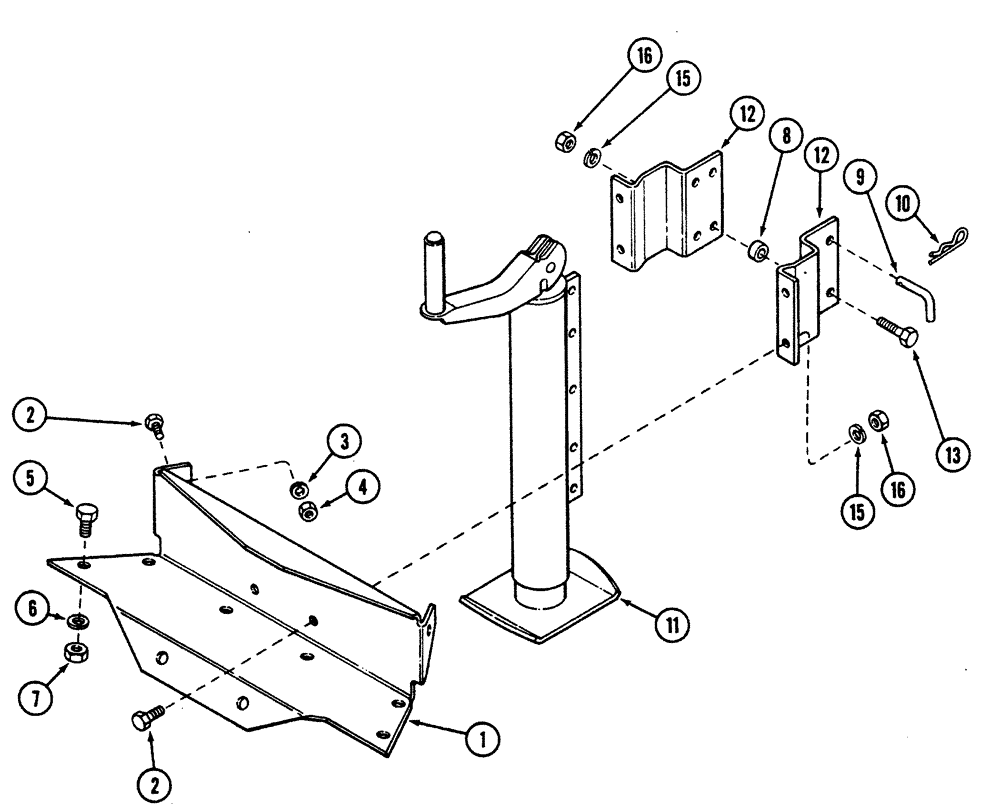

Запчасти Case IH 5300 (9-006) - HITCH JACK (09) - CHASSIS

1

815040C1

SUPPORT

bracket crank

1шт.

2

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

6шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

4

9628503

NUT,3/8"-16, G5

6шт.

5

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

280431

NUT,1/2"-13, G5

4шт.

8

85960R1

WASHER

13/32" id x 3/4" od x 1/4" thick

1шт.

9

815048C1

ROD

jack stand lock

1шт.

10

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

1шт.

11

121555A1

STAND

jack assembly 2000 pound topwind

1шт.

12

841187C1

BRACKET

bent, hitch jack

2шт.

13

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

16

9628503

NUT,3/8"-16, G5

5шт.
