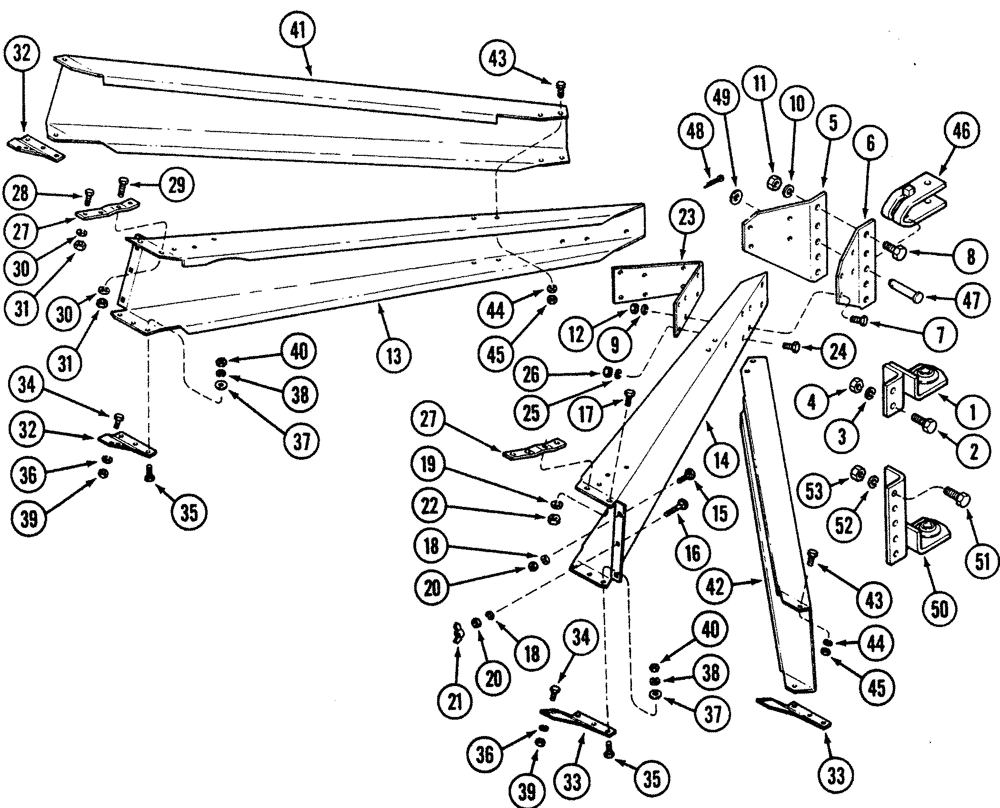

Запчасти Case IH 5300 (9-004) - HITCH (09) - CHASSIS

1

816873C1

FLEXIBLE JOINT

hitch ball

1шт.

2

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

3

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

4

280954

NUT,3/4"-10, G5

2шт.

5

841184C1

SUPPORT

hitch LH

1шт.

6

841185C1

SUPPORT

hitch RH

1шт.

7

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

8

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

11

280954

NUT,3/4"-10, G5

2шт.

12

280431

NUT,1/2"-13, G5

8шт.

13

815038C1

CHANNEL

hitch main LH

1шт.

14

816925C1

MEMBER

hitch main RH

1шт.

15

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

5шт.

16

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

17

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

5шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

9628503

NUT,3/8"-16, G5

5шт.

21

129-410

WING NUT,3/8"-16

1шт.

22

280431

NUT,1/2"-13, G5

2шт.

23

816923C1

PLATE

hitch reinforcing

1шт.

24

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

26

280431

NUT,1/2"-13, G5

4шт.

27

815035C1

BRACKET

Brace hitch tie

2шт.

28

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

29

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

31

280431

NUT,1/2"-13, G5

8шт.

32

815036C2

REINFORCEMENT

hitch lower LH

1шт.

33

815037C2

REINFORCEMENT

hitch lower RH

1шт.

34

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

35

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

37

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

39

9628503

NUT,3/8"-16, G5

1шт.

40

280431

NUT,1/2"-13, G5

4шт.

41

816924C1

MEMBER

hitch support LH

1шт.

42

815039C1

CHANNEL

hitch support RH

1шт.

43

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

45

280431

NUT,1/2"-13, G5

10шт.

46

815029C2

CLEVIS

tractor hitch

1шт.

47

439-11256

HEADED PIN,3/4" x 3 3/4"

1шт.

48

80753

COTTER PIN,1/4" x 1 1/2"

1шт.

49

87034831

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

2шт.

50

843228C1

HITCH ASSY, TRAILER

BALL JOINT (Used on drills with 28 inch Wheels For England)

1шт.

51

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

52

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

53

280954

NUT,3/4"-10, G5

2шт.
