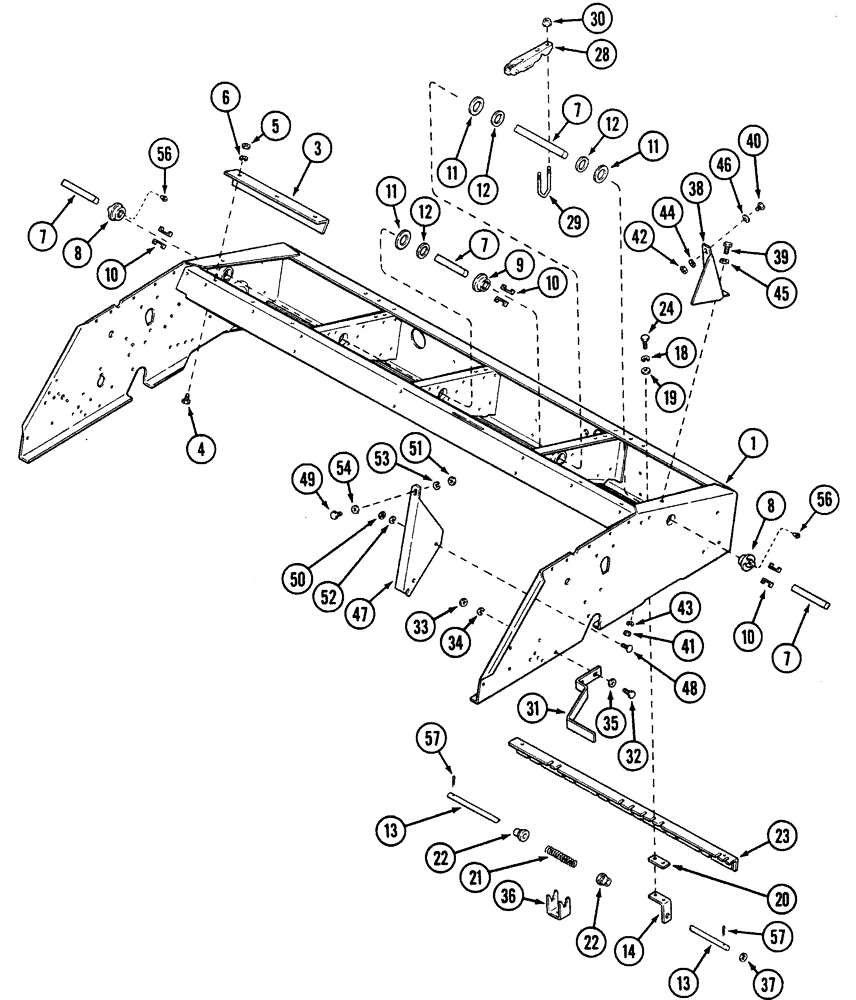

Запчасти Case IH 5300 (9-002) - MAIN FRAME (09) - CHASSIS

1

819062C92

FRAME

W/PRODUCT-GRAPHIC, 7FT. 11IN.

1шт.

1

819063C93

FRAME ASSY

W/DECAL, 9 FT. 7 IN.

1шт.

1

819064C94

FRAME ASSY

W/DECAL, 10 FT. 9 IN.

1шт.

1

819065C94

FRAME ASSY

W/DECAL, 12 FT. 4 IN.

1шт.

1

819066C94

FRAME ASSY

W/DECAL, 13 FT. 4 IN.

1шт.

2

REF

INSTRUCTION

DECAL Caution

1шт.

3

815023C1

ANGLE

MID CROSSMEMBER REINF LH

1шт.

3

351167A1

ANGLE

channel reinforcement 6" LH

1шт.

3

351169A1

ANGLE

channel reinforcement 7" LH

1шт.

3

815024C1

ANGLE

MID CROSSMEMBER REINF RH

1шт.

Shown

1шт.

3

351166A1

ANGLE

channel reinforcement 6" RH

1шт.

3

351168A1

ANGLE

channel reinforcement 7" RH

1шт.

4

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

5

280431

NUT,1/2"-13, G5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

NSS

NOT SOLD SEPARAT

BAR Rockshaft, 97-1/2"

1шт.

Order 815100C1 and Cut To Length

1шт.

13 x 7

1шт.

7

815100C1

BAR

ROCKSHAFT, 117-1/2 inch

1шт.

7

815101C1

BAR

Rockshaft, 66-3/8 x 1"

2шт.

20 x 6, 20 x 8, 18 x 7, 20 x 8, 16 x 8

1шт.

7

603919R1

BAR

ROCKSHAFT, 71-1/2 inch

2шт.

7

1980558C1

SHAFT

Square 1" x 75.8 Long

2шт.

24 x 6, 21 x 7

1шт.

7

NSS

NOT SOLD SEPARAT

BAR Rockshaft, 81-13/16"

2шт.

20 x 8, 16 x 10

1шт.

Order 603164R1 and Cut To Length

1шт.

7

NSS

NOT SOLD SEPARAT

BAR Rockshaft, 94-5/16 inch

2шт.

Order 815971C1 and Cut To Length

1шт.

8

603114R1

TRUNNION

end rockshaft

1шт.

9

815086C1

TRUNNION

rockshaft intermediate

1шт.

10

603196R1

CHANNEL

clip trunnion rockshaft

1шт.

11

495-81242

WASHER,1 27/32" x 2 1/2" x .060"

1шт.

12

495-81216

WASHER,1.41" ID x 2.25" OD x 0.04" Thk

1шт.

13

815257C1

ROD

DRAWBAR PIVOT

1шт.

13

815258C1

ROD

DRAWBAR PIVOT

1шт.

13

815259C1

DRAWBAR

pin 3/4" od x 5" lg w/ holes

1шт.

13

815260C1

ROD

pin 3/4"od x 5 11/16"lg w/ holes

1шт.

13

815261C1

DRAWBAR

ROD, PIVOT

1шт.

14

1976316C1

ANGLE

pivot shaft

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

19

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

20

815263C1

BAR

spacer

1шт.

21

16046D

SPRING

C, 3/32" wire 1 1/16"od 4 19/32"long

1шт.

22

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

insert Zytel

1шт.

23

815265C2

ANGLE

FURROW OPENER SPACING LH

1шт.

23

815266C2

ANGLE

FURROW OPENER SPACING RH

1шт.

23

815267C2

ANGLE

FURROW OPENER SPACING LH

1шт.

23

815268C2

ANGLE

FURROW OPENER SPACING RH

1шт.

23

815269C2

HITCH BRACKET

ANGLE SPACING LH

1шт.

18 x 7

1шт.

23

815270C2

HITCH BRACKET

ANGLE SPACING RH

1шт.

18 x 7

1шт.

23

815271C2

ANGLE

ANGLE SPACING LH

1шт.

20 x 6

1шт.

23

815272C2

ANGLE

ANGLE SPACING RH

1шт.

20 x 6

1шт.

23

815273C2

HITCH BRACKET

ANGLE SPACING LH

1шт.

24 x 6

1шт.

23

815274C2

HITCH BRACKET

ANGLE SPACING RH

1шт.

24 x 6

1шт.

23

815275C2

HITCH BRACKET

ANGLE, FURROW OPENER SPACING LH

1шт.

16 x 8

1шт.

23

815276C2

HITCH BRACKET

ANGLE, FURROW OPENER SPACING RH

1шт.

16 x 8

1шт.

23

815277C2

HITCH BRACKET

ANGLE, FURROW OPENER SPACING LH

1шт.

23

815278C2

HITCH BRACKET

ANGLE, FURROW OPENER SPACING RH

1шт.

23

815279C2

HITCH BRACKET

ANGLE, FURROW OPENER SPACING LH

1шт.

16 x 10

1шт.

23

815280C2

HITCH BRACKET

ANGLE, FURROW OPENER SPACING RH

1шт.

16 x 10

1шт.

23

816702C2

ANGLE

furrow opening spacing LH

1шт.

21 x 7

1шт.

23

816703C2

ANGLE

furrow opening spacing RH

1шт.

21 x 7

1шт.

24

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

28

815281C2

ARM

assembly black

1шт.

29

815284C1

BOLT,3/8" - 16 x 2 1/2"

V 3/8" x 1 7/16"w

1шт.

30

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

31

816739C1

BLADE

WHEEL MUD SCRAPER

2шт.

32

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

33

9628503

NUT,3/8"-16, G5

4шт.

34

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

35

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

36

815753C2

SUPPORT

drawbar release

1шт.

37

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

2шт.

38

818340C1

FILLER

front RH

1шт.

38

818339C1

FILLER

front LH

1шт.

39

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

40

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

2шт.

42

280431

NUT,1/2"-13, G5

2шт.

43

80681

LOCK WASHER,5/16"

2шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

45

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.

46

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

47

818342C1

FILLER

rear RH

1шт.

47

818341C1

FILLER

rear LH

1шт.

48

280700

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

49

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

50

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

51

9635082

NUT,5/16" - 18, Gr 5

4шт.

52

80682

LOCK WASHER,1/4"

4шт.

53

80681

LOCK WASHER,5/16"

4шт.

54

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

4шт.

56

485-14414

SET SCREW,Sq Hd, 7/16"-14 x 7/8"

1шт.

57

394818

COTTER PIN,M5 x 25

2шт.
