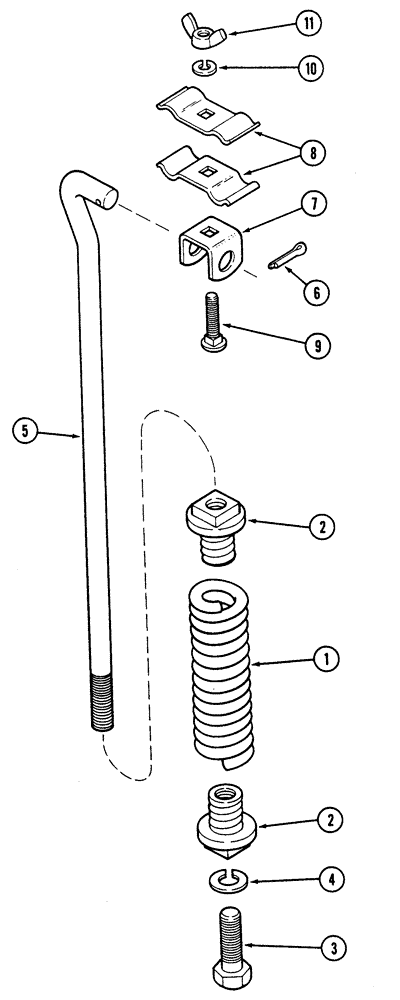

Запчасти Case IH 5300 (8-44) - HYDRAULIC HOSE SUPPORT (08) - HYDRAULICS

1

515031R11

SPRING

ASSY, HOSE SUPPORT

1шт.

2

SA1378A

PLUG

Spring

2шт.

3

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

4

12034871

WASHER

5/8"

1шт.

5

515028R1

ROD

Hydraulic Hose Support

1шт.

6

394818

COTTER PIN,M5 x 25

1шт.

7

515029R1

BRACKET

Hose Clamp

2шт.

8

515030R1

CLAMP

4шт.

9

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

2шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

11

129-410

WING NUT,3/8"-16

2шт.
