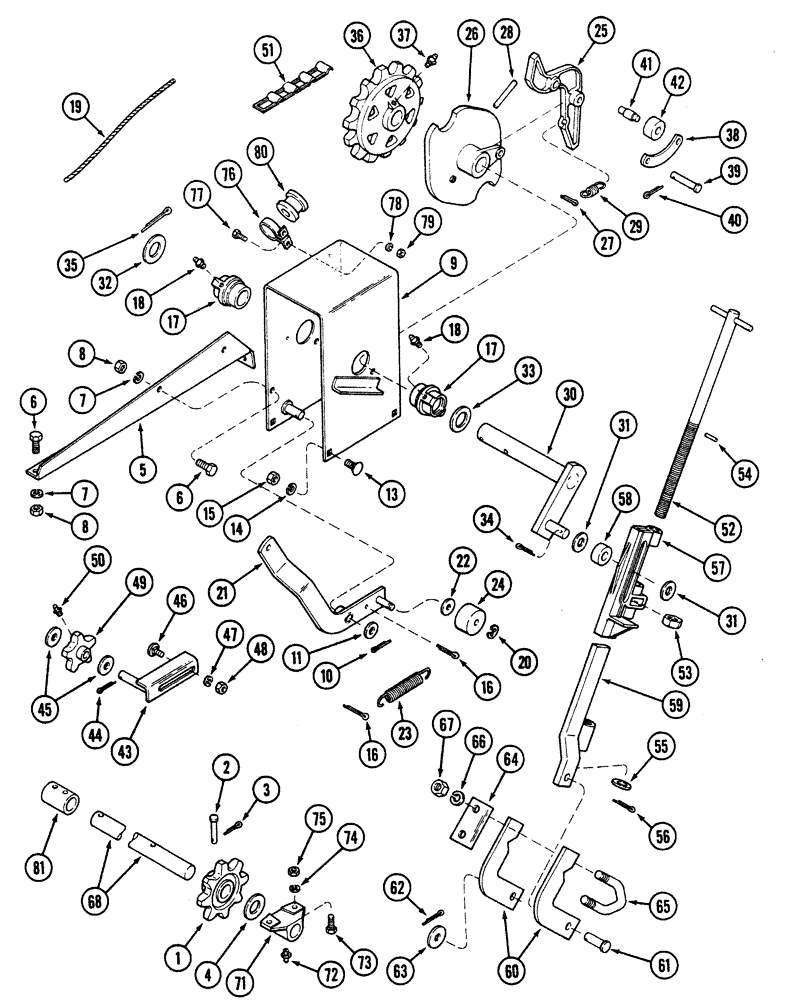

Запчасти Case IH 5300 (8-42) - POWER LIFT (08) - HYDRAULICS

1

815530C1

DRIVE SPROCKET

POWER LIFT 8T

2шт.

2

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

2шт.

3

80756

COTTER PIN,1/8" x 3/4"

2шт.

4

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

2шт.

5

815531C1

SUPPORT

POWER LIFT BRACKET LH

1шт.

5

815532C1

SUPPORT

POWER LIFT BRACKET RH

1шт.

Shown

1шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

8

280431

NUT,1/2"-13, G5

6шт.

9

815533C3

SUPPORT ASSY.

BRACKET POWER LIFT LH

1шт.

9

815534C3

SUPPORT

BRACKET ASSY, POWER LIFT RH

1шт.

Shown

1шт.

10

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

11

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

2шт.

13

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

15

280431

NUT,1/2"-13, G5

8шт.

16

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

17

592770R1

CRANKSHAFT BEARING,1.257" ID x 2.12" OD x 2.06"

POWER LIFT

4шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

19

NSS

NOT SOLD SEPARAT

ROPE Sisal, 5/16 x 12 foot (Dealer To Supply Locally)

1шт.

20

100-3350

SNAP RING,#50, .392" Dia, E-Type

2шт.

21

815539C1

BRACKET

LEVER ASSY, POWER LIFT TRIP LH

1шт.

21

815540C1

LEVER

ASSY, POWER LIFT TRIP RH

1шт.

Shown

1шт.

22

495-81024

WASHER,17/32" x 1 1/4" x .060"

4шт.

23

1547125C1

SPRING

TRIP LEVER

2шт.

24

603378R2

ROLLER

TRIP STOP

2шт.

25

603382R1

PAWL

POWER LIFT

1шт.

25

603381R1

PAWL

POWER LIFT

1шт.

Shown

1шт.

26

608421R1

CARRIER

TRIP DOG RH

1шт.

26

608420R1

CARRIER

TRIP DOG LH

1шт.

Shown

1шт.

27

394818

COTTER PIN,M5 x 25

2шт.

28

19972R1

PIN,11.1mm OD x 11.1mm L, Coiled

7/16 X 2-1/2 COILED SPRING

2шт.

29

37AC

SPRING

TRIP DOG

2шт.

30

815543C1

CRANK

ASSY, POWER LIFT LH

1шт.

30

815544C1

CRANK

ASSY, POWER LIFT RH

1шт.

31

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

4шт.

32

86632585

WASHER,1.53" ID x 2.25" OD x 0.06" Thk

2шт.

33

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1шт.

34

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

35

80752

COTTER PIN,1/4" x 2 1/2"

2шт.

36

603377R2

DRIVE SPROCKET

CLUTCH 14T

2шт.

37

80719

LUBE NIPPLE,1/8" NPT

2шт.

38

603397R1

LINK

TRIP DOG CARRIER CONNECTING

2шт.

39

86632571

HEADED PIN,1/2" x 2 1/2"

2шт.

40

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

41

F15206

TRUNNION

PIN, TRIP DOG ROLLER

2шт.

42

F13685

PAWL

ROLLER, TRIP DOG

2шт.

43

815546C1

BRACKET

ASSY, CHAIN TIGHTENER SPRKT LH

1шт.

43

815547C1

BRACKET

ASSY, CHAIN TIGHTENER SPRKT RH

1шт.

Shown

1шт.

44

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

45

495-81026

WASHER,21/32" x 1 1/2" x .060"

4шт.

46

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

47

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

48

9628503

NUT,3/8"-16, G5

4шт.

49

603375R1

DRIVE SPROCKET

CHAIN TIGHTENER 5T

2шт.

50

87414

LUBE NIPPLE,1/4" - 28

2шт.

51

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, Power Lift Drive

2шт.

Use 29 links of no. 55 steel chain

1шт.

52

815550C1

ADJUSTMENT SCREW

ASSY, ADJUSTING

2шт.

53

425-1212

SLOTTED NUT,3/4"-10, G5

2шт.

54

38-31216

PIN,3/16" x 1", Coiled

1шт.

55

86624157

WASHER,0.78" ID x 1.5" OD x 0.06" Thk

2шт.

56

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

57

815552C1

SLIDE

ADJUSTABLE LH

1шт.

57

815553C1

SLIDE

ADJUSTABLE RH

1шт.

Shown

1шт.

58

601298R1

ROLLER

Adjustable Slide

2шт.

59

815554C1

ARM

ASSY, SLIDE CONNECTING LH

1шт.

59

815555C1

ARM

ASSY, SLIDE CONNECTING RH

1шт.

Shown

1шт.

60

815557C1

ARM

ROCKSHAFT LIFT

4шт.

61

427-10161

CLEVIS PIN,15.88mm OD x 40.89mm L

2шт.

62

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

63

495-81026

WASHER,21/32" x 1 1/2" x .060"

2шт.

64

603393R1

CHANNEL

lift arm clamping

2шт.

65

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

V 5/8" 1 5/8"w 3 9/16"

2шт.

66

12034871

WASHER

5/8"

4шт.

67

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

68

815558C1

ROD

POWER LIFT COUNTER SHAFT (Use With 2 Drive Drills)

2шт.

71

815122C1

BRACKET

support - countershaft

2шт.

72

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

73

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

74

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

75

9628503

NUT,3/8"-16, G5

4шт.

76

465622R1

CLAMP

ROPE GROMMET

2шт.

77

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

78

80681

LOCK WASHER,5/16"

4шт.

79

9635082

NUT,5/16" - 18, Gr 5

4шт.

80

480475R1

GROMMET

TRIP ROPE

2шт.

81

815121C1

SPACER

3/4 X .438 STD PIPE

1шт.
