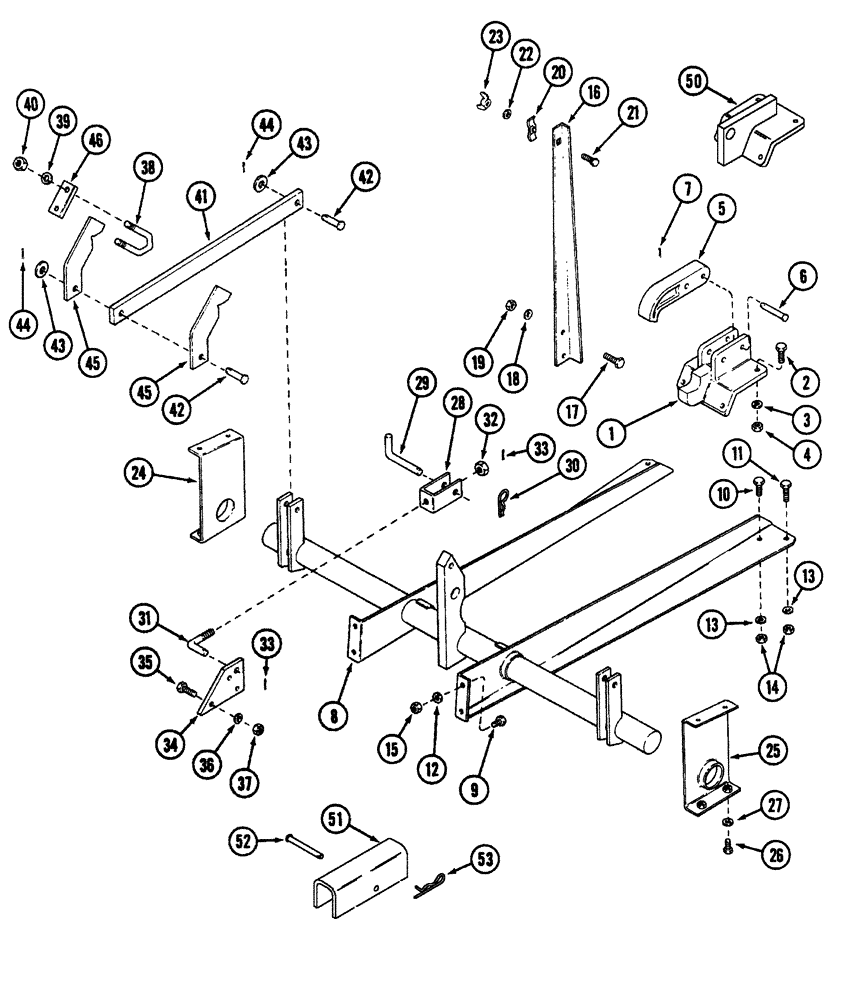

Запчасти Case IH 5300 (8-40) - HYDRAULIC LIFT, WITH REMOTE CONTROL HYDRAULICS (08) - HYDRAULICS

1

815560C2

BRACKET

Cylinder Mounting

1шт.

If Used

1шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

280431

NUT,1/2"-13, G5

4шт.

5

815561C1

ARM

RETAINER

1шт.

If Used

1шт.

6

23326R1

HEADED PIN,3/8" x 2 1/8"

1шт.

7

80756

COTTER PIN,1/8" x 3/4"

1шт.

8

816926C2

ROCKSHAFT

hydraulic lift, solid

1шт.

9

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

10

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

14

9628503

NUT,3/8"-16, G5

4шт.

15

280431

NUT,1/2"-13, G5

4шт.

16

815578C1

SUPPORT

hyd hose

1шт.

17

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

19

280431

NUT,1/2"-13, G5

2шт.

20

317054R1

CLAMP

HOSE SUPPORT

1шт.

21

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

23

129-410

WING NUT,3/8"-16

1шт.

24

815564C1

BRACKET

hyd cylinder LH

1шт.

25

815565C1

BRACKET

hyd cylinder RH

1шт.

26

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

28

815571C1

YOKE

UNIVERSAL JOINT YOKE ROCK

1шт.

If Used

1шт.

29

600829R2

ROD

CYLINDER LOCK

1шт.

If Used

1шт.

30

1970957C1

SPRING

PIN, HAIR (SPRING)

1шт.

31

815572C2

ROD

YOKE

1шт.

If Used

1шт.

32

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

33

394818

COTTER PIN,M5 x 25

2шт.

34

815521C1

BAR

HAND LIFT LEVER PIVOT

1шт.

If Used

1шт.

35

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

2шт.

38

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

V 5/8" 1 5/8"w 3 9/16"

2шт.

39

12034871

WASHER

5/8"

4шт.

40

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

41

815576C1

BAR

connecting

2шт.

42

427-10161

CLEVIS PIN,15.88mm OD x 40.89mm L

4шт.

43

495-81026

WASHER,21/32" x 1 1/2" x .060"

4шт.

44

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

4шт.

45

815577C1

ARM

hydraulic

4шт.

46

603393R1

CHANNEL

lift arm clamping

2шт.

50

1344941C1

ANCHOR

assembly

1шт.

51

843137C1

CHANNEL

hydraulic lockout

1шт.

52

439-1544

HEADED PIN,5/16" x 2 3/4"

1шт.

53

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

1шт.
