Запчасти Case IH 5300 (8-32) - CYLINDER ASSEMBLY, 817675C91, BOOM CONTROL (08) - HYDRAULICS

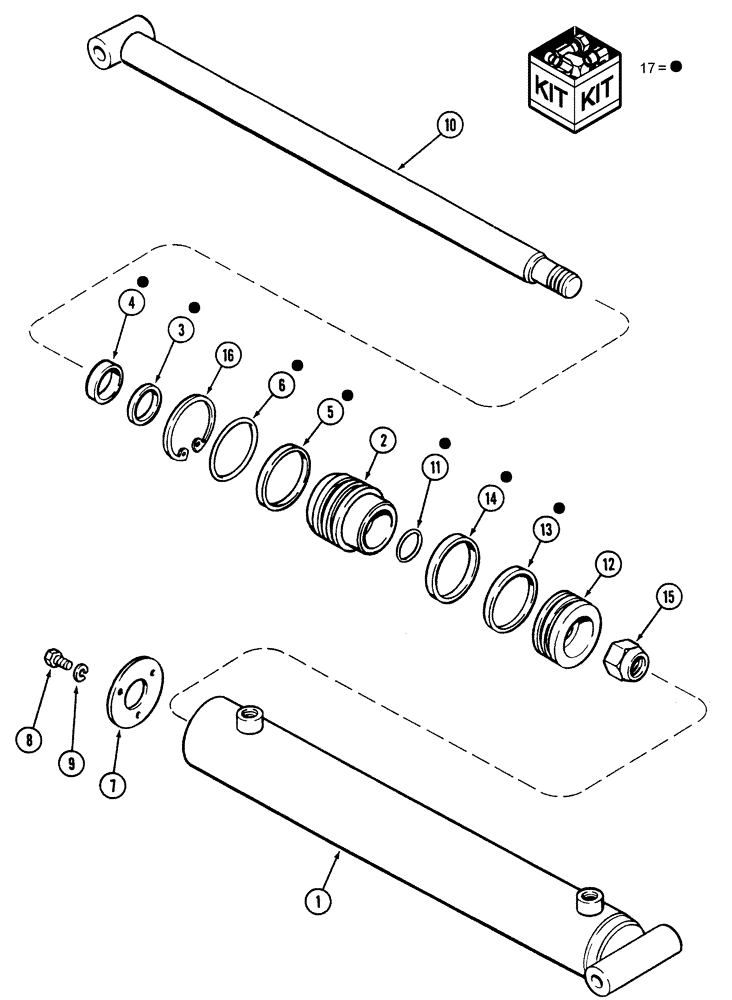

Схема запчастей Case IH 5300 - (8-32) - CYLINDER ASSEMBLY, 817675C91, BOOM CONTROL (08) - HYDRAULICS
9
7
3
8
5
6
2
14
4
15
17
12
13
1
16
11
10

Артикул

Название

Примечание

Количество

0

817675C91

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 615.95mm Stroke

WING LIFT

1шт.

1

NSS

NOT SOLD SEPARAT

BODY Cylinder

1шт.

2

843414C1

GLAND

END ASSY, ROD

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER Piston Rod

1шт.

Included in repair kit 843397C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL Piston Rod

1шт.

Included in repair kit 843397C1

1шт.

5

NSS

NOT SOLD SEPARAT

RING Backup Gland

1шт.

Included in repair kit 843397C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING Gland

1шт.

Included in repair kit 843397C1

1шт.

7

843391C1

RETAINER

1шт.

8

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

3шт.

9

80682

LOCK WASHER,1/4"

3шт.

10

843392C1

PISTON ROD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING Piston Rod

1шт.

Included in repair kit 843397C1

1шт.

12

843393C1

PISTON

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL Piston

1шт.

Included in repair kit 843397C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING Wear Piston

1шт.

Included in repair kit 843397C1

1шт.

15

131-22

LOCK NUT,1 1/4"-12, GB

1шт.

16

843396C1

CIRCLIP

RING, RETAINING

1шт.

17

843397C1

SEAL KIT

SEAL REPAIR

1шт.

Выбрано товаров: 25
