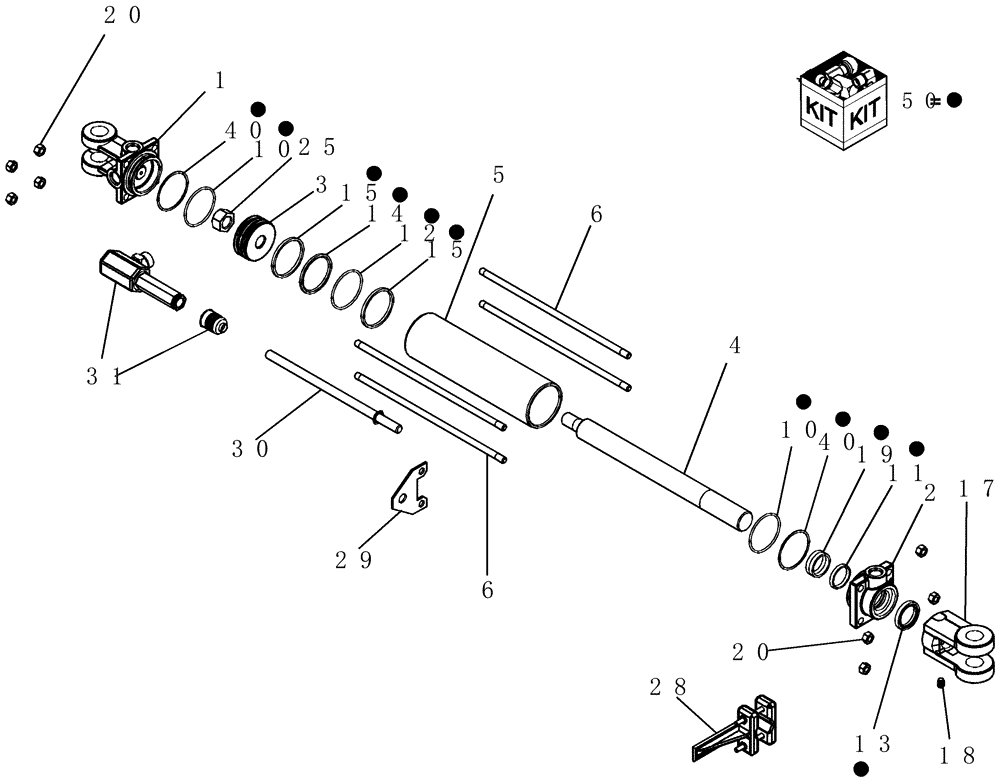

Запчасти Case IH 5300 (8-30) - LIFT CYLINDER ASSEMBLY, 86991983, DEPTH CONTROL (2ND DATE RANGE) (08) - HYDRAULICS

0

86991983

HYDRAULIC CYLINDER,31.75mm Rod, 203.2mm Stroke

2 1/2" x 8" 3000 psi, no pins, Start Year: 01-APR-03

1шт.

1

439275A1

CYLINDER END CAP

cylinder base 2 1/2" bore

1шт.

2

87409418

HEAD

cylinder fron 2 1/2" bore x 1 1/4" rod

1шт.

3

87409483

PISTON

2 1/2" cylinder

1шт.

4

87409465

PISTON ROD

1 1/4"

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409488

THREADED TIE-ROD

3/8"-16

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87405834

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87405834

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87405834

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87405834

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87405834

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87405834

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

Not Shown

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87405834

1шт.

20

9628503

NUT,3/8"-16, G5

8шт.

25

87021832

LOCK NUT,3/4"-16, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

28

87409495

ACTUATOR

hyd cylinder

1шт.

29

87409496

PLATE

cylinder guide

1шт.

30

87409497

PUSH ROD

hyd cylinder

1шт.

31

87409498

VALVE BLOCK (USED)

body

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87405834

1шт.

50

87405834

SEAL KIT

hyd cylinder 2 1/2" Monarch with 1 1/4" rod

1шт.
