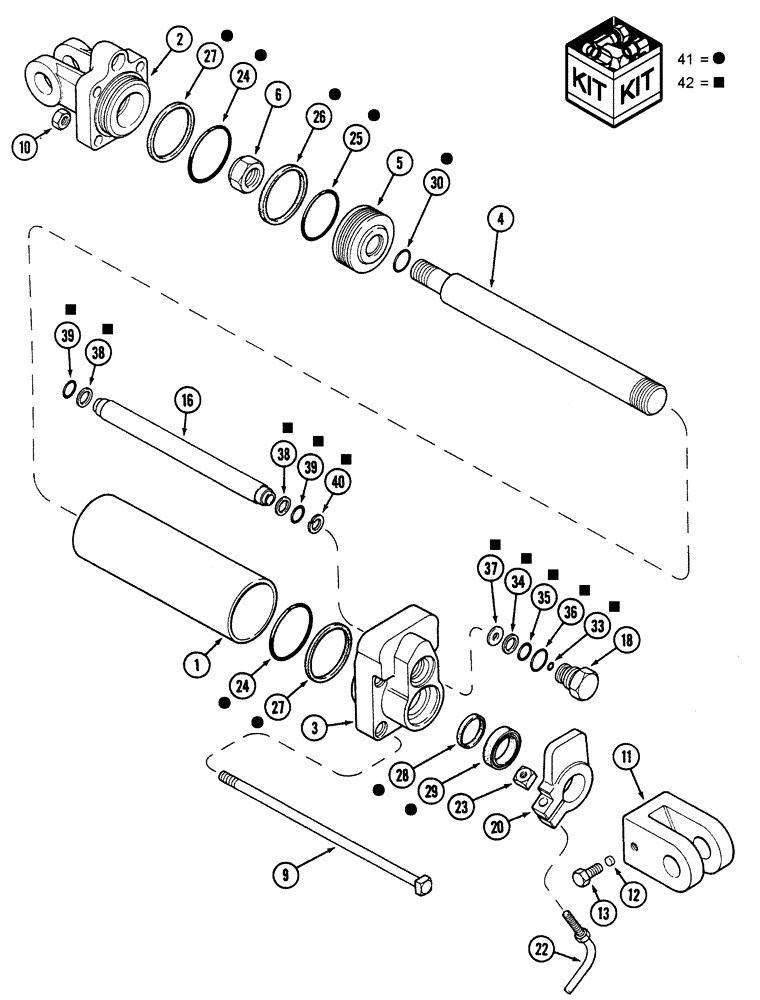

Запчасти Case IH 5300 (8-28) - LIFT CYLINDER ASSEMBLY, 145353C91, DEPTH CONTROL (1ST DATE RANGE) (08) - HYDRAULICS

0

145353C91

HYDRAULIC CYLINDER

depth control, Years: -31-MAR-03

1шт.

1

NSS

NOT SOLD SEPARAT

BODY CYLINDER

1шт.

2

145363C1

HEAD

HYD CYLINDER REAR

1шт.

3

145365C1

END

HYD CYLINDER FRONT - HEAD

1шт.

4

145500C1

PISTON ROD

HYD CYLINDER

1шт.

5

145221C3

PISTON

hyd cylinder

1шт.

6

281010

LOCK NUT,7/8"-14, GC

1шт.

9

1260889C1

SQUARE BOLT,7/16" - 14 x 322.94mm

HYD CYL TIE

4шт.

10

280717

NUT,7/16"-14, G5

4шт.

11

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

13

280643

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

16

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

CYL RETURN

1шт.

18

1260968C91

VALVE

LIMIT STOP

1шт.

20

224579C3

ARM

VALVE, HYD CYLINDER TRIP

1шт.

22

1263435C91

ADJUSTMENT SCREW

HYD CYLINDER

1шт.

23

1266705C1

SQUARE NUT

5/16-18 SQUARE

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 1/8 inch

2шт.

Included in repair kit 79975C2

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 3/32 inch

1шт.

Included in repair kit 79975C2

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL PISTON

1шт.

Included in repair kit 79975C2

1шт.

27

NSS

NOT SOLD SEPARAT

RING BACKUP

2шт.

Included in repair kit 79975C2

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL ROD

1шт.

Included in repair kit 79975C2

1шт.

29

NSS

NOT SOLD SEPARAT

WIPER ROD

1шт.

Included in repair kit 79975C2

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING PISTON ROD

1шт.

Included in repair kit 79975C2

1шт.

33

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

Included in repair kit 1272597C91

1шт.

34

224301C1

BACK-UP RING

1шт.

Included in repair kit 1272597C91

1шт.

35

272142

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

Included in repair kit 1272597C91

1шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Included in repair kit 1272597C91

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER BACKUP

1шт.

Included in repair kit 1272597C91

1шт.

38

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

2шт.

Included in repair kit 1272597C91

1шт.

39

229317

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

Included in repair kit 1272597C91

1шт.

40

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

Included in repair kit 1272597C91

1шт.

41

79975C2

SEAL KIT

kit, hyd cylinder service

1шт.

42

1272597C91

KIT

VALVE AND TRANSFER TUBE

1шт.
