Запчасти Case IH 5300 (8-12) - HYDRAULIC LIFT SYSTEM (08) - HYDRAULICS

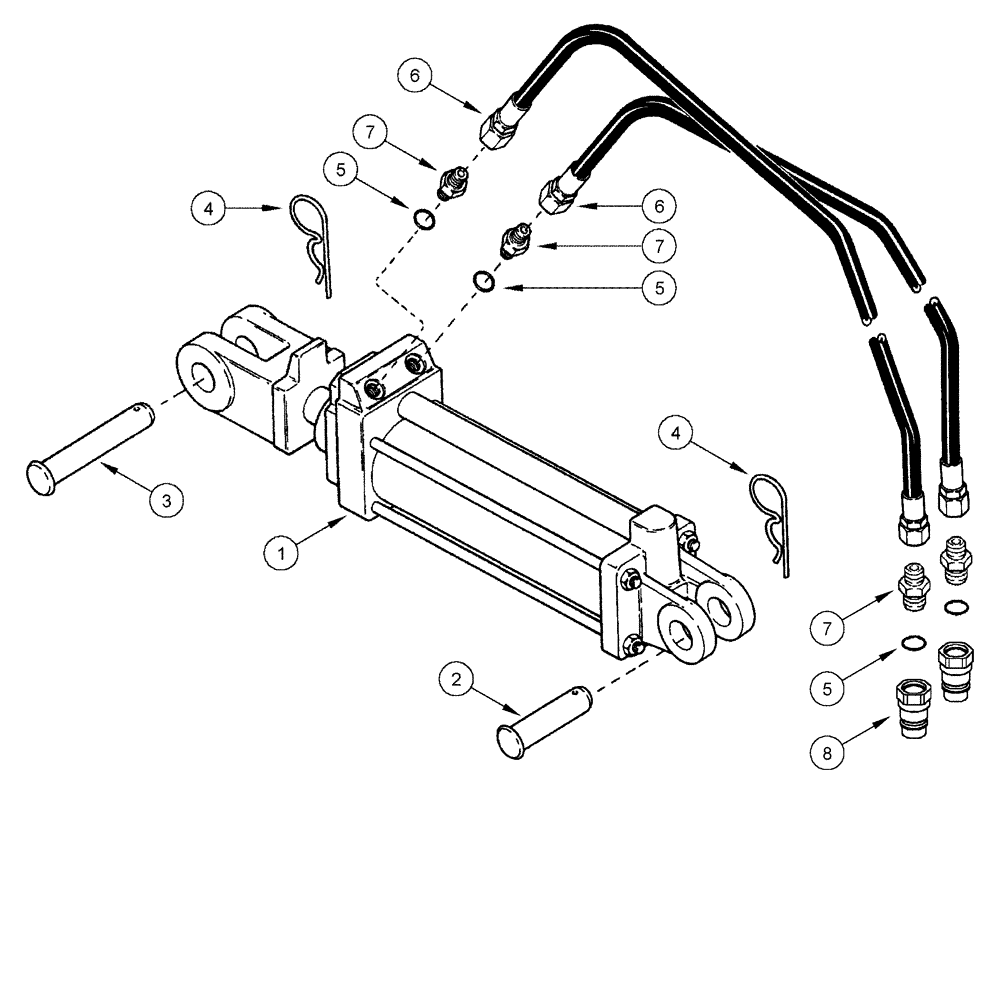

Схема запчастей Case IH 5300 - (8-12) - HYDRAULIC LIFT SYSTEM (08) - HYDRAULICS
4
8
6
2
7
7
6
3
5
1
4
2
5
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, Lift

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

1шт.

3

810751C1

PIN

headed 1" x 3 1/2"

1шт.

4

1970957C1

SPRING

PIN, HAIR (SPRING)

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

2шт.

7

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

8

1285718C2

QUICK MALE COUPLING

self-seal male half

1шт.

Выбрано товаров: 8
