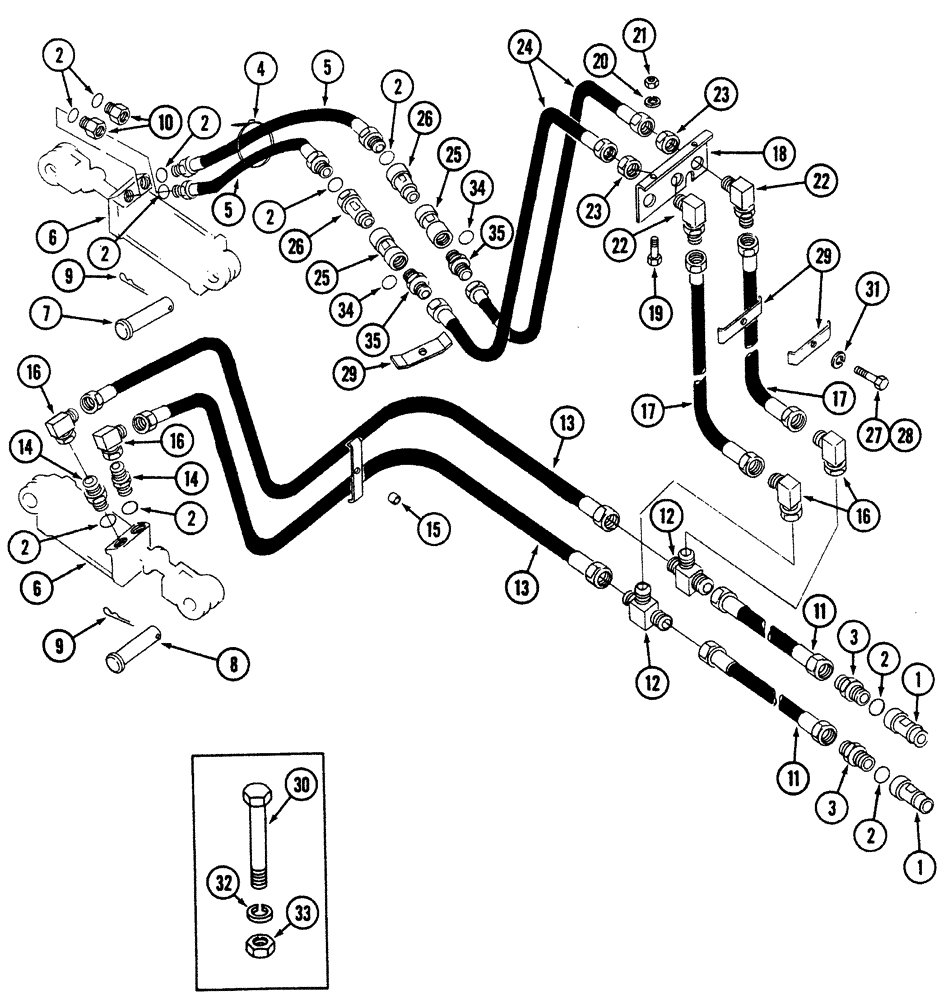

Запчасти Case IH 5300 (8-10) - DEPTH CONTROL HYDRAULICS, TWO DRILL HITCH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1341843C1
QUICK MALE COUPLING
MALE
2шт.
3
128819
HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC
4шт.
4
87557087
CABLE TIE
CABLE STRAP 11" with stainless locking clip
1шт.
5
372437R91
HOSE
1/2 X 112
2шт.
6
145353C91
HYDRAULIC CYLINDER
depth control, Years: -31-MAR-03
2шт.
6
86991983
HYDRAULIC CYLINDER,31.75mm Rod, 203.2mm Stroke
2 1/2" x 8" 3000 psi, no pins, Start Year: 01-APR-03
2шт.
7
427-16325
CLEVIS PIN,25.4mm OD x 82.55mm L
2шт.
8
810751C1
PIN
headed 1" x 3 1/2"
2шт.
9
87327559
COTTER PIN
9/64" x 2 15/16"
4шт.
10
1252129C1
ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB
ADAPTER, O-RING BOSS
2шт.
11
841044C1
HYDRAULIC HOSE
3/8" x 103" fl
2шт.
13
841045C1
HOSE ASSY.
3/8 X 96 IN.
2шт.
14
128819
HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC
2шт.
15
309710C1
SPACER,10.7mm ID x 17.14mm OD x 15.9mm L
3шт.
16
248974
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw
4шт.
17
841045C1
HOSE ASSY.
3/8 X 96 IN.
2шт.
18
841076C1
ANGLE
HOSE SUPPORT
1шт.
20
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
21
9628503
NUT,3/8"-16, G5
2шт.
22
469997R1
ELBOW
90 DEG. LONG BULKHEAD
2шт.
23
524036
BHD LOCK NUT,Blkhd, 3/4"-16
2шт.
24
841083C1
HYDRAULIC HOSE
3/8" x 142" fl
2шт.
25
1282338C91
COUPLING, QUICK, FEM
7/8 NF, Self-Sealing
2шт.
28
9706689
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
3шт.
29
851729C1
HOSE CLAMP
10шт.
30
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
1шт.
31
80680
LOCK WASHER,3/8 0.381 CST ZND
6шт.
32
80681
LOCK WASHER,5/16"
1шт.
33
9635082
NUT,5/16" - 18, Gr 5
1шт.
Выбрано товаров: 36
