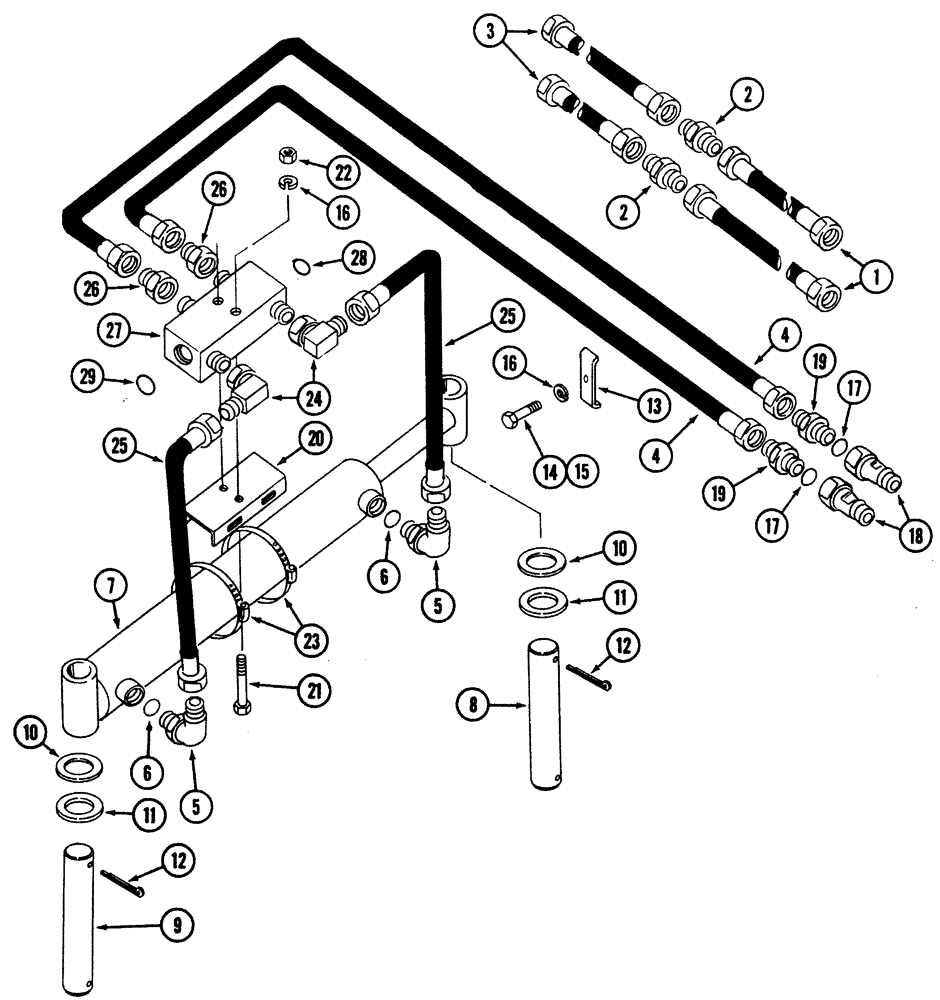

Запчасти Case IH 5300 (8-08) - BOOM CONTROL HYDRAULICS, TWO DRILL HITCH (08) - HYDRAULICS

1

179411C1

HOSE

1549 mm (61") long, hydraulic, 3/8 ID

2шт.

2

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

3

841041C1

HOSE ASSY.

BOOM

2шт.

4

843322C1

HOSE ASSY.

BOOM CYLINDER FRONT

2шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

REF

INSTRUCTION

CYLINDER ASSEMBLY, Boom Control

1шт.

8

841004C1

PIN,28.57mm OD x 154mm L

CYLINDER MOUNTING

1шт.

9

841086C1

PIN,28.57mm OD x 178mm L

CYLINDER MOUNTING

1шт.

10

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

4шт.

11

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

10шт.

12

80752

COTTER PIN,1/4" x 2 1/2"

4шт.

13

851729C1

HOSE CLAMP

9шт.

14

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

15

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

18

1341843C1

QUICK MALE COUPLING

MALE

2шт.

19

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

20

843379C1

SUPPORT

CHANNEL, VALVE MOUNTING

1шт.

21

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

9628503

NUT,3/8"-16, G5

2шт.

23

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

2шт.

24

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

25

843380C1

HOSE ASSY.

VALVE TO BOOM CYL

2шт.

26

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

2шт.

27

REF

INSTRUCTION

VALVE ASSEMBLY, Check

1шт.

28

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
