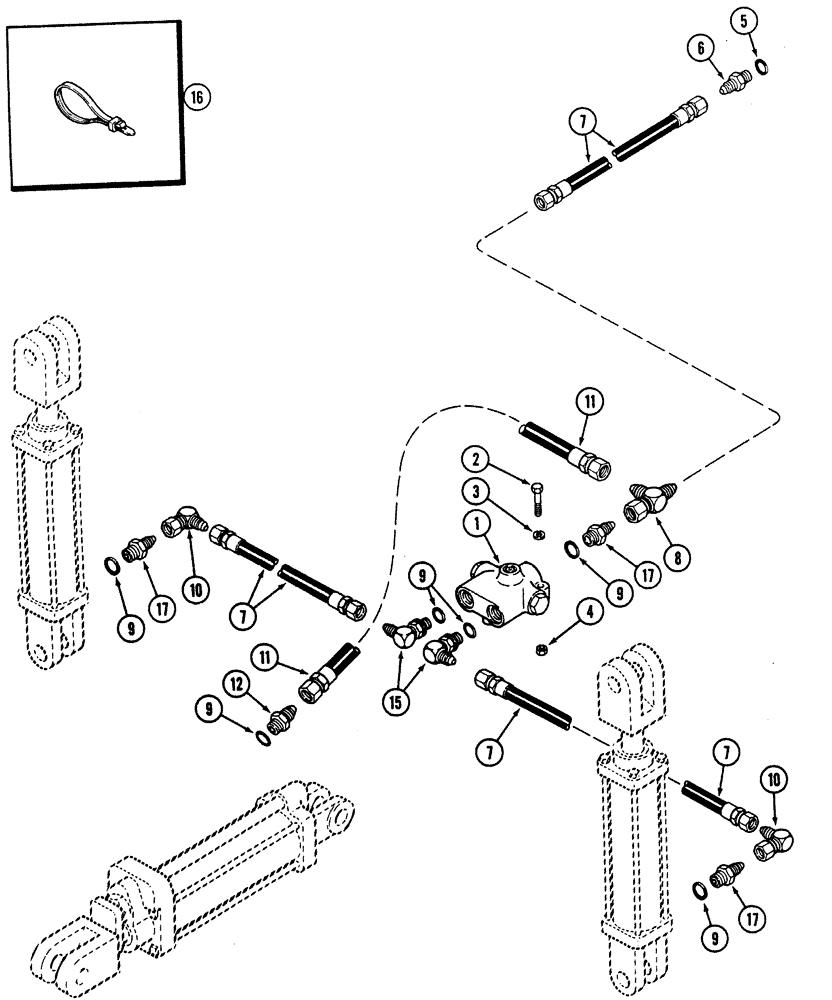

Запчасти Case IH 5300 (8-06) - RIGID MARKER HDYRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, Alternating Marker Control

1шт.

2

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

7

841044C1

HYDRAULIC HOSE

3/8" x 103" fl

3шт.

8

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

7шт.

10

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

11

390649R92

HYDRAULIC HOSE

1/2" x 19" fl

1шт.

12

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

15

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

16

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

6шт.

17

93207C1

HYD CONNECTOR

1/2" mb x 1/2" mj .052 orifice

3шт.
