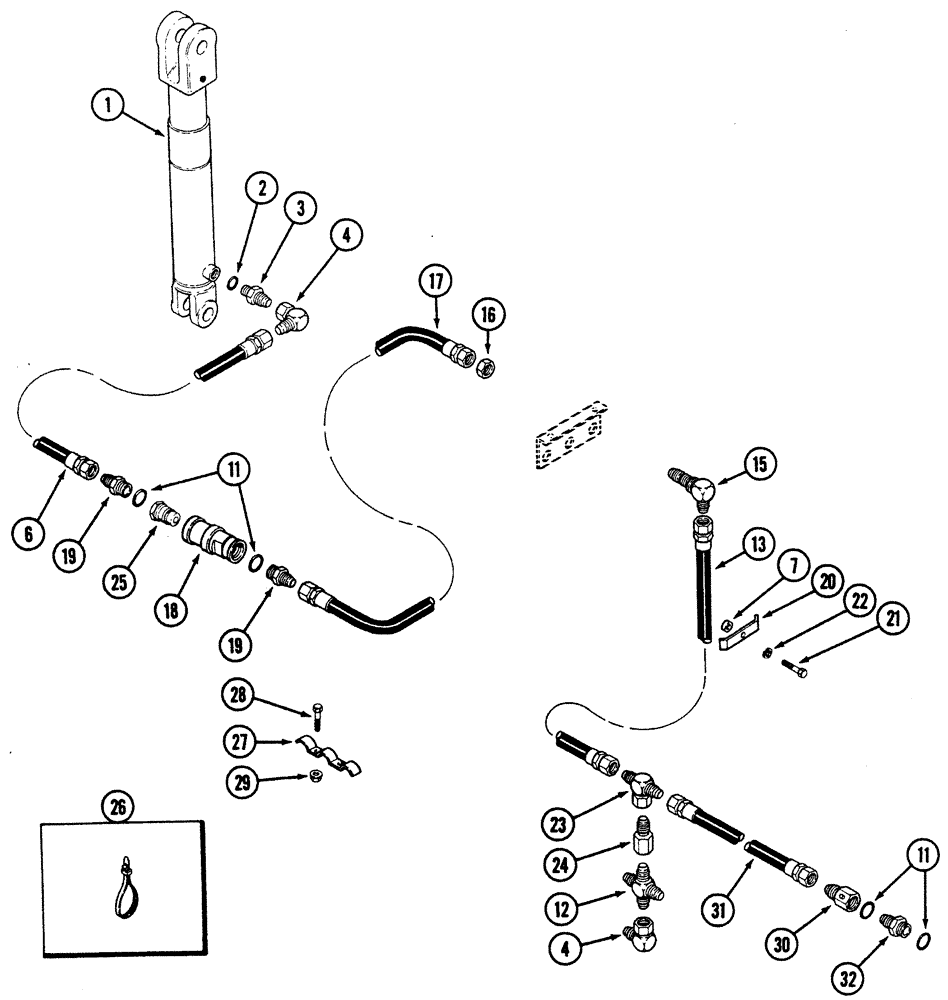

Запчасти Case IH 5300 (8-04) - MARKER HYDRAULICS, HYDRAULIC SELECTOR, LEFT MARKER: TANDEM (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

1 1/4" x 8", Years: -06-JUL-01

1шт.

1

414701A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Years: 07-JUL-01-12-JAN-03

2шт.

1

86989787

HYDRAULIC CYLINDER

2" x 8", 3000 psi, single acting, no pins, Start Year: 15-JUN-03

2шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

6

1279598C1

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

7

309710C1

SPACER,10.7mm ID x 17.14mm OD x 15.9mm L

5шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

12

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

13

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

1шт.

15

469997R1

ELBOW

90 DEG. LONG BULKHEAD

1шт.

16

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

17

841083C1

HYDRAULIC HOSE

3/8" x 142" fl

1шт.

18

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

19

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

20

851729C1

HOSE CLAMP

5шт.

21

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

5шт.

22

80681

LOCK WASHER,5/16"

5шт.

23

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

24

842773C1

RESTRICTOR

3/4" mj x 3/4" fj

1шт.

25

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

26

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

6шт.

27

1279809C1

CLAMP BRACKET

special three hose

2шт.

28

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

29

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

30

1279860C91

RESTRICTOR

valve assembly

1шт.

31

1279721C1

HYDRAULIC HOSE,12.70 mm ID x 3251.00 mm

1шт.

32

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.
