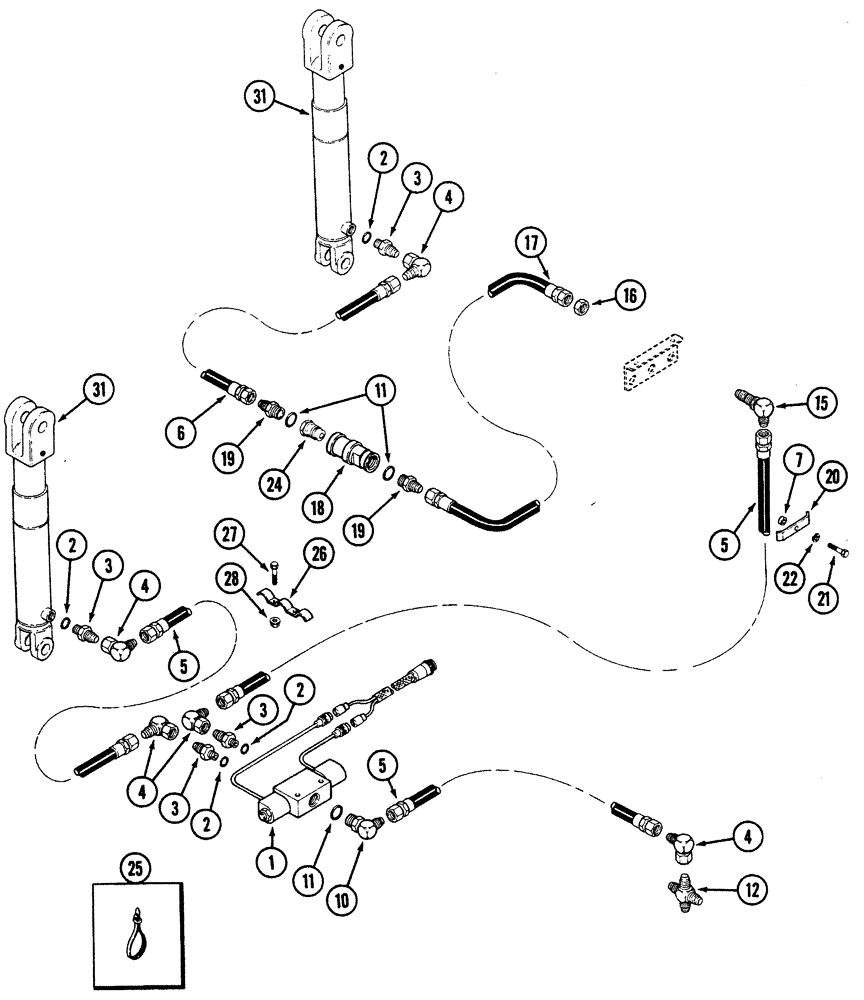

Запчасти Case IH 5300 (8-02) - MARKER HYDRAULICS, ELECTRONIC SELECTOR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, Marker Control

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

3

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

4шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

5шт.

5

841045C1

HOSE ASSY.

3/8 X 96 IN.

3шт.

6

1279598C1

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

7

309710C1

SPACER,10.7mm ID x 17.14mm OD x 15.9mm L

4шт.

10

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

1шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

1шт.

15

469997R1

ELBOW

90 DEG. LONG BULKHEAD

1шт.

16

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

17

841083C1

HYDRAULIC HOSE

3/8" x 142" fl

1шт.

18

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

19

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

20

851729C1

HOSE CLAMP

4шт.

21

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

4шт.

22

80681

LOCK WASHER,5/16"

4шт.

24

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

1шт.

25

813579C1

CABLE TIE

CABLE STRAP TIE

10шт.

26

1279809C1

CLAMP BRACKET

special three hose

2шт.

27

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

28

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

31

REF

INSTRUCTION

CYLINDER ASSEMBLY, Marker Lift

2шт.
