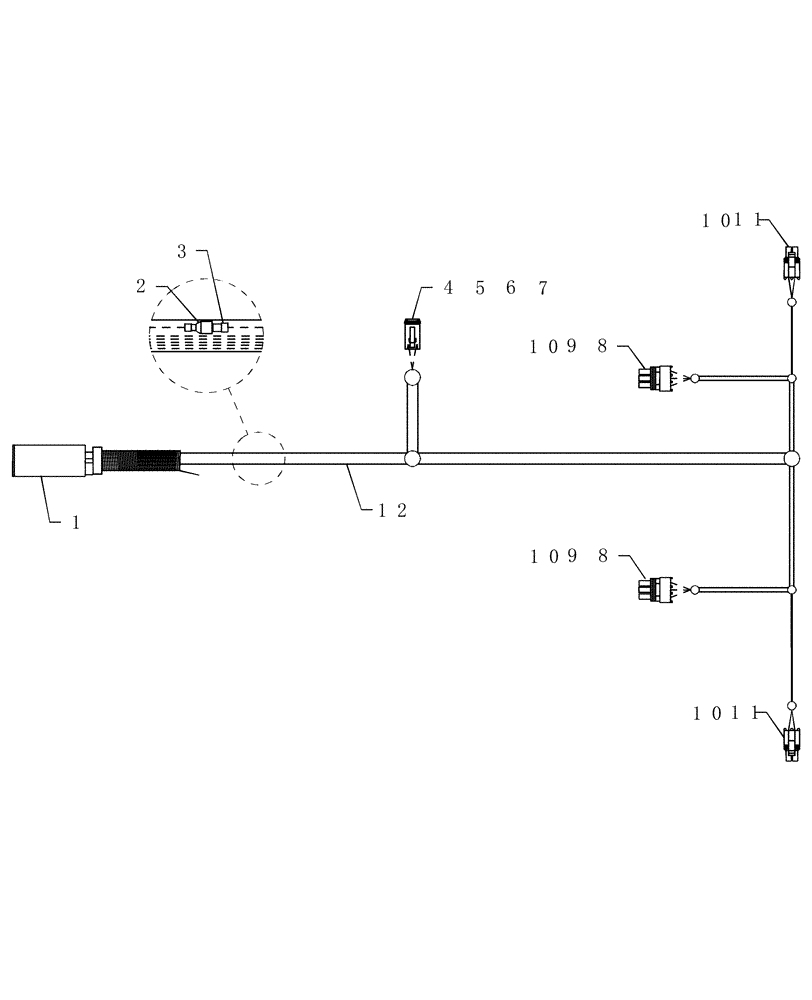

Запчасти Case IH 5300 (4-16) - SAFETY LIGHT HARNESS (04) - ELECTRICAL SYSTEMS

1

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

2

439263A1

TERMINAL CONNECTOR,14 - 16 SAE

disc 14-16awg 1/4"

1шт.

3

225187C1

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

disc 16-14awg .25 m

1шт.

4

51200043

ELEC CONNECTOR,6 Pin

Plastic 6c Plug

1шт.

5

51200044

STOP LOCK

6c plug connector

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

6

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

5шт.

8

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

9

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

10

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

11

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

12

87422013

HARNESS

lighting 5300

1шт.
