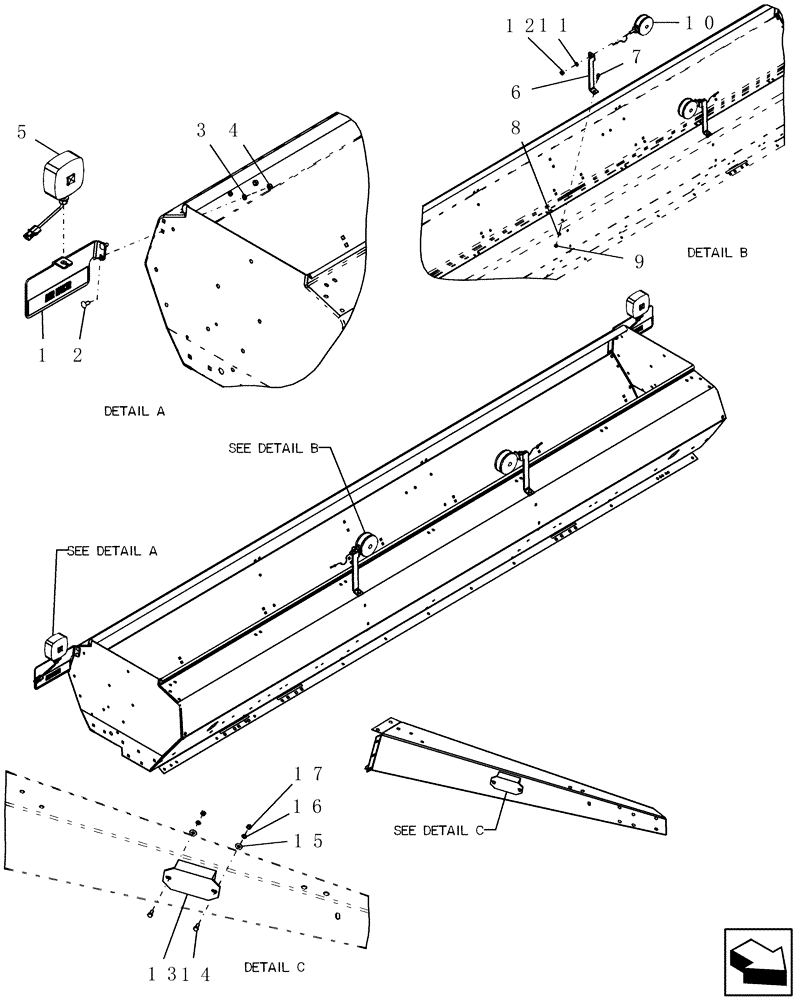

Запчасти Case IH 5300 (4-14) - SAFETY LIGHT SYSTEM (04) - ELECTRICAL SYSTEMS

1

87415833

BRACKET

warning light 5300

1шт.

1

87415890

BRACKET

warning light 5300 LH

1шт.

2

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

3

80681

LOCK WASHER,5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

192052A1

REPAIR KIT

warning light (2 wire), Years: -01-SEP-05

2шт.

Shown

1шт.

5

87564157

WARNING LIGHT

assembly amber, Start Year: 01-OCT-05

2шт.

Not Shown

1шт.

6

87414688

BRACKET

safety light 5300 RH

1шт.

6

87414666

BRACKET

safety light 5300 LH

1шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

9

9628503

NUT,3/8"-16, G5

2шт.

10

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

10

6815

LENS

red

2шт.

10

86537133

BULB,C6, #1157, 12.8V

2шт.

10

84129422

BULB

Double Contact, 1156DC

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

280431

NUT,1/2"-13, G5

2шт.

13

86561136

MODULE

implement lighting control

1шт.

14

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

15

95-21031

WASHER,1/4"

2шт.

16

80682

LOCK WASHER,1/4"

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

100

366460R1

CABLE CLIP

j 1/4" short

8шт.

100

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

4шт.

100

92144C1

CABLE CLIP

.025-.055

20шт.

100

87422013

HARNESS

lighting 5300

1шт.

100

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.
