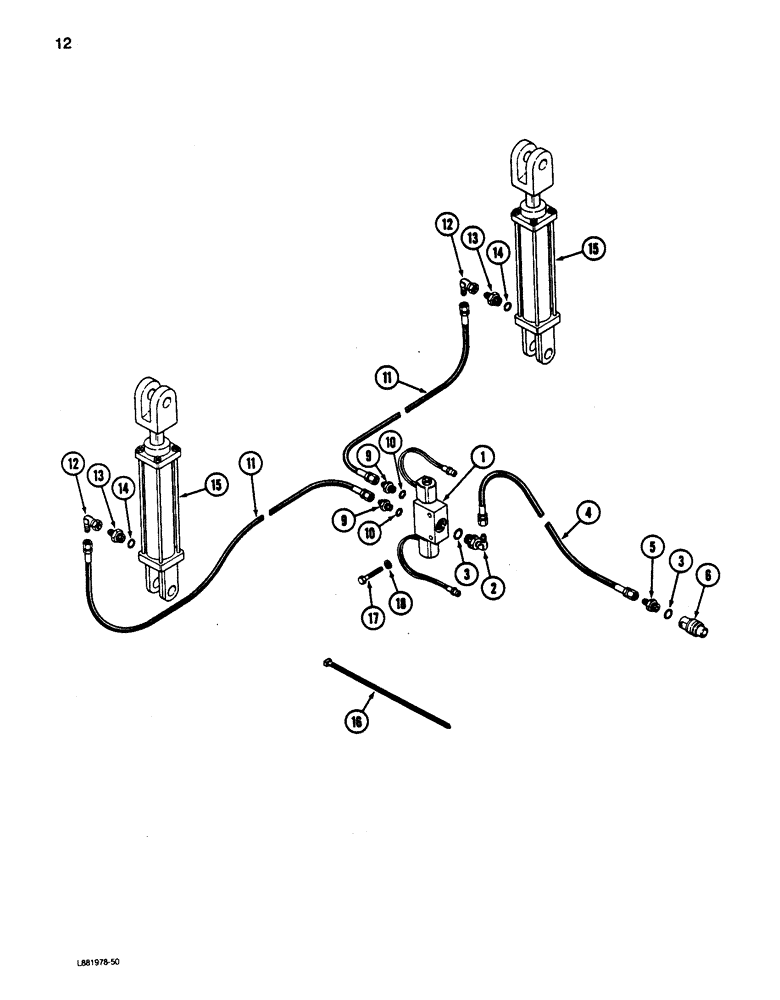

Запчасти Case IH 5200 (12) - MARKER HYDRAULICS, ELECTRONIC SELECTOR

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 23)

1шт.

2

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- reducer, 5/8 to 3/8 inch

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 33/64 inch OD

2шт.

4

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

6.35 mm ID x 1525.00 mm

1шт.

5

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

REDUCER - 5/8 to 3/8 inch

1шт.

6

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male

1шт.

9

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight

2шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

11

129768C1

HYDRAULIC HOSE

HOSE - hydraulic, 115 inch long

2шт.

11

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

HOSE - hydraulic, 165 inch long

2шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

2шт.

13

1263477C3

HYD CONNECTOR

CONNECTOR - restrictor, 15 foot grain drill

2шт.

13

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - swivel, 20 foot grain drill

2шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube

2шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 19 and 21)

2шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - hose retaining 14 in

4шт.

17

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
