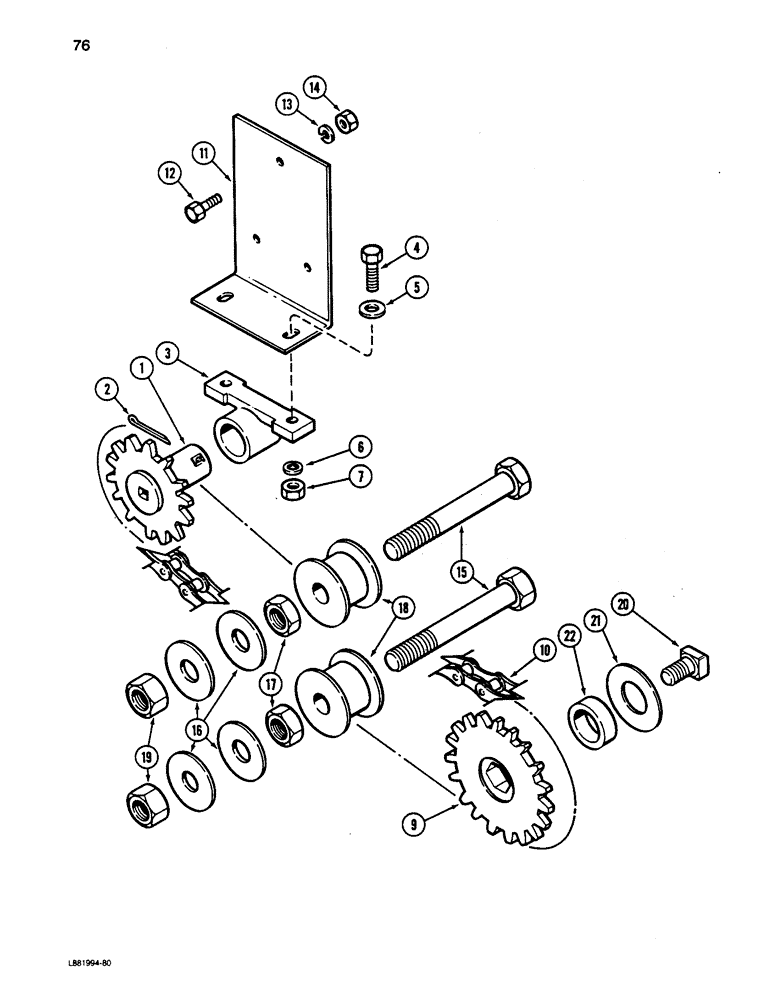

Запчасти Case IH 5200 (76) - GRASS SEED ATTACHMENT, SEED DRIVE

1

1263869C1

SPROCKET

- drive, 14 tooth

2шт.

2

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

3

816533C1

BRACKET

BEARING - sprocket

2шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

120376

NUT,5/16"-18, G5

4шт.

9

97755C1

SPROCKET

- drive, 19 tooth

2шт.

10

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (See Note)

2шт.

11

96264C1

BRACKET

- seed drive

2шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

15

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

16

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

8шт.

17

124847

COLLAR

- hex jam, 5/8 inch NC

4шт.

18

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

19

129-107

NUT,5/8"-11, G5

4шт.

20

21689R1

SCREW

BOLT - square head, 1/2 NC x 3/4 inch

4шт.

21

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- 1-1/16 x 2 x 7/64 inch

4шт.

22

1277812C1

SPACER

- 27 x 33 x 9 mm

4шт.

rac

8-3531

Issused April, 1988 Printed in U.S.A.

1шт.
