Запчасти Case IH 5200 (74) - GRASS SEED ATTACHMENT, GRASS FEED

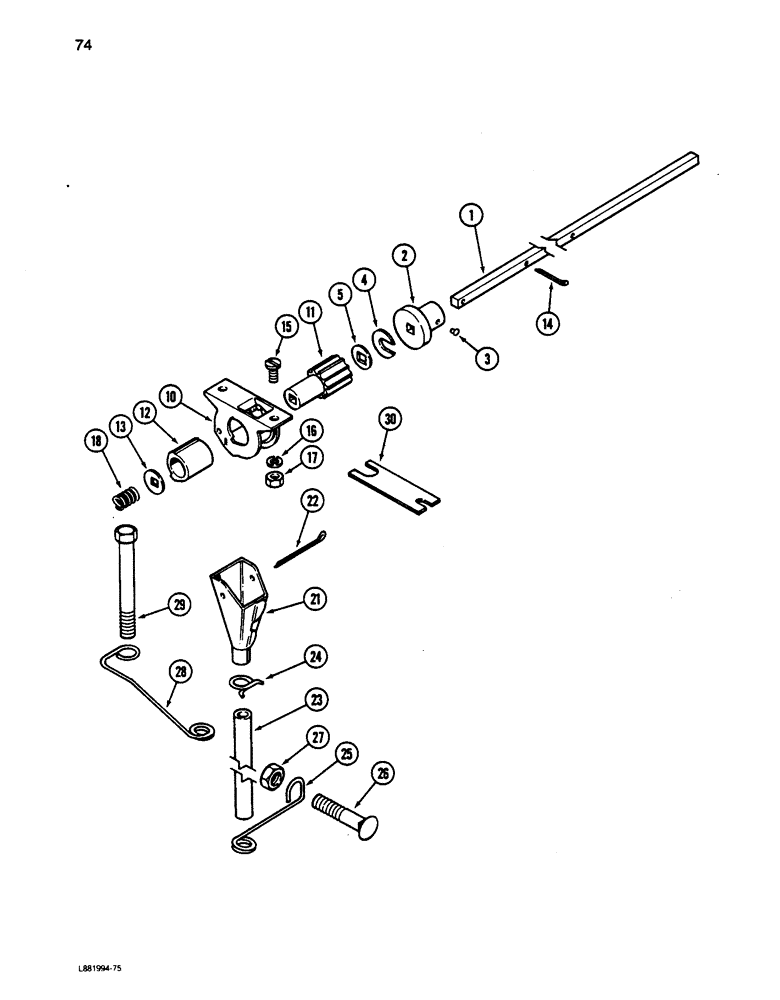

Схема запчастей Case IH 5200 - (74) - GRASS SEED ATTACHMENT, GRASS FEED
2
22
16
15
4
10
21
3
11
28
1
27
12
14
30
18
24
26
25
13
17
23
5
29

Артикул

Название

Примечание

Количество

1

95680C1

BAR

- feed shaft, 15 foot drill 7 inch spacing

2шт.

1

95681C1

BAR

- feed shaft, 15 foot drill 8 inch spacing

2шт.

1

95682C1

BAR

- feed shaft, 15 foot drill 10 inch spacing

2шт.

1

1279991C1

BAR

- feed shaft, 20 foot drill 7 inch spacing

2шт.

1

1263975C1

BAR

- feed shaft, 20 foot drill 8 inch spacing

2шт.

1

1263976C1

BAR

- feed shaft, 20 foot drill 10 inch spacing

2шт.

2

819227C1

SLEEVE

- feed shifter

2шт.

3

104056

RIVET

- 1/8 x 7/8 inch

2шт.

4

N32109

WASHER

- slotted, 11/32 x 7/8 x 1/64 inch

1шт.

5

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

- square hole, 11/32 x 3/4 x 1/64 inch

1шт.

600924R92

CUP ASSY.

CUP ASSEMBLY - grass seed

1шт.

10

600924R92

CUP ASSY.

CUP ASSEMBLY - feed

1шт.

11

601463R1

FINGER ASSY.

SHAFT - feed roll

1шт.

12

600923R2

BLOCK

COLLAR - feed cutoff

1шт.

13

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch

1шт.

14

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

15

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

17

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18

N32176

SPRING

- feed

1шт.

21

603817R3

TUBE

HOUSING - seed feeder tube

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE - feeder, 45-9/32 inch (1 150 mm) (Order 997790R1, Serial Range: cut-length)

1шт.

24

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP - seed tube (Relaces 603699R2)

1шт.

25

1263691C1

HOOK

- tube

1шт.

ref #25 (P/N 1263691C1) - should have a 90 degree bend in middle

1шт.

26

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - round head square neck, 1/2 NC x 2 inch

1шт.

27

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

28

1263690C2

CLIP

SPRING .135WR YZD

1шт.

29

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

30

818183C1

PROTECTIVE COVER

BRACKET - feed cover

1шт.

22

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

Выбрано товаров: 31
