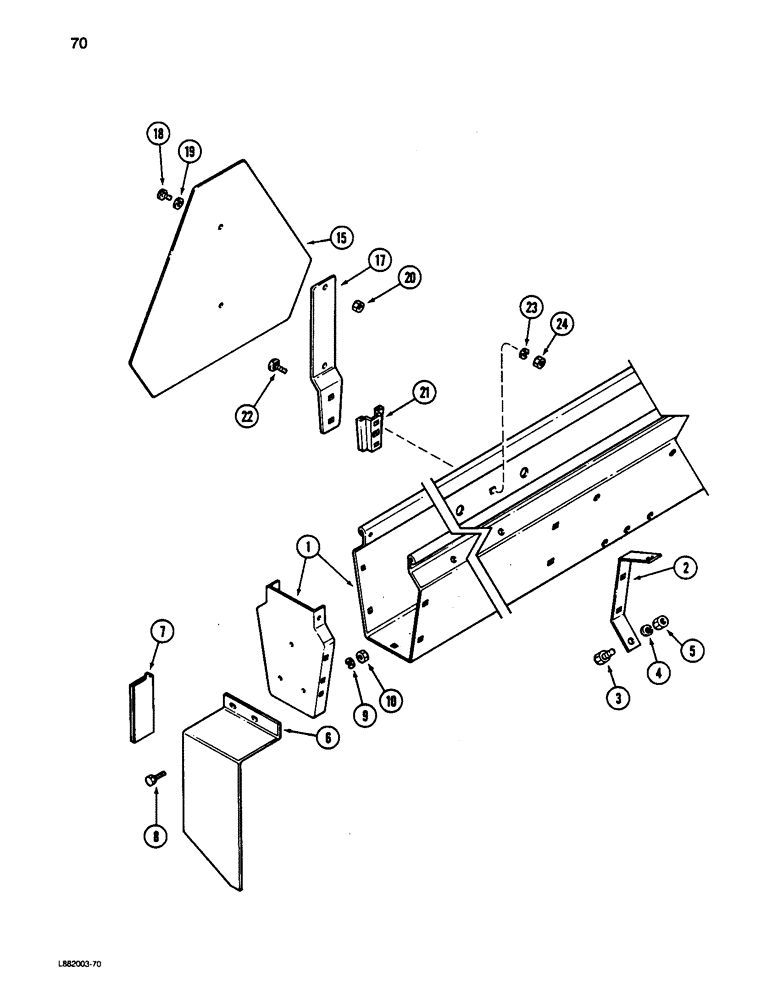

Запчасти Case IH 5200 (70) - GRASS SEED ATTACHMENT, HOPPER SUPPORT

1

REF

INSTRUCTION

HOPPER ASSEMBLY - grass seed (See Page 69)

1шт.

2

815636C1

BRACKET

BRACE - hopper supporrt, 15 foot drill

3шт.

2

815636C1

BRACKET

BRACE - hopper support, 20 foot drill

4шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

120377

NUT,3/8" - 16, Gr 5

1шт.

6

97644C1

GUARD

- chain, left (Includes Ref. 7)

1шт.

6

97645C1

GUARD ASSY.

GUARD - chain, right (Shown)

1шт.

7

1284374C1

REFLECTOR,Reflector Red

- red

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

120376

NUT,5/16"-18, G5

1шт.

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

15

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

DECAL - slow moving vehicle (See Page 79)

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - emblem support , SMV

1шт.

18

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

- round head slotted, No. 10-24 x 1/2 inch , SMV

2шт.

19

120391

WASHER,#10

- flat, 13/64 x 9/16 x 1/16 inch , SMV

2шт.

21

398976R1

BRACKET

- mounting , SMV

1шт.

22

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch , SMV

2шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, , SMV 5/16"

2шт.

24

120376

NUT,5/16"-18, G5

SMV 5/16"-18, G5

2шт.
