Запчасти Case IH 5200 (02) - ELECTRICAL SYSTEM

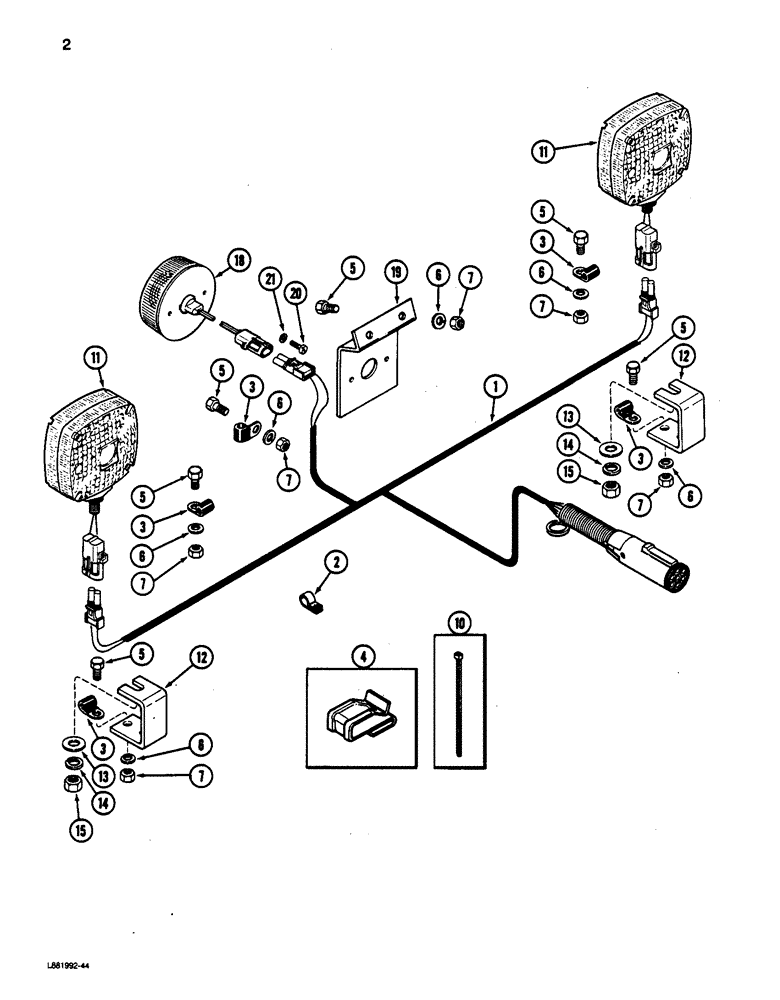

Схема запчастей Case IH 5200 - (02) - ELECTRICAL SYSTEM
13
4
3
5
2
12
14
3
6
15
6
7
7
3
3
19
7
8
3
11
6
7
14
12
5
5
5
5
7
21
11
5
13
18
6
10
20
15
7
1
6

Артикул

Название

Примечание

Количество

1

92061C1

HARNESS

- safety lighting

1шт.

2

299406C1

CLAMP,7/16", Insul, 3/8" Bolt

- retaining:

3шт.

3

366460R1

CABLE CLIP

CLIP - harness retaining

12шт.

4

92144C1

CABLE CLIP

CLIP - retaining

26шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 10 3/8"

1шт.

7

120377

NUT,3/8" - 16, Gr 5

10шт.

10

869707C1

STRAP,368.3mm L

- retaining

10шт.

11

REF

INSTRUCTION

LAMP ASSEMBLY - turn signal (See Page 5)

2шт.

12

1333837C1

BRACKET

- lamp mounting

2шт.

13

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 7/64 inch

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

129-125

NUT,1/2"-20, G5

2шт.

18

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Page 5)

1шт.

19

1333836C1

BRACKET

- lamp mounting

1шт.

20

27017R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head cross recess, No. 10 x 3/4 inch

2шт.

21

178378

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal/external shakeproof, No. 10

2шт.

Выбрано товаров: 17
