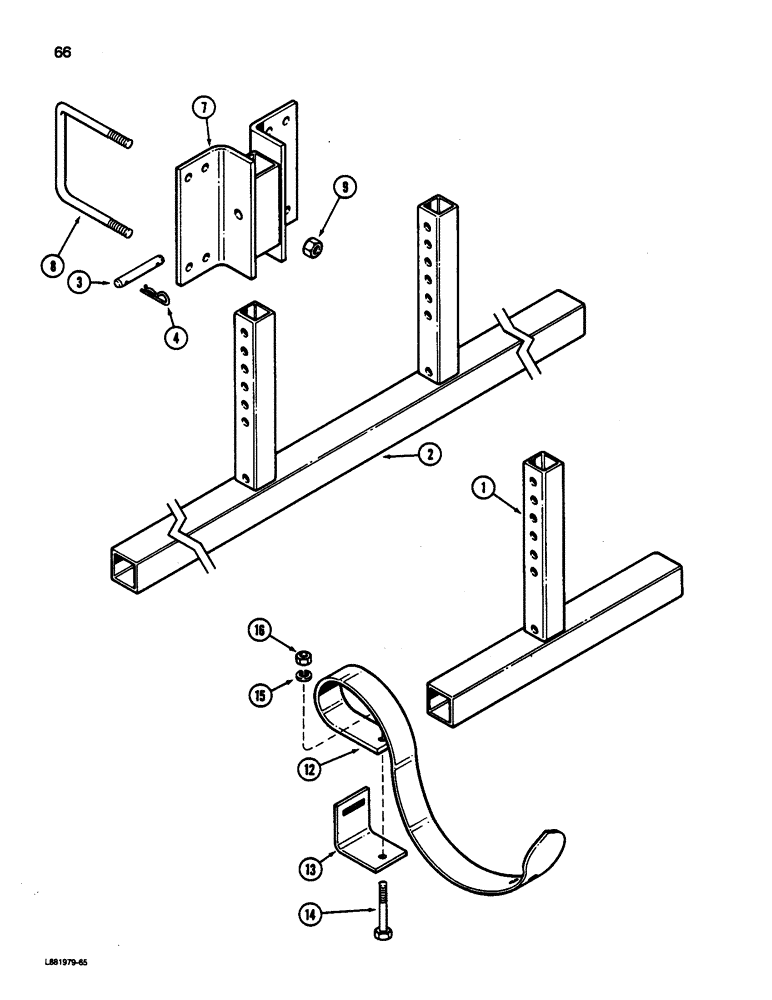

Запчасти Case IH 5200 (66) - TRACK ERASER

1

91306C1

TUBE,255, 137 mm L

FRAME ASSEMBLY - tine support, short

2шт.

2

91290C1

TUBE,610, 450 mm L

FRAME ASSEMBLY - tine support, long

2шт.

3

25128R1

PIN,5/8" x 3 3/4"

PIN - straight, 5/8 x 3-3/4 inch

1шт.

4

520175R1

CLIP

PIN - hair

1шт.

7

91287C1

SUPPORT

- track eraser

1шт.

8

1250813C1

U-BOLT

- 5/8 inch NC (Quantity per support)

2шт.

9

129-107

NUT,5/8"-11, G5

(Quantity per support) 5/8"-11, G5

2шт.

13

1256325C1

ANGLE

CLAMP - shank (Quantity per shank)

1шт.

14

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch (Quantity per shank)

1шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Quantity per shank) 1/2"

1шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Quantity per shank) 1/2"-13, G5

1шт.
