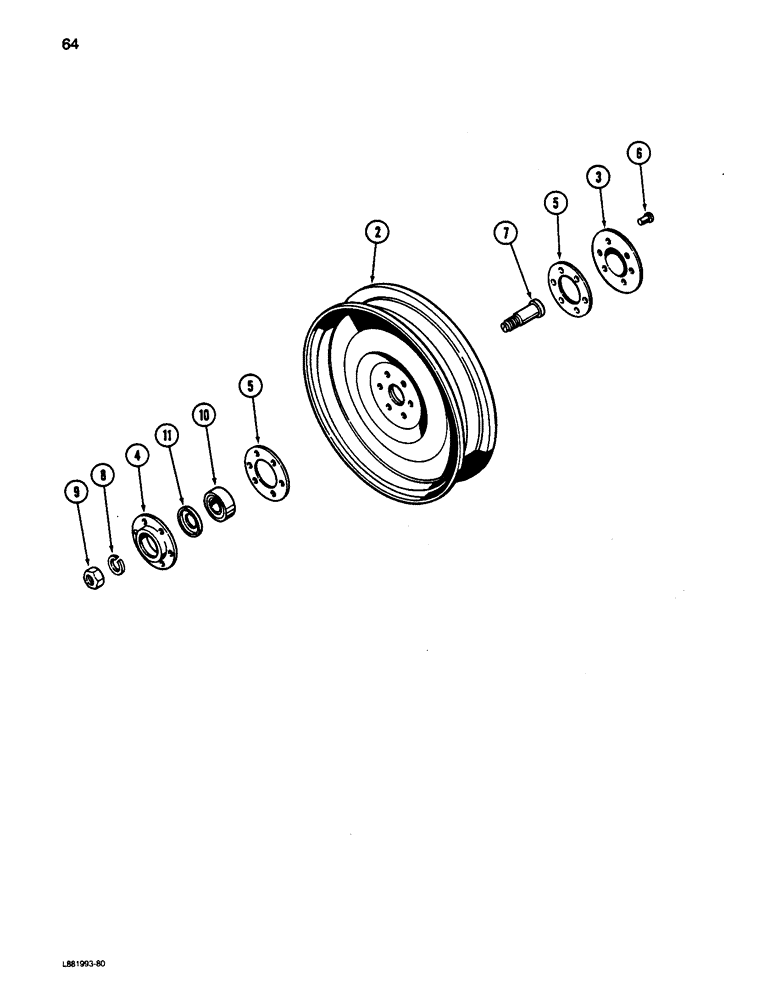

Запчасти Case IH 5200 (64) - PRESS WHEEL

819786C91

WHEEL ASSY.

WHEEL ASSEMBLY - press

1шт.

2

1279405C1

RIM

- wheel

1шт.

3

602990R1

CAP

- hub

1шт.

4

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

5

602992R1

GASKET

- bearing retainer

2шт.

6

990839R91

RIVET

- button head, 1/4 x 5/8 inch

6шт.

7

602987R1

BOLT

BOLT - wheel mounting

1шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

425-1110

NUT,5/8"-18, G5

- hex, 5/8 inch NF

1шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- wheel

1шт.

11

602994R1

FLANGE

- seal

1шт.
