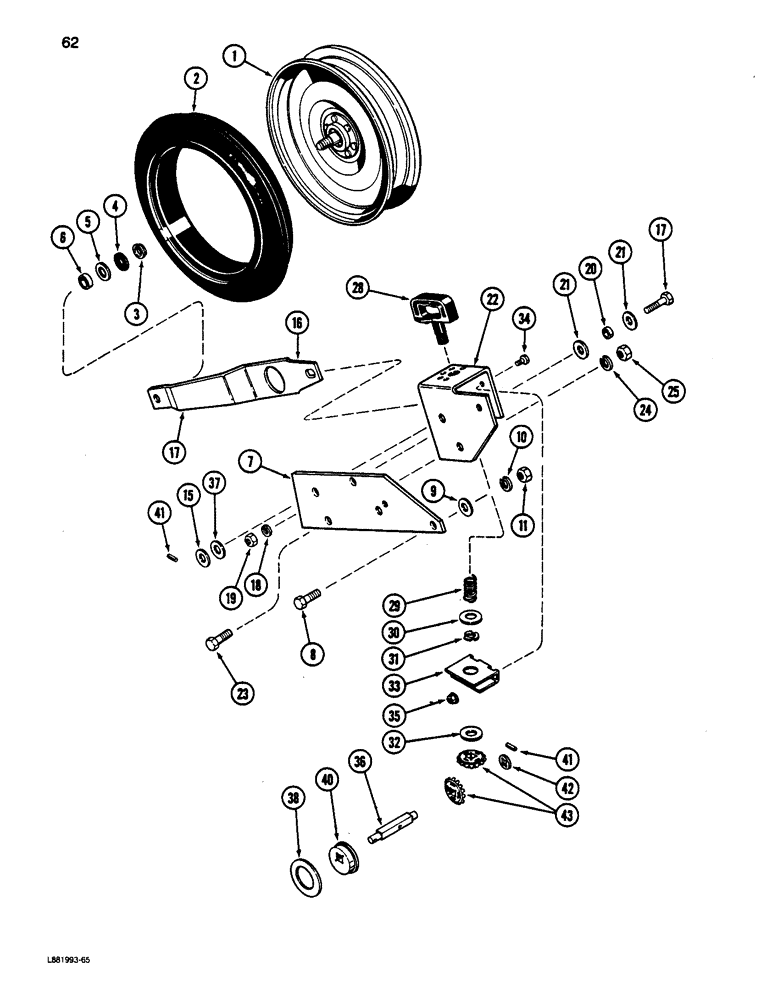

Запчасти Case IH 5200 (62) - DEPTH PRESS WHEEL
№
Артикул
Название
Примечание
Количество
1973102C1
WHEEL
ASSEMBLY - press
1шт.
1
REF
INSTRUCTION
WHEEL ASSEMBLY - press (See Page 65)
1шт.
2
842666C1
TYRE/TIRE
TIRE - press wheel
1шт.
3
602988R1
SPACER
- seal retainer
1шт.
4
464628R1
SEAL
- dirt
1шт.
5
591714R1
WASHER
- flat, 23/32 x 1-1/4 x 3/64 inch
1шт.
6
610993R1
WASHER
WASHER - wheel spacer
1шт.
7
819518C2
BAR
PLATE - support
1шт.
8
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
9
178374R1
WASHER
- flat, 17/32 x 1-1/4 x 3/64 inch
2шт.
10
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
11
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
15
178374R1
WASHER
- flat, 17/32 x 1-1/4 x 1/16 inch
1шт.
16
819446C1
DRAWBAR
- wheel
1шт.
17
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
18
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
19
120377
NUT,3/8" - 16, Gr 5
1шт.
20
819596C1
SPACER, RING
SPACER - drawbar pivot
1шт.
21
477589R1
WASHER
- flat, 13/32 x 1-1/2 x 7/64 inch
2шт.
22
819519C1
HITCH BRACKET
BRACKET - sector index
1шт.
23
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
1шт.
24
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
25
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
28
819532C1
HANDLE
- wheel adjusting
1шт.
29
819592C1
SPRING
- handle
1шт.
30
467750R1
WASHER
- flat, 25/32 x 1-1/2 x 7/64 inch
1шт.
31
819678C1
RING
- handle retaining
1шт.
32
467750R1
WASHER
- flat, 25/32 x 1-1/2 x 7/64 inch
1шт.
33
819988C1
SUPPORT
- adjusting gear
1шт.
34
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
35
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
- hex flange lock, 1/4 inch NC
2шт.
36
819531C1
PIN,12.7mm OD x 111mm L
- gear support
1шт.
37
22265R1
WASHER
- flat, 17/32 x 1-1/4 x 1/32 inch
1шт.
38
593438R1
WASHER,48.51mm ID x 68.58mm OD x 3.04mm Thk
- cam spacer
1шт.
40
819526C1
CAM
- eccentric
1шт.
41
19928R1
PIN,3/16" x 3/4", Coiled
2шт.
42
20731R1
SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole
- square hole, 17/32 x 1 x 1/16 inch
1шт.
43
819520C1
GEAR
- wheel adjusting
2шт.
Выбрано товаров: 38
