Запчасти Case IH 5200 (60) - COUNTER

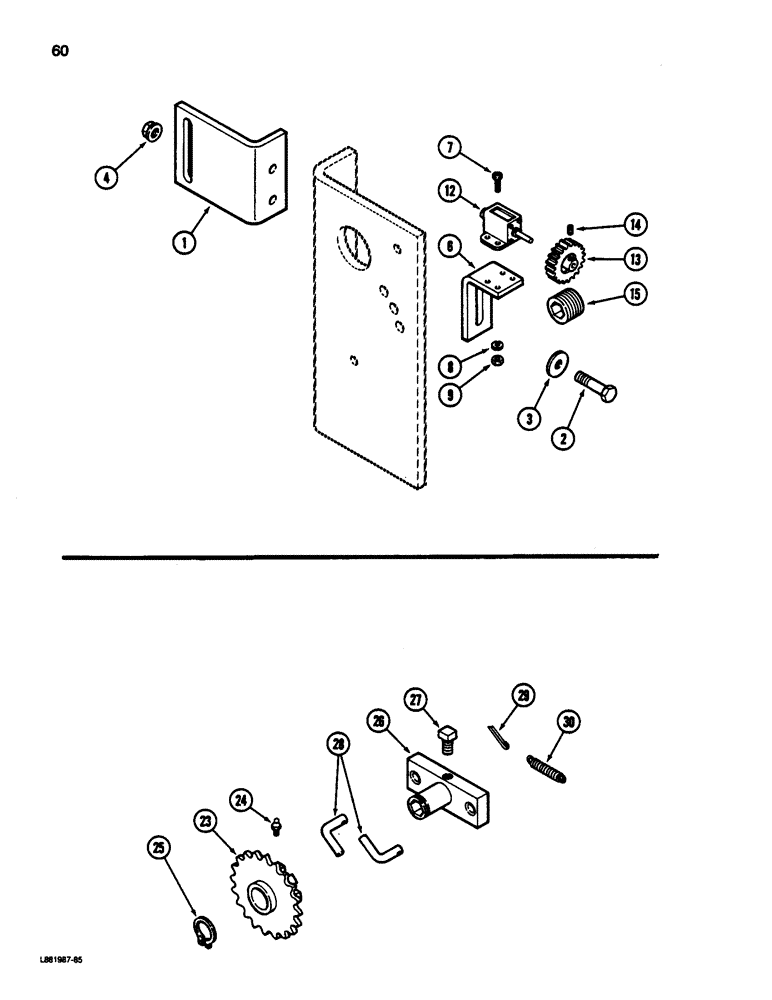

Схема запчастей Case IH 5200 - (60) - COUNTER
14
8
12
25
28
3
24
26
29
7
2
6
9
4
1
13
30
15
23
27

Артикул

Название

Примечание

Количество

1

90845C1

BAR

BRACKET - drive idler

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

4

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- flange lock, 1/2 inch NC

2шт.

6

95725C1

BRACKET

- acreage counter

1шт.

7

26962R1

SCREW

- pan head, No. 5-40 x 3/4 inch

4шт.

8

426243

LOCK WASHER,#5

Washer, Lock, #5

4шт.

9

129-14

NUT,#5-40

4шт.

12

1333795C1

COUNTER

- acreage

1шт.

13

95708C2

GEAR

- counter, 38 tooth, 15 foot drill

1шт.

13

95707C2

GEAR

- counter, 28 tooth, 20 foot drill

1шт.

14

178-8B91

SCREW - slotted cup point, set, No. 8-32 x 1/4 inch

1шт.

15

95706C1

GEAR

- acreage counter

1шт.

1277925C91

RATCHET

SPROCKET ASSEMBLY - drive ratchet, left (Includes Ref. 23 through 30)

1шт.

1277926C91

PINION

SPROCKET ASSEMBLY - drive ratchet, right

1шт.

23

1277993C1

SPROCKET ASSY.

SPROCKET - rachet, 23 tooth

1шт.

24

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16", Ratchet sprocket

1шт.

25

152450R1

SNAP RING,#125, Ext

Ring, Snap, , ratchet sprocket #125, Ext

1шт.

26

1279873C1

BAR ASSY.

COUPLER - ratchet , SPROCKET

1шт.

27

28066R1

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - square head cup point, set, 1/2 NC x 3/4 inch , RATCHET SPROCKET

2шт.

28

1277994C1

PIN,11.11mm OD

-"L" type, Ratchet sprocket

2шт.

29

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , Ratchet sprocket 3/16" x 1"

2шт.

30

1277995C1

SPRING

- rachet , SPROCKET

2шт.

rac

8-3531

Issused April, 1988 Printed in U.S.A. , RATCHET SPROCKET

1шт.

Выбрано товаров: 24
