Запчасти Case IH 5200 (56) - WHEEL DRIVE

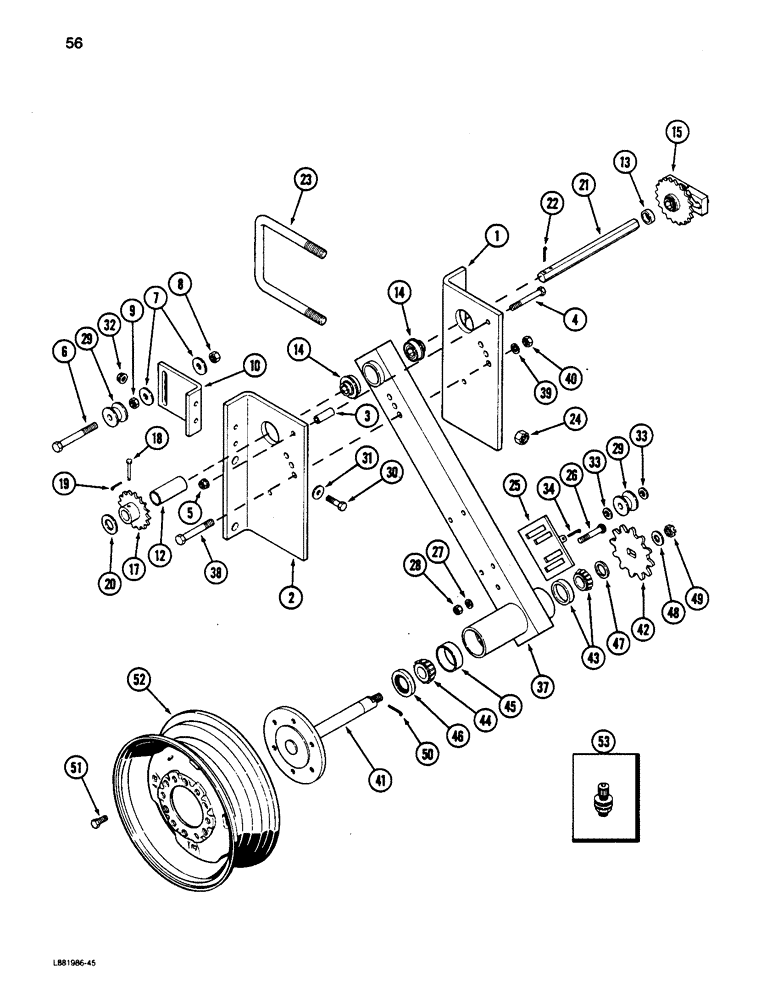

Схема запчастей Case IH 5200 - (56) - WHEEL DRIVE
46
24
50
13
29
51
39
21
53
41
49
14
10
52
8
30
18
28
9
1
47
19
29
27
20
43
3
31
40
23
25
7
48
4
37
45
15
33
44
26
5
17
34
38
14
6
2
33
22
42
32
12

Артикул

Название

Примечание

Количество

1

1279885C1

SUPPORT

- drive wheel, 1eft

2шт.

2

1279886C1

SUPPORT

- drive wheel, right

2шт.

3

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

4

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch

4шт.

5

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- flange lock, 1/2 inch NC

4шт.

6

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

2шт.

7

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

4шт.

8

129-107

NUT,5/8"-11, G5

2шт.

9

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

2шт.

10

90845C1

BAR

BRACKET - idler

1шт.

12

95727C1

SPACER

- wheel shaft, left drive wheel

1шт.

12

1279890C1

SPACER

- wheel shaft, right drive wheel

1шт.

13

1277812C1

SPACER

- rachet sprocket

2шт.

14

134181C91

BALL BEARING,1.218" ID x 2.125" OD x 1"

- shaft pivot

4шт.

15

REF

INSTRUCTION

SPROCKET ASSEMBLY - drive ratchet (See Page 61)

2шт.

17

1279903C1

SPROCKET

- 17 tooth

2шт.

18

21916R1

PIN

- clevis, 1/4 x 2 inch

2шт.

19

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

2шт.

20

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

2шт.

21

1279887C1

BAR

SHAFT - wheel

2шт.

22

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

23

493841R1

U-BOLT

- 7/8 inch NC

1шт.

24

129-109

NUT,7/8"-9, G5

8шт.

25

1279011C2

LARGE PLATE

PLATE - wheel drive idler

2шт.

26

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - round head square neck, 1/2 NC x 3 inch

4шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

29

1277726C1

ROLLER,48mm OD x 34mm L

- id1er

2шт.

30

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

31

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

32

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- flange lock, 1/2 inch NC

4шт.

33

22198R1

WASHER

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

34

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

37

1279883C1

TUBE,700 mm Length

ASSEMBLY - drive wheel

2шт.

38

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

39

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

129-107

NUT,5/8"-11, G5

2шт.

41

134117C3

SHAFT

- drive wheel

2шт.

42

1277736C1

SPROCKET

- drive, 12 tooth

2шт.

43

1264321C91

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

BEARiNG ASSEMBLY - drive wheel, outer

2шт.

44

1264322C91

ROLLER BEARING

CONE - drive wheel

2шт.

45

50213V

BEARING CUP

CUP - drive wheel, inner

2шт.

46

137231C1

SEAL

- drive wheel

2шт.

47

134120C3

SPACER

- sprocket

2шт.

48

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

49

427637

SLOTTED NUT,3/4"-10, G5

NUT - hex slotted, 3/4 inch NC

2шт.

50

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

51

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- special, 1/2 NF x 1-1/2 inch

12шт.

52

481344R91

WHEEL

- drive

2шт.

53

810768C1

VALVE

- whee1

2шт.

Выбрано товаров: 50
