Запчасти Case IH 5200 (54) - GRAIN DRIVE

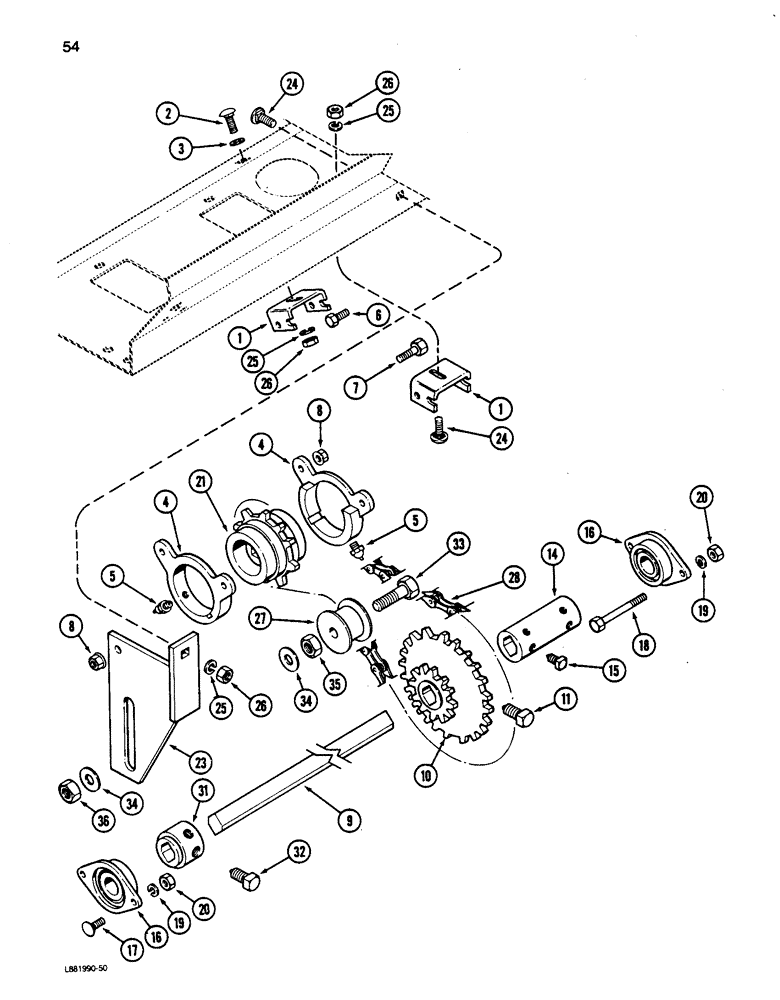

Схема запчастей Case IH 5200 - (54) - GRAIN DRIVE
8
4
6
24
19
20
35
21
20
25
32
4
25
31
28
33
18
10
34
9
17
36
24
23
14
15
25
11
16
26
26
5
1
19
27
5
1
7
2
34
8
16
26
3

Артикул

Название

Примечание

Количество

1

91262C1

BRACKET

- grain feed shaft (4 used on 20 foot)

2шт.

2

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch (4 used on 20 foot)

2шт.

3

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch (2 used on 20 foot)

1шт.

4

817458C1

HANGER

BRACKET - feedshaft drive (4 used on 20 foot)

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (4 used on 20 foot) 1/4"-28 NPT x .54" lg

2шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd (6 used on 20 foot)

3шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(2 used on 20 foot) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

8

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC (8 used on 20 foot)

4шт.

9

90938C1

BAR

SHAFT - main drive, 15 foot dri11

2шт.

9

1279949C1

BAR

SHAFT - main drive, 20 foot dri11

2шт.

10

1279892C1

SPROCKET

- drive, 12 and 24 tooth

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

11

28066R1

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - square head cup point, set, 1/2 NC x 3/4 inch (8 used on 20 foot) 6

1шт.

1279893C1

SPROCKET

- drive, 22 and 44 tooth (See Ref. 10)

2шт.

14

1254283C1

COUPLING

COUPLER - drive shaft

1шт.

15

22211R1

SCREW

- square head cup point, 3/8 NC x 1/2 inch

2шт.

16

134158C91

FLANGED BEARING

- drive shaft, 15 foot drill

6шт.

16

134158C91

FLANGED BEARING

- drive shaft, 20 foot drill

8шт.

17

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

18

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

8шт.

19

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

20

120376

NUT,5/16"-18, G5

12шт.

21

817457C1

SPROCKET

- grain drive, 9 tooth

1шт.

23

1279941C1

BRACKET

- idler

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

24

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

120377

NUT,3/8" - 16, Gr 5

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

28

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, feedshaft drive

1шт.

For service order (19) links from bulk P/N 569089R91 chain (10 ft roll), (1) P/N 1277928C91 connecting link and P/N 3-456929R91 offset link.

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

28

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, countershaft drive

1шт.

For service order (33) links from bulk 5690B9R91 chain (10 ft roll), P/N 1- 1277928C91 connecting link and P/N 7-456929R91 offset link.

1шт.

28

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, drive wheel

2шт.

For service order (55) links from bulk P/N 569089R91 chain (10 ft roll) and (1) P/N 1277928C91 connecting link.

1шт.

31

141572C2

COLLAR

- locking

2шт.

32

21689R1

SCREW

- square head cup point, set, 1/2 NC x 3/4 inch

4шт.

33

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

34

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

2шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

35

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, 5/8 inch NC

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.

36

129-107

NUT,5/8"-11, G5

1шт.

Items, quantities shown for 15 foot (4.6 m) drill. For 20 foot (6.1 m) drill quantities are double.

1шт.
