Запчасти Case IH 5200 (44) - GRAIN FEED

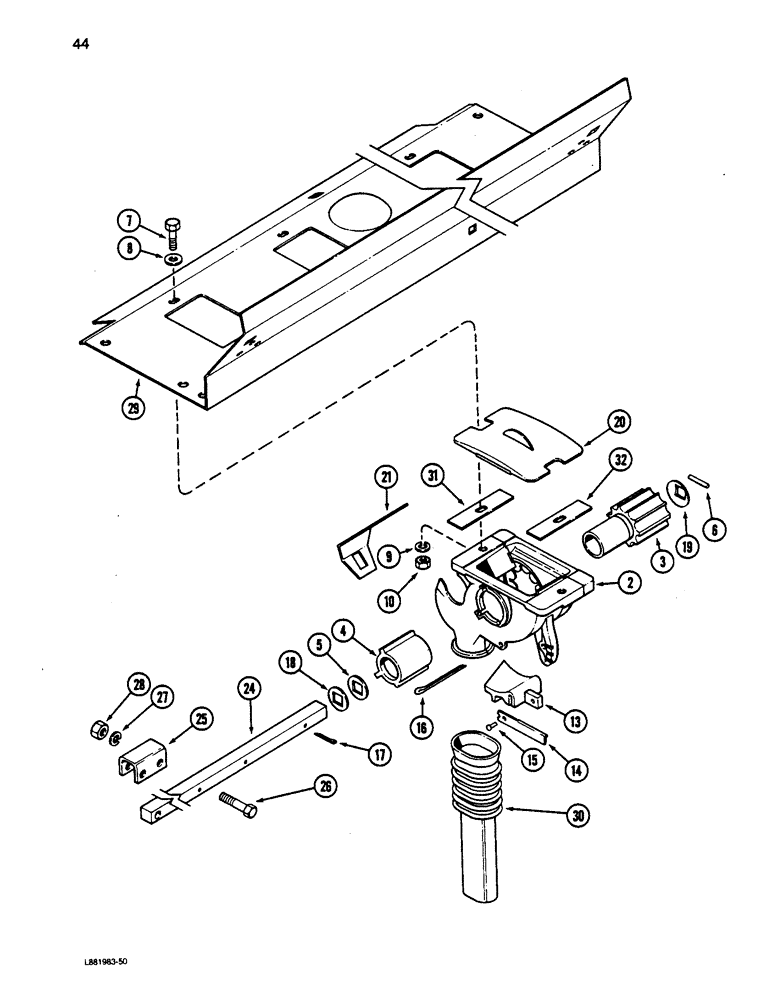

Схема запчастей Case IH 5200 - (44) - GRAIN FEED
15
20
31
26
13
4
8
3
29
30
28
21
6
19
25
10
14
5
17
7
16
9
18
24
27
2
32

Артикул

Название

Примечание

Количество

603816R93

CUP

ASSEMBLY - feed

1шт.

2

NSS

NOT SOLD SEPARAT

CUP ASSEMBLY - feed

1шт.

3

603111R1

ROLLER

SHAFT - fluted roll

1шт.

4

603112R1

BLOCK

- shutoff

1шт.

5

602106R1

SQ HOLE WASHER

- square hole, 21/32 x 1-11/64 x 1/64 inch

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

- roll, feed cup

1шт.

7

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

8

619855R1

WASHER

- flat, 11/32 x 3/4 x 1/16 inch

1шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

120376

NUT,5/16"-18, G5

1шт.

13

603108R21

BOTTOM

ASSEMBLY - feed cup dump

1шт.

14

603178R1

LATCH

- dump bottom

1шт.

15

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

16

132-104

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), 3/16" x 3"

1шт.

17

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

18

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

19

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

- feed cup spring

1шт.

20

818335C1

COVER ASSY

COVER ASSEMBLY - grain feed

1шт.

24

91007C1

BAR

- feed shaft, right, 15 foot drill 7 inch spacing

1шт.

24

90932C1

BAR

- feed shaft, left, 15 foot drill 7 inch spacing

1шт.

24

91008C1

BAR

- feed shaft, right, 15 foot drill 8 inch spacing

1шт.

24

90933C1

BAR

- feed shaft, left, 15 foot drill 8 inch spacing

1шт.

24

91009C1

BAR

- feed shaft, right, 15 foot drill 10 inch spacing

1шт.

24

90934C1

BAR

- feed shaft, left, 15 foot drill 10 inch spacing

1шт.

24

1279969C1

BAR

- feed shaft, 20 foot drill 7 inch spacing

2шт.

24

1263965C1

BAR

- feed shaft, 20 foot drill 8 inch spacing

2шт.

24

1263966C1

BAR

- feed shaft, 20 foot drill 10 inch spacing

2шт.

25

816133C1

CHANNEL

BRACKET - feed shaft coupling, 15 foot drill only

1шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

28

120377

NUT,3/8" - 16, Gr 5

1шт.

29

90935C1

BOTTOM

SECTION - grain bottom, 15 foot drill 7 inch spacing

1шт.

29

90936C1

ASSEMBLY

SECTION - grain bottom, 15 foot drill 8 inch spacing

1шт.

29

90937C1

BOTTOM

SECTION - grain bottom, 15 foot drill 10 inch spacing

1шт.

29

1279782C1

BOTTOM

SECTION - grain bottom, 20 foot drill 7 inch spacing

2шт.

29

1263955C1

BOTTOM

SECTION - grain bottom, 20 foot drill 8 inch spacing

2шт.

29

1263956C1

BOTTOM

SECTION - grain bottom, 20 foot drill 10 inch spacing

2шт.

30

90793C1

TUBE

- grain

1шт.

31

90987C1

BAR

- feed cup spacer

1шт.

32

90988C1

BAR

- feed cup spacer

1шт.

Выбрано товаров: 40
