Запчасти Case IH 5200 (42) - DISC FURROW OPENER, HEAVY DUTY

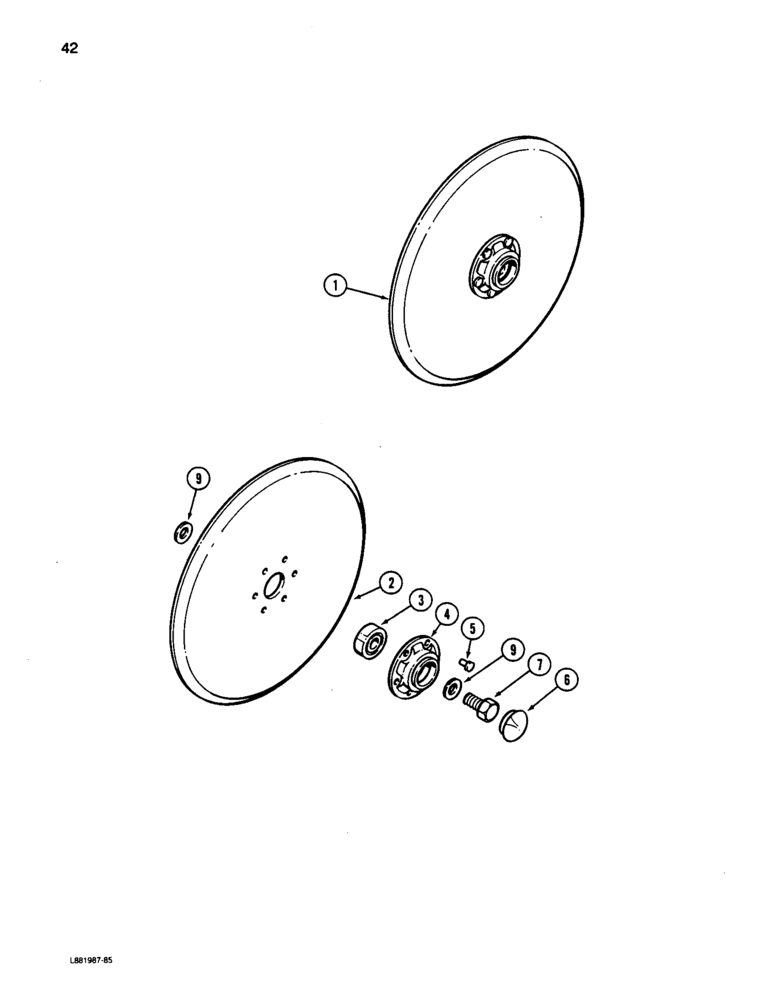

Схема запчастей Case IH 5200 - (42) - DISC FURROW OPENER, HEAVY DUTY
7
4
9
5
6
9
3
2
1

Артикул

Название

Примечание

Количество

1

90850C92

DISC

OPENER ASSY, 14" STD LEADING

2шт.

2

1337971C1

DISC

- furrow opener

1шт.

3

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

3

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

4

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

- bear ing

1шт.

5

28755R1

RIVET,FH, 1/4" x 9/16"

- flat head, 1/4 x 9/16 inch

6шт.

6

492709R1

CAP

- hub, dust

2шт.

7

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

7

28678R1

BOLT,Hex, 5/8" - 11 x 1 1/4", LH, Gr 5

- hex, 5/8 NC x 1-1/4 inch, left hand thread

1шт.

9

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- retaining

4шт.

Выбрано товаров: 10
