Запчасти Case IH 5200 (40) - DOUBLE DISC FURROW OPENER

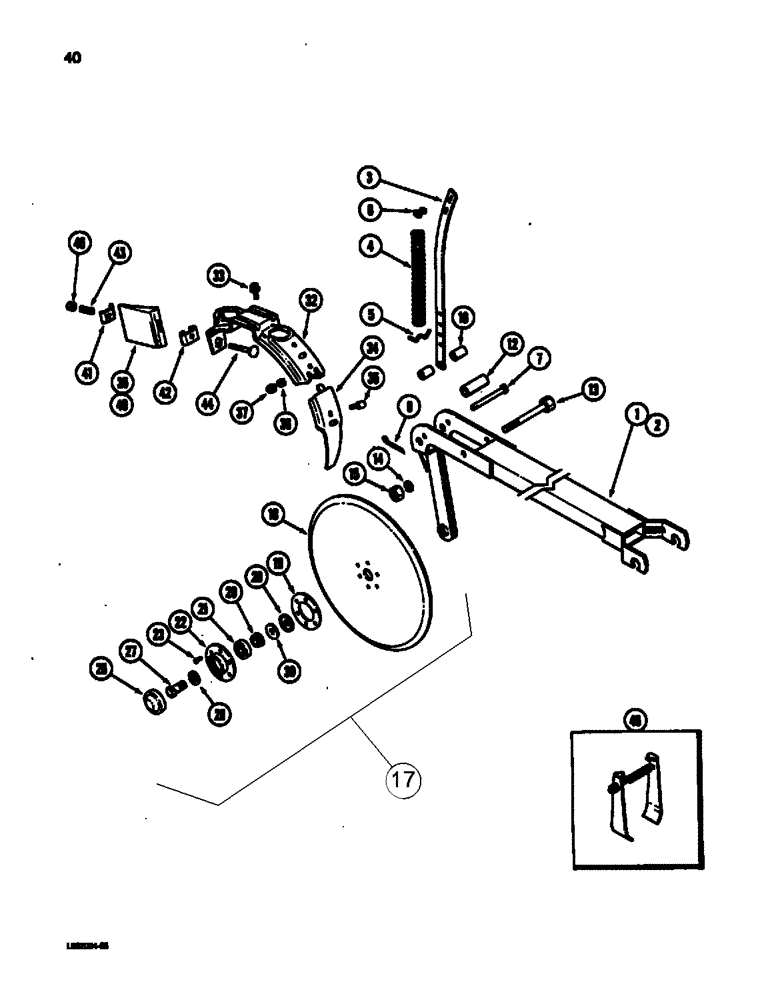

Схема запчастей Case IH 5200 - (40) - DOUBLE DISC FURROW OPENER
17
32
17
44
3
14
36
7
1
1
42
13
43
15
46
5
1
19
33
46
39
26
6
34
23
4
41
39
28
40
36
45
32
28
22
13
2
20
7
27
25
37
11

Артикул

Название

Примечание

Количество

1

1333802C1

DRAWBAR

- furrow opener, rear

1шт.

2

1279869C1

SUPPORT ASSY.

DRAWBAR - furrow opener, front

1шт.

3

1333773C2

BAR

- pressure spring , (replaces 1333773C1)

1шт.

4

6626-1

SPRING

- pressure

1шт.

5

F6366

LOCK

- pressure spring

1шт.

6

605964R1

CLIP

- special

1шт.

7

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - clevis

1шт.

8

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

12

1263794C1

SPACER

- drawbar

2шт.

13

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

16

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

- 3/8 x 1-1/16 inch

2шт.

17

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL (See Note)

2шт.

18

603013R2

PLOW DISC

DISC - furrow opener

2шт.

19

602992R1

GASKET

- disc

1шт.

20

602994R1

FLANGE

- seal

1шт.

21

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

22

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

23

990322R91

RIVET

- 1/4 x 1/2 inch

6шт.

26

603012R1

DUST CAP

CAP - dust

2шт.

27

603010R1

BOLT (SPREADER)

BOLT - disc retaining, left

1шт.

27

603011R1

BOLT (SPREADER)

BOLT - disc retaining, right (Shown)

1шт.

28

141706

WASHER

- internal shakeproof, 1 1/16 inch

2шт.

29

602988R1

SPACER

- seal retainer

2шт.

30

464628R1

SEAL

- dirt

2шт.

32

819280C2

BOOT

- disc

1шт.

33

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - hex washer head, 5/16 NC x 1 inch

2шт.

34

819281C2

GUARD ASSY.

GUARD - boot

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

36

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

120376

NUT,5/16"-18, G5

1шт.

38

843364C91

BLADE

SCRAPER ASSEMBLY - disc

1шт.

39

NSS

NOT SOLD SEPARAT

SCRAPER - disc, right

1шт.

40

NSS

NOT SOLD SEPARAT

SCRAPER - disc, left

1шт.

41

816668C1

LEDGER PLATE

SPREADER - scraper

1шт.

42

819808C1

HINGE

- scraper

1шт.

43

N62536

VALVE SPRING

SPRING - scraper

1шт.

44

27445R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 2-3/4 inch

1шт.

44

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

45

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

1шт.

46

819373C1

PACKAGE

BLADE ASSEMBLY - disc

1шт.

Выбрано товаров: 42
