Запчасти Case IH 5200 (38) - GRAIN FEED INDICATOR AND SHIFTER

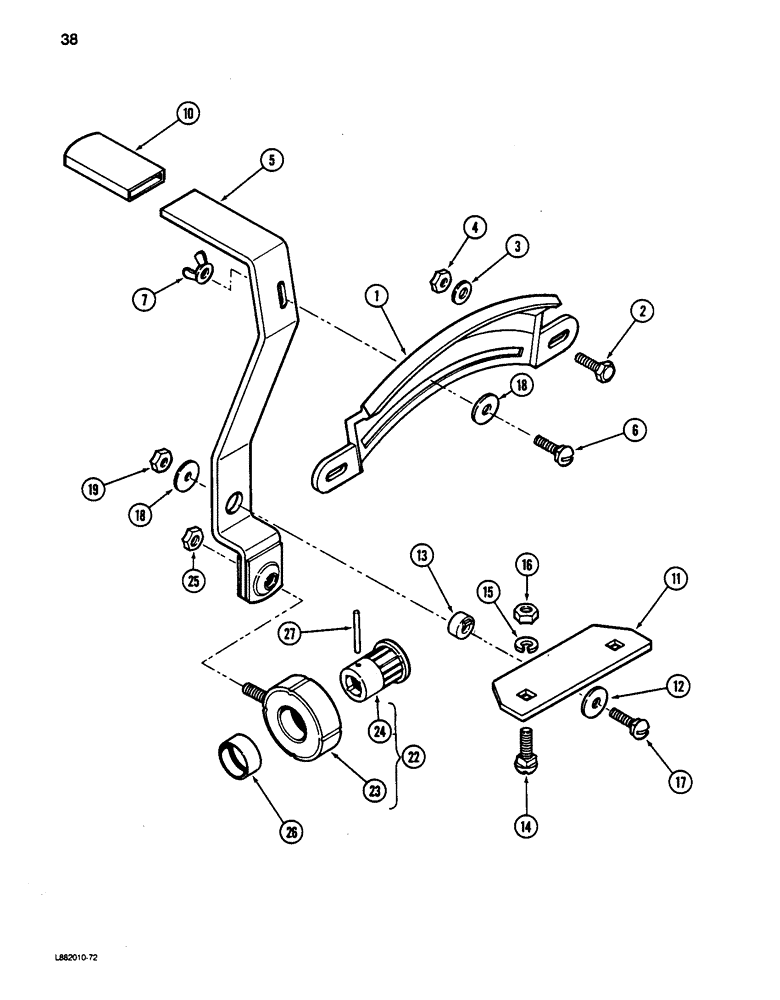

Схема запчастей Case IH 5200 - (38) - GRAIN FEED INDICATOR AND SHIFTER
27
19
16
11
25
23
15
18
12
22
26
4
2
6
18
24
1
14
5
17
7
10
13
3

Артикул

Название

Примечание

Количество

1

596907R1

INDICATOR

- grain feed

1шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC -x 1 inch

2шт.

3

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

4

120376

NUT,5/16"-18, G5

2шт.

5

1263998C1

LEVER ASSY.

LEVER - grain feed shifter

1шт.

6

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

7

142745

NUT, WING

NUT - wing, 5/16 inch NC

1шт.

10

842315C1

GRIP

KNOB - lever

1шт.

11

1279934C1

SUPPORT

shifter lever

1шт.

12

819263C1

WASHER

- shifter stop

1шт.

13

95889C1

BUSHING

- shifter stop

1шт.

14

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

120377

NUT,3/8" - 16, Gr 5

2шт.

17

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

1шт.

18

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

2шт.

19

124824

NUT,Hex, 5/16" - 18

- hex jam, 5/16 inch NC

2шт.

22

1279109C91

BEARING ASSY

ASSEMBLY - feed shifter

1шт.

23

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - feed shifter

1шт.

24

1279145C1

SPACER

- shifter bearing

1шт.

25

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

26

609389R1

SPACER

- shifter

1шт.

27

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

Выбрано товаров: 23
