Запчасти Case IH 5200 (36) - FOOTBOARD

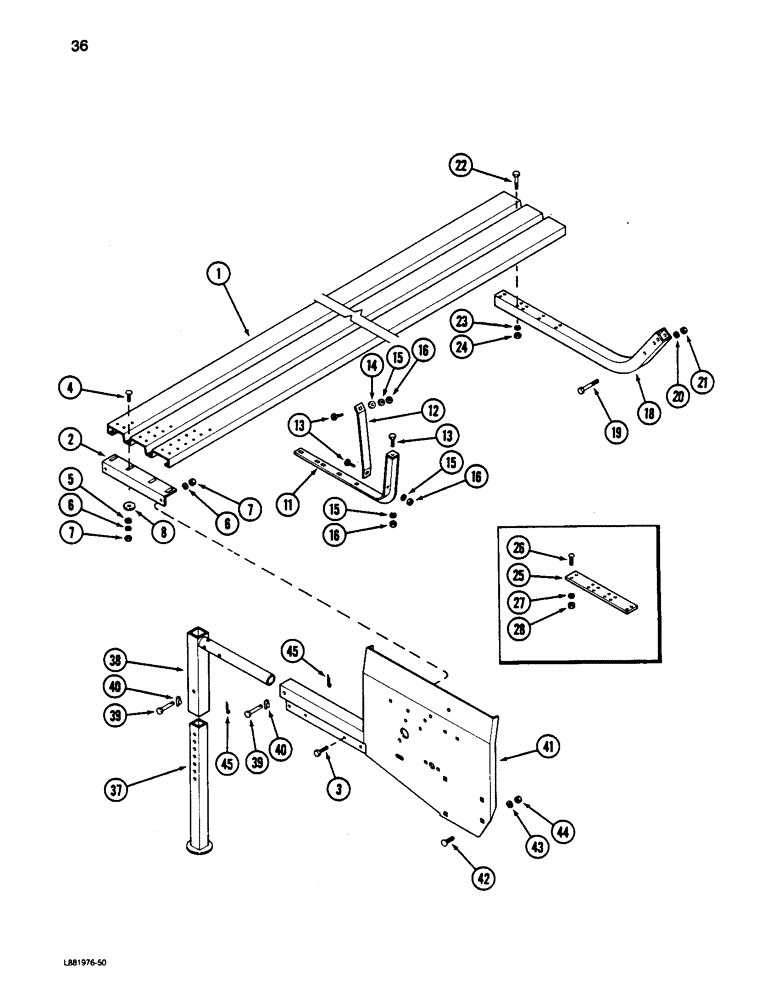

Схема запчастей Case IH 5200 - (36) - FOOTBOARD
7
18
1
3
16
15
44
11
12
43
7
19
24
25
23
45
45
16
41
5
39
40
8
13
6
4
38
22
14
21
28
15
26
16
40
13
27
20
42
37
2
15
8
39

Артикул

Название

Примечание

Количество

1

817420C2

FOOT REST

FOOTBOARD - grain drill, 15 foot drill

1шт.

1

817547C2

ASSEMBLY

FOOTBOARD - grain drill, 20 foot dri11

2шт.

2

1279695C1

ANGLE

BRACKET - footboard

2шт.

3

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

4

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch (24 used on 20 foot). 16

1шт.

5

619855R1

WASHER

- flat, 11/32 x 3/4 x 1/16 inch (22 used on 20 foot)

16шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, (28 used on 20 foot) 5/16"

20шт.

7

120376

NUT,5/16"-18, G5

(28 used on 20 foot) 5/16"-18, G5

20шт.

8

668569R1

WASHER

- flat, 11/32 x 1-1/2 x 7/64 inch

4шт.

11

1279896C1

SUPPORT

- footboard

1шт.

12

1279899C1

BRACKET

BRACE - footboard

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(4 used on 20 foot) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

13

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch (8 used on 20 foot)

4шт.

14

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch (4 used on 20 foot)

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (12 used on 20 foot) 3/8"

6шт.

16

120377

NUT,3/8" - 16, Gr 5

(12 used on 20 foot) 3/8"-16, G5

6шт.

18

91252C1

TUBE

- footboard center

1шт.

19

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch (2 used on 20 foot)

1шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (3 used on 20 foot) 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

(2 used on 20 foot) 1/2"-13, G5

1шт.

22

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

(8 used on 20 foot) Hex, 5/16"-18 x 2 1/2", G5

4шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, (8 used on 20 foot) 5/16"

4шт.

24

120376

NUT,5/16"-18, G5

(8 used on 20 foot) 5/16"-18, G5

4шт.

25

97566C1

BAR

SUPPORT - footboard extension, used with grass seed attachment

1шт.

26

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch (8 used on 20 foot):

6шт.

26

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch (18 used on 20 foot)

12шт.

26

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

(6 used on 20 foot) Hex, 5/16"-18 x 3", G5

4шт.

27

80681

LOCK WASHER,5/16"

WASHER, LOCK, (32 used on 20 foot) 5/16"

22шт.

28

120376

NUT,5/16"-18, G5

(32 used on 20 foot) 5/16"-18, G5

22шт.

37

1279976C1

SUPPORT

UPPORT - stand, lower

2шт.

38

90837C1

SUPPORT

UPPORT - stand, upper

2шт.

39

23171R1

SPLIT PIN/SAFETY PIN

IN - clevis, 1/2 x 3 inch , SUPPORT STAND

4шт.

40

A33497

LINCH PIN,4.76mm OD Pin

IN - clinch (Some drills equipped with quantity of 4) , SUPPORT STAND

2шт.

41

90818C1

BRACKET

RACKET - end support, left , STAND

1шт.

41

90819C1

BRACKET

RACKET - end support, right , STAND

1шт.

42

467657R1

BOLT,Short NK, 5/8"-11 x 1 1/2", G5, Full Thd

OLT - round head square neck, 5/8 NC x 1-1/2 inch , SUPPORT STAND

8шт.

43

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Support stand 5/8"

8шт.

44

280374

NUT,Hex, 5/8" - 11, Gr 5

UT - hex, 5/8 inch NC , SUPPORT STAND

8шт.

45

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , Used on drills equipped with 2 clinch pins, see Ref. 40, support stand 3/16" x 1"

2шт.

Выбрано товаров: 39
