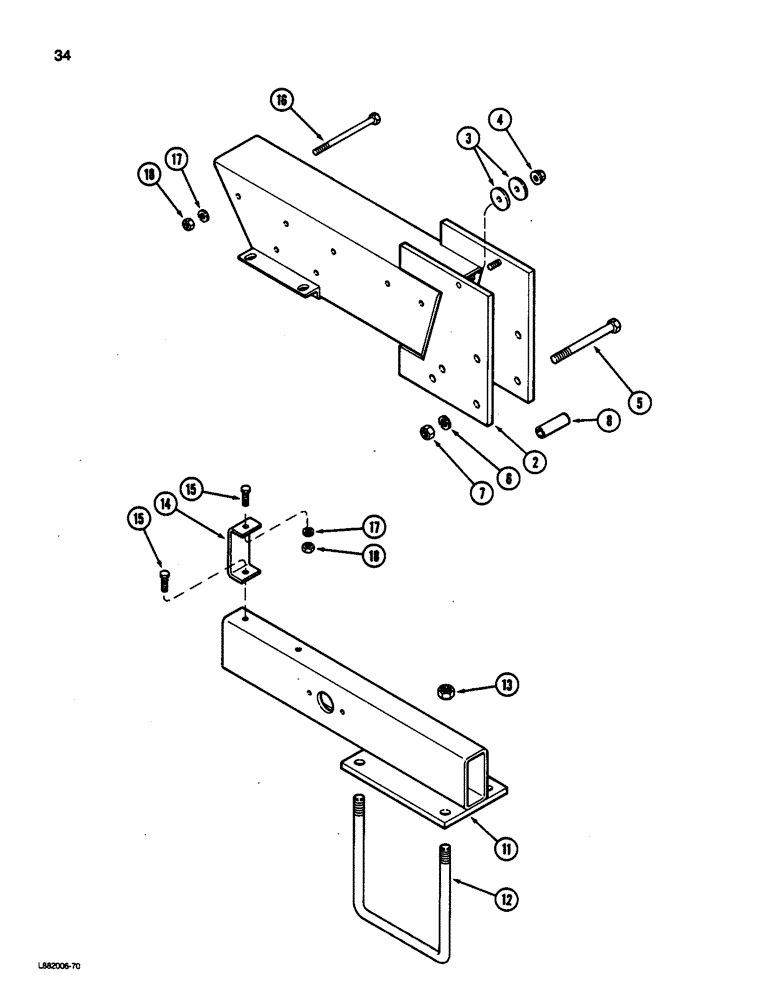

Запчасти Case IH 5200 (34) - HOPPER SUPPORT, GRAIN AND FERTILIZER

REF

INSTRUCTION

HOPPER ASSEMBLY - grain, 15 foot drill (See Page 29)

1шт.

REF

INSTRUCTION

HOPPER ASSEMBLY - grain, 20 foot drill (See Page 31)

2шт.

2

90783C1

BRACKET

- center support, 20 foot drill only

1шт.

3

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

4шт.

4

462256R1

NUT - flange lock, 3/8 inch NC

2шт.

5

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

1шт.

11

1279858C1

SUPPORT

- hopper

4шт.

12

1250813C1

U-BOLT

- 5/8 inch NC

8шт.

13

129-107

NUT,5/8"-11, G5

16шт.

14

1279610C1

SUPPORT

- hopper

8шт.

15

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

16шт.

16

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

7шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

23шт.

18

120377

NUT,3/8" - 16, Gr 5

23шт.
